ABB IRB 460 User Manual

4 Repair
4.6.6. Replacement of motor, axis 4, 1600ID
3HAC026660-001 Revision: C196
© Copyright 2006-2008 ABB. All rights reserved.
4.6.6. Replacement of motor, axis 4, 1600ID
NOTE!
After replacement of motors/motor in a manipulator, recalibration is required.

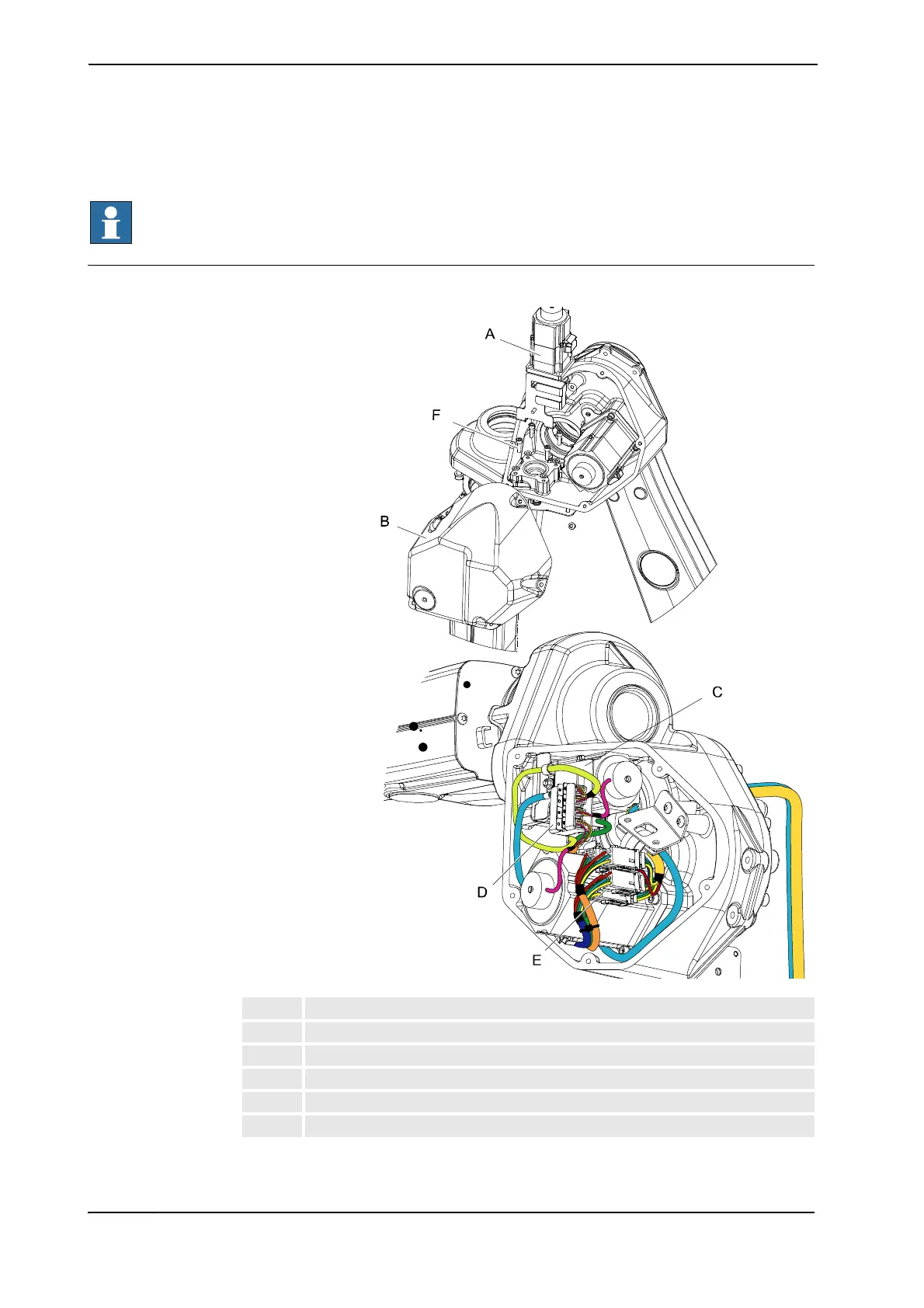

Location of motor
xx0700000017
A Motor, axis 4
B Cover, upper arm housing
C Connector plate
D Signal connector, R3.FB4
E Power connector, R3.MP4
F Attachment screw and washer, motor (4 pcs)
Continues on next page
