3.3.11 Inspecting the signal lamp (option)

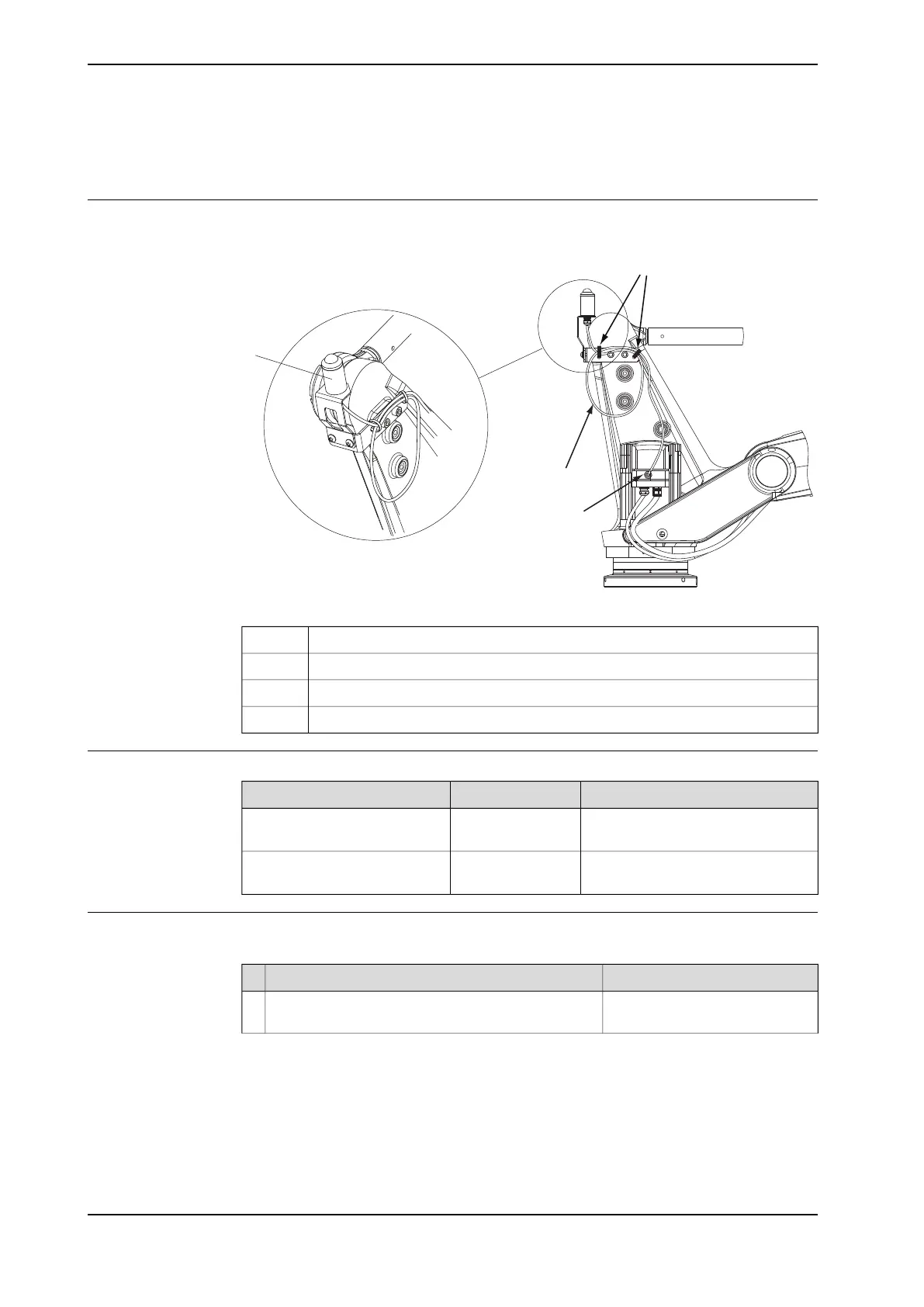

Location of signal lamp
The signal lamp is located as shown in this figure.
A
B
C
D
xx0500002466
Signal lampA
Cable straps, outdoorB
CableC
Connection point to cable glandD
Required tools and equipment
NoteArticle numberEquipment
To be replaced if damage is detected.See Spare part lists
on page 353.
Signal lamp kit
Content is defined in section Stand-
ard tools on page 347.
-Standard toolkit
Inspecting, signal lamp
Use this procedure to inspect the function of the signal lamp.
NoteAction
Inspect that signal lamp is lit when motors are put in
operation ("MOTORS ON").
1
Continues on next page
120 Product manual - IRB 660
3HAC025755-001 Revision: W
© Copyright 2006-2020 ABB. All rights reserved.
3 Maintenance
3.3.11 Inspecting the signal lamp (option)
