4.4.8 Replacing the complete lower arm
Location of lower arm

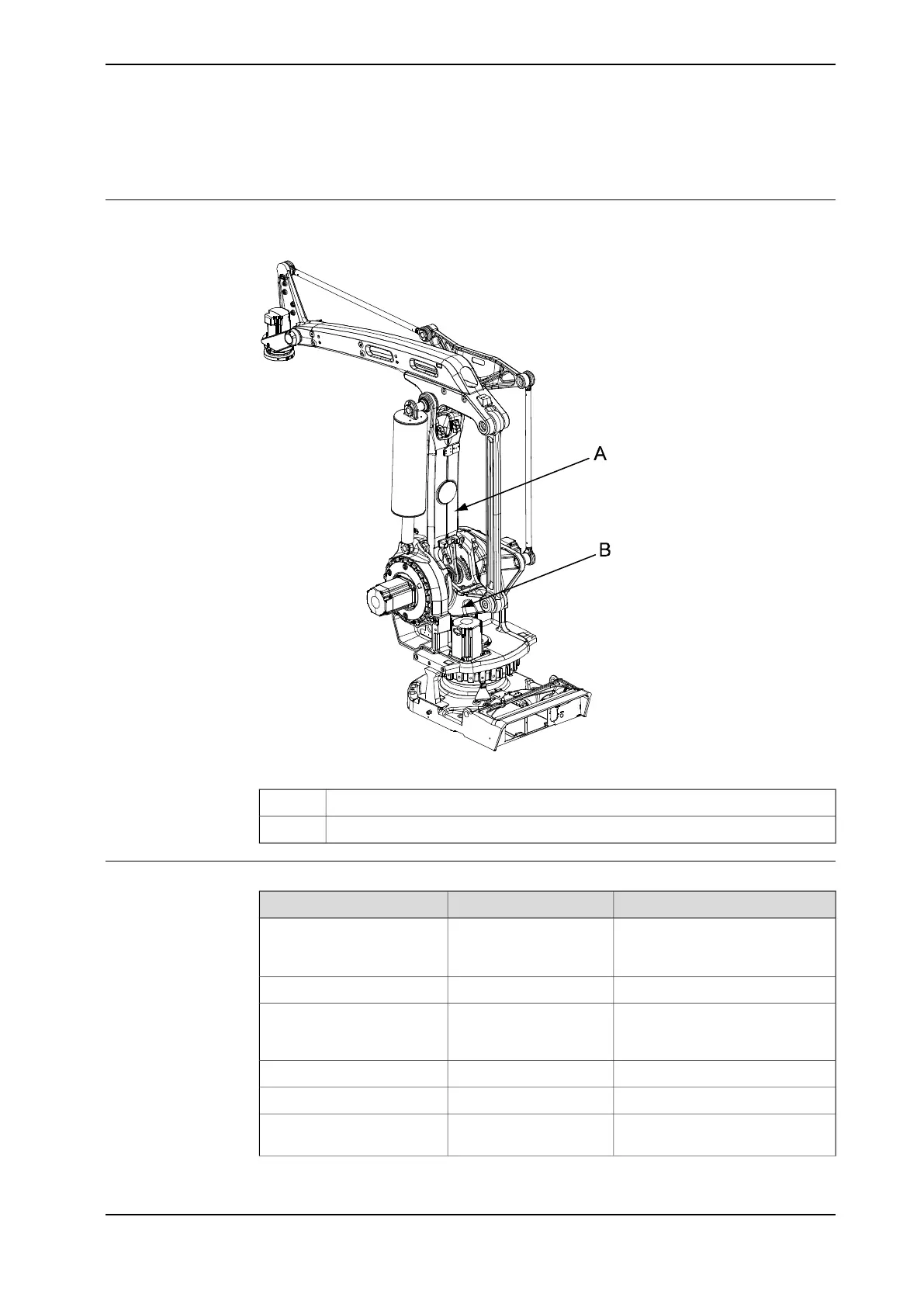

The complete lower arm is located as shown in the figure below.
xx0600002611
Lower armA
Parallel armB
Required equipment
NoteArt.no.Equipment, etc.
For spare part no. see:
• Spare part lists on
page 353.
Lower arm
Always change the sealing.Sealing, axes 2/3
Used to keep the axes 2/3 sealing
in place during refitting of lower
arm.
3HAC14446-1Guide sleeves
3HAC023132-001Crank
M16x90-Lock screw
3HAC8446-1Lifting tool, lower arm com-
plete
Continues on next page
Product manual - IRB 660 221
3HAC025755-001 Revision: W
© Copyright 2006-2020 ABB. All rights reserved.
4 Repair
4.4.8 Replacing the complete lower arm
