3.3 Inspection activities
3.3.1 Inspecting the oil level in axis-1 gearbox
Location of gearbox

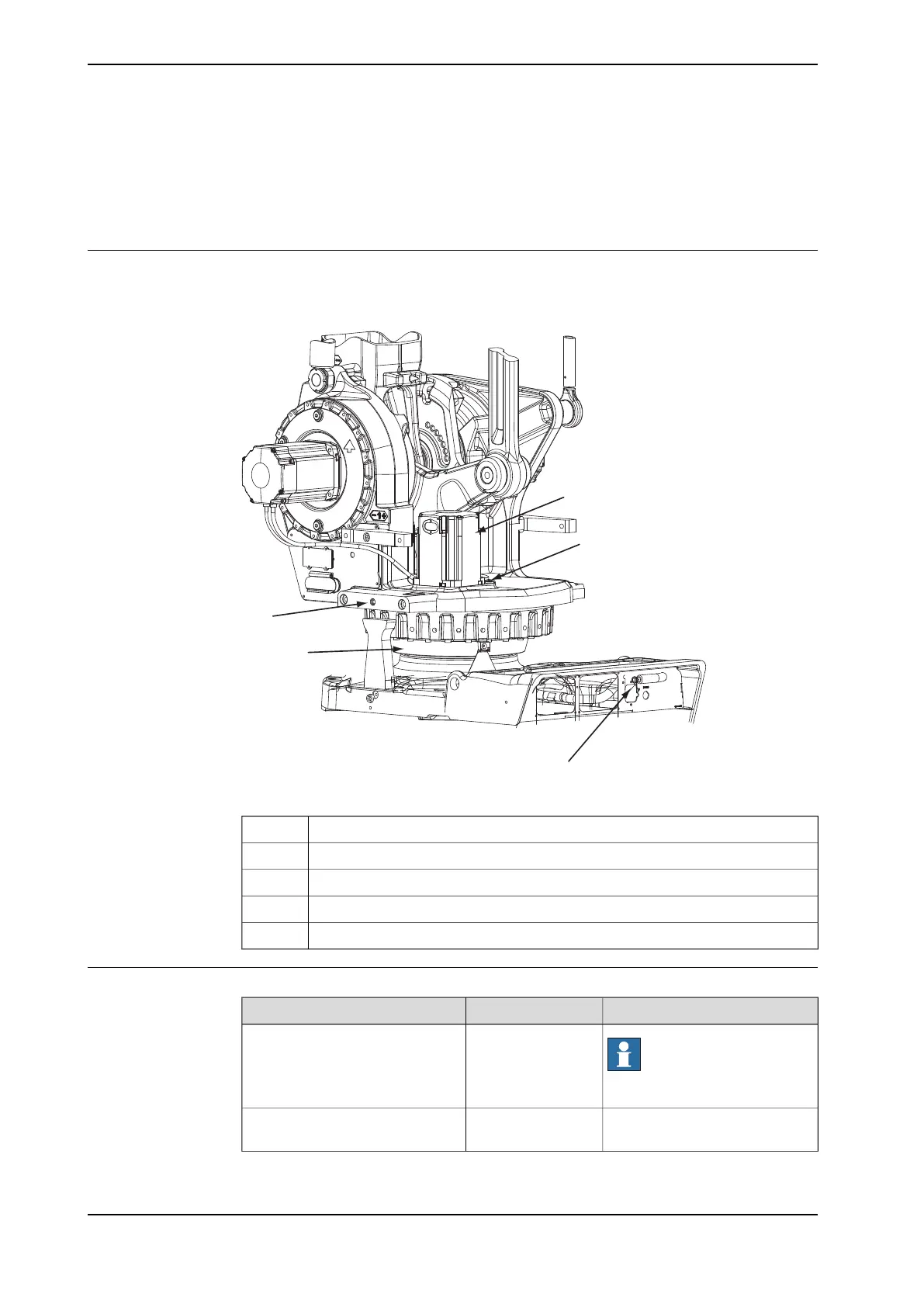

The axis-1 gearbox is located between the frame and base. See oil plugs in the
following figure.
A
B
C
D
E
xx0500002479
Oil plug, inspectionA
Gearbox, axis 1B
Oil plug fillingC
Motor, axis 1D
Drain hose (Behind cover)E
Required equipment
NoteArt. no.Equipment
Note
Do not mix with other oils!
See Type and
amount of oil in
gearboxes on
page 122.
Lubricating oil
Content is defined in section
Standard tools on page 347.
-Standard toolkit
Continues on next page
96 Product manual - IRB 660
3HAC025755-001 Revision: W
© Copyright 2006-2020 ABB. All rights reserved.
3 Maintenance
3.3.1 Inspecting the oil level in axis-1 gearbox
