3.4 Replacement/changing activities
3.4.1 Type of lubrication in gearboxes
Introduction
This section describes where to find information about the type of lubrication,
article number and the amount of lubrication in the specific gearbox. It also
describes the equipment needed when working with lubrication.
Type and amount of oil in gearboxes
Information about the type of lubrication, article number as well as the amount in
the specific gearbox can be found in Technical reference manual - Lubrication in
gearboxes available for registered users on myABB Business Portal, www.mypo-
rtal.abb.com.
Location of gearboxes

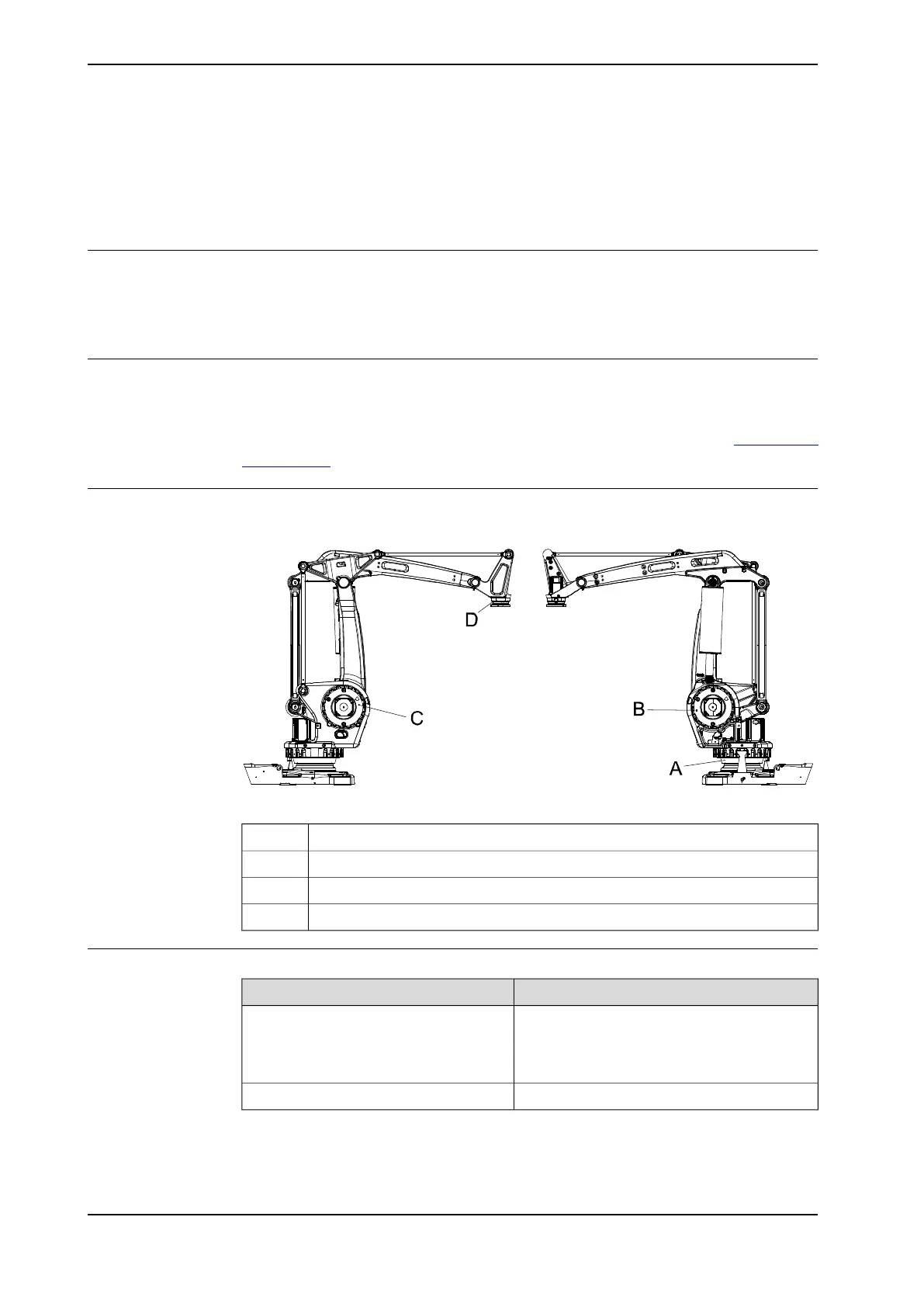

The figure shows the location of the gearboxes.
xx0500002467
Gearbox, axis 1A
Gearbox, axis 2B
Gearbox, axis 3C
Gearbox, axis 6D
Equipment
NoteEquipment
Includes pump with outlet pipe.Oil dispenser
Use the suggested dispenser or a similar one:
• Orion OriCan article number 22590
(pneumatic)
Nipple for quick connect fitting, with o-ring
122 Product manual - IRB 660
3HAC025755-001 Revision: W
