2.3.3 Lifting robot with lifting slings
General
This section contains a general overview of how to lift the complete robot using
special lifting equipment. More detailed instructions are included with the equipment.
Note
Move the robot to the recommended position shown in the figure and in the
instruction!
Attempting to lift a robot in any other position may result in the robot tipping
over, causing severe damage or injury!

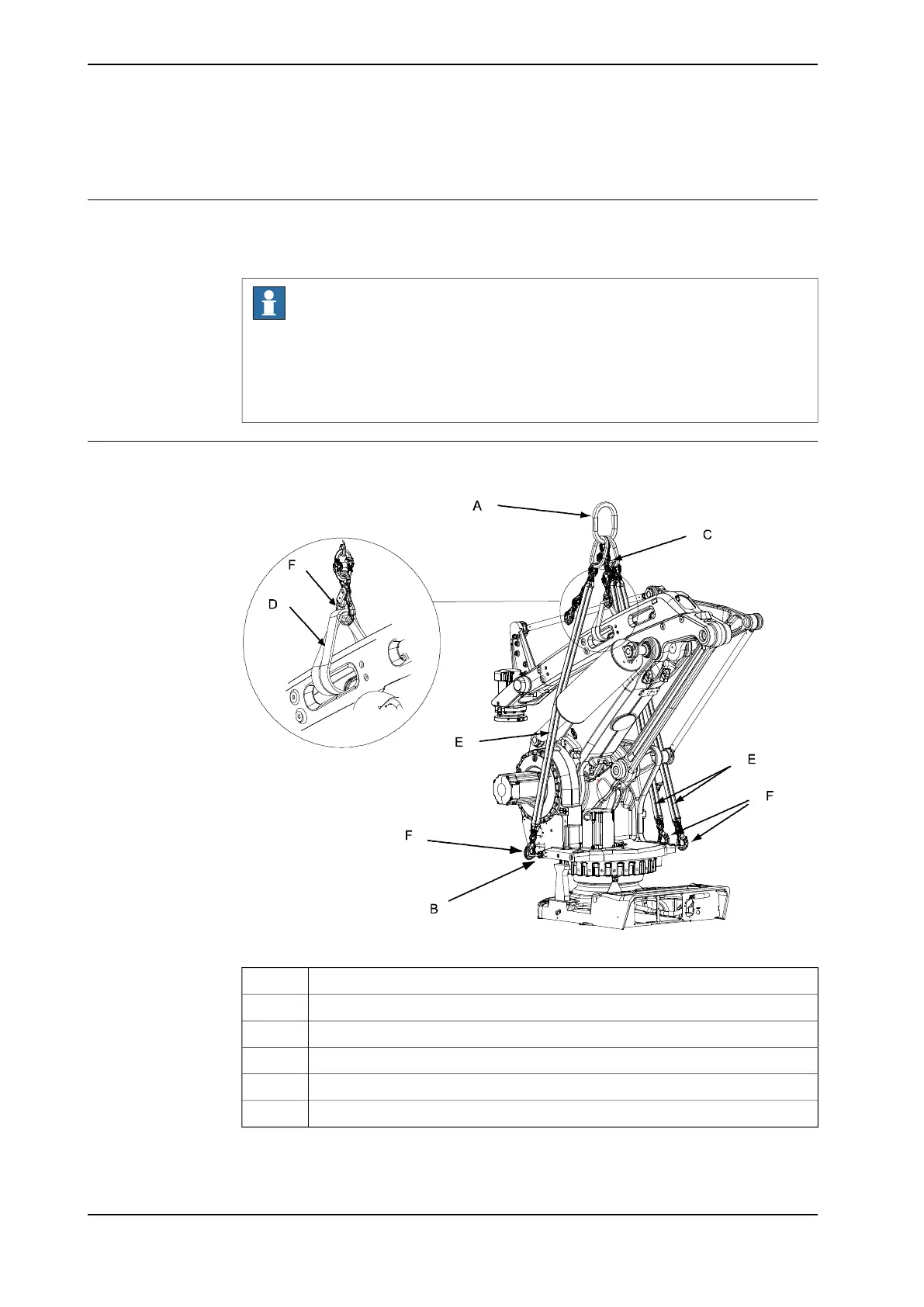

Illustration, lifting slings
The figure below shows how to lift the complete robot with lifting slings.
xx0500002460
Eye for lifting accessoryA
Swivelling lifting eyes, 3 pcsB
ChainC
Lifting sling, short. Secures against rotation.D
Lifting slings, longE
HookF
Continues on next page
58 Product manual - IRB 660
3HAC025755-001 Revision: W
© Copyright 2006-2020 ABB. All rights reserved.
2 Installation and commissioning
2.3.3 Lifting robot with lifting slings
