4.5.3 Replacing the brake release board

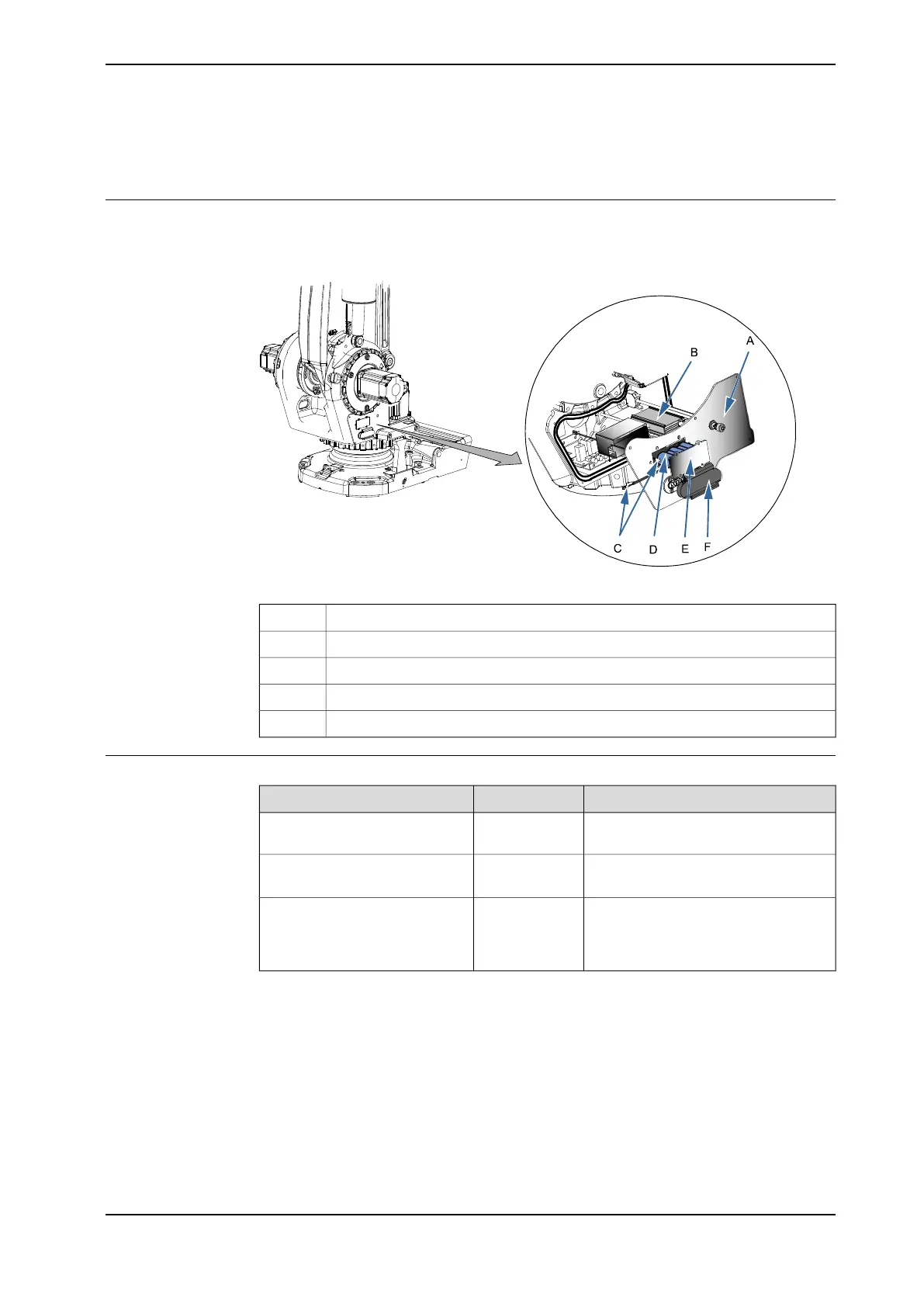

Location of brake release board
The brake release unit is located together with the SMB unit on the left hand side
of the frame, right next to the gearbox, axis 2, as shown in figure below.
xx0600002621
SMB coverA
SMB unitB
Battery cableC
SMB batteryD
SMB battery, coverE
Required equipment
NoteArticle numberEquipment, etc.
DSQC10503HAC065020-
001
Brake release board
Content is defined in section Standard
tools on page 347.
-Standard toolkit
These procedures include references
to the tools required.
Other tools and procedures may
be required. See references to
these procedures in the step-by-
step instructions below.
Continues on next page
Product manual - IRB 660 247
3HAC025755-001 Revision: W
© Copyright 2006-2020 ABB. All rights reserved.
4 Repair
4.5.3 Replacing the brake release board
