2.3 On-site installation
2.3.1 Lifting robot with fork lift
General
The robot may be moved using a fork lift, provided that available special aids are
used.
This section describes how to attach the fork lift equipment to the robot.
Attachment points on robot

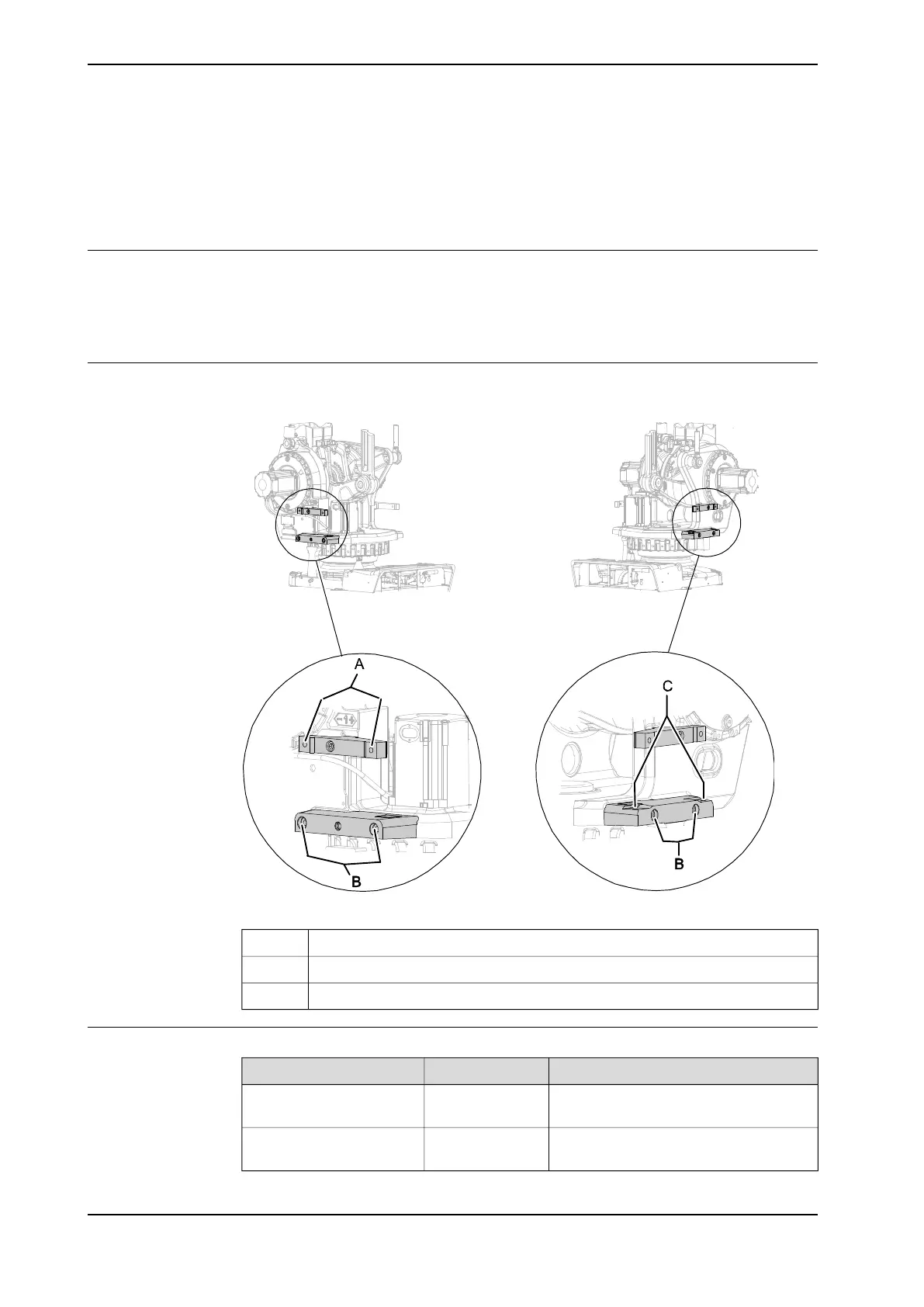

The attachment points for the fork lift equipment are shown in this figure.
xx0500002276
Attachment points on adapter and horizontal attachment screwsA
Attachment points, horizontal attachment screwsB
Attachment points, vertical attachment screwsC
Required equipment
NoteArt. no.Equipment, etc.
See figure Fork lift set, 3HAC023044-001
on page 51.
3HAC023044-001Fork lift set, incl. all required
hardware
Content is defined in section Standard
tools on page 347.
-Standard toolkit
Continues on next page
50 Product manual - IRB 660
3HAC025755-001 Revision: W
© Copyright 2006-2020 ABB. All rights reserved.
2 Installation and commissioning
2.3.1 Lifting robot with fork lift
