ABB IRC5P User Manual

5 Installation and Commissioning
Product Manual, Control Cabinet IRC5P 3HNA009834-001 en Rev.06 105
5.7 Misc. System Connections
5.7.6 Cabinet Cooler Installation
General If the controller is to operate at higher temperatures (up to 55°C), a cooler may be
installed.
If the cooler is ordered at a later stage than the control cabinet, the installer must
prepare the cut-outs for the location of the cooler shown below. For drawing of
cut-out and holes, see manufacturer’s documentation, supplied with the cooler.

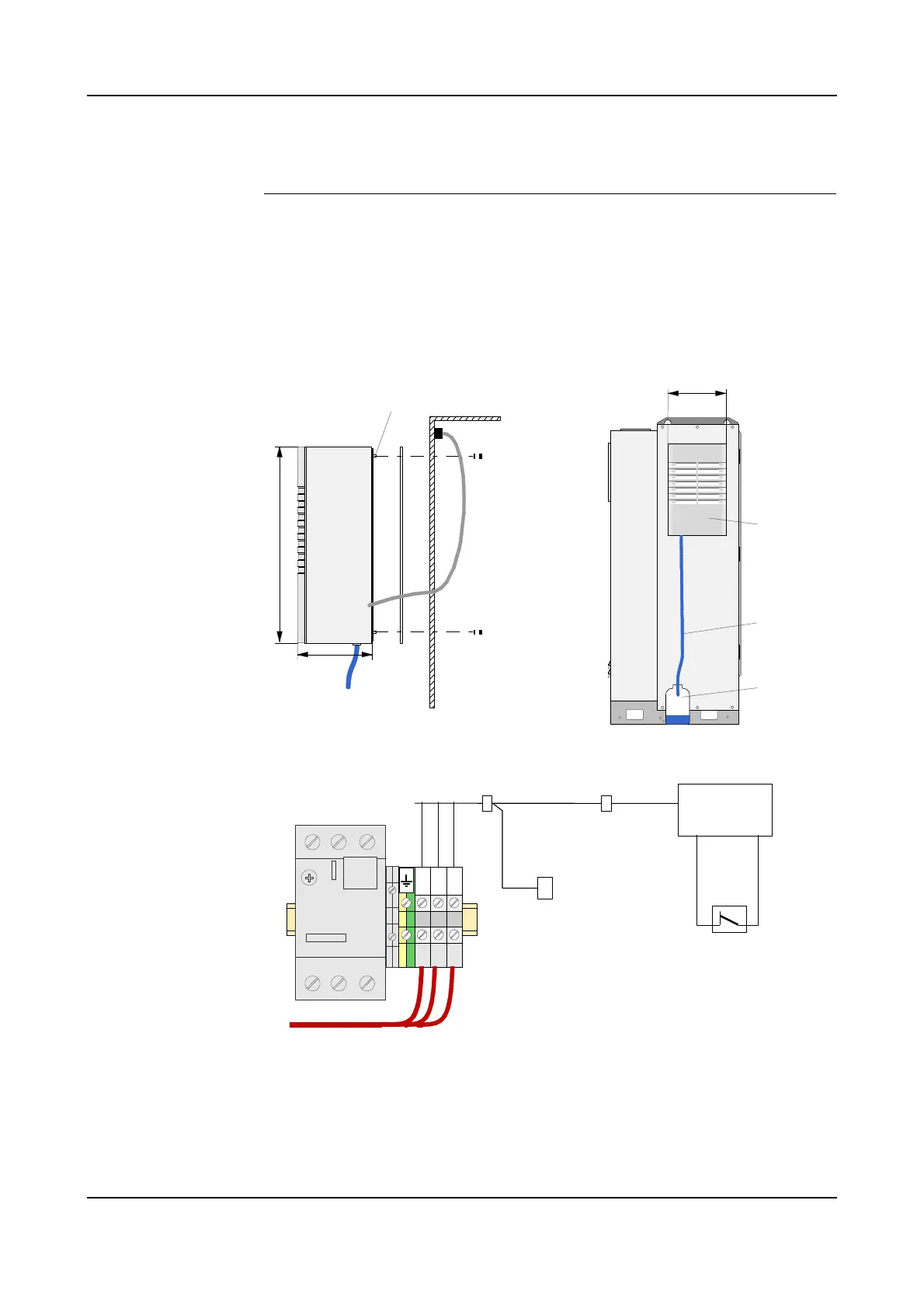

Figure 53 Cooler installation
Cooler cable
Drain hose
connection
Cooler unit
Cabinet side wall
Attachment
nut and washer
Electrical connection X79
Headless screw
Drain water
container
Drain hose
Cooler unit
All dimensions in mm
280
5
5
0
153
Mains overload
protection, FR1
Factory 115/230 VAC supply
L N P
.
E
Cooler
Door switch
Normal Closed
when door open
Optional
internal light
X78
X79
XT1.1
