3.2 Basic Design
3.2.5 Identification Labels
Description Identification plates/labels indicating the type of device and serial number etc., are
found on the control cabinet, purge unit, pendant, Pendant Interface Board TIB,
Manipulator Interface Board MIB, Pressure Sensor Interface Board PSIB, Digital
Sensor Interface Board DSIB and manipulator.
The identification labels are located on the control cabinet front (Figure 1), purge
unit front (Figure 5), pendant rear (Figure 13), and on the boards.
Note: The identification labels shown in the illustrations below only serve as
examples. For exact identification, see labels on your devices.
Identification plate for manipulator is shown in ‘Product Manual, Manipulator’.

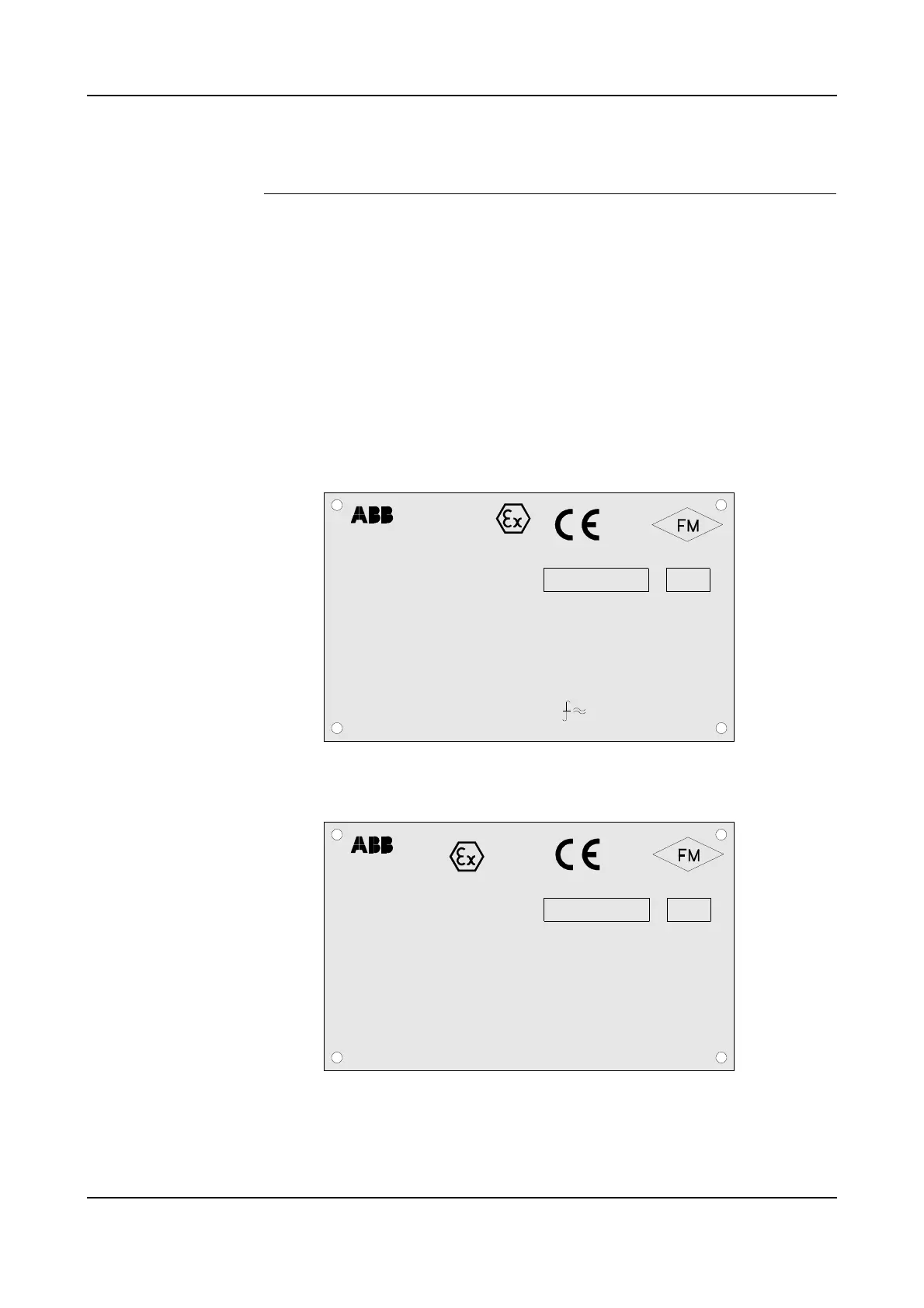

Figure 6 Control cabinet identification plate
Figure 7 Purge unit identification plate
0470
APPROVED
Type:CONTROL CABINET IRC5P
NEMKO 02ATEX273U
Temperature :.............................
Supply Voltage :.........................
Supply Current :..........................
Consumption :.............................
BatchSerial No.
II (2) G [Ex ib px
Intrinsically Safe Outputs for Cl.I&Cl.II,Div.1,Gr.C,D&G.
Ref. Dwg. No.: 3HNA012652-001
PO Box 265, N-4349 Bryne
ABB AS, Robotics
II (2) D [Ex ibD pD
°C - +45 °C0
200-600VAC 50/60Hz
Max. 16A
Max. 6.5 kVA cos. o 0,9
] IIB
]
PO Box 265, N-4349 Bryne
NORWAY
ABB AS, Robotics
0470
APPROVED
Type:PURGE CONNECTOR BOX
Dwg.No.: 3HNM 01201-1
Part of :PURGE SYSTEM Dwg.No.3HNE 06486-1
NEMKO 02ATEX189U
Protective gas :..........................
Purge Supply pressure :............
Maintenance Supply pressure :.
Leaquage Compensation :........
Maintenance pressure :.............
Enclosure Pressure :.................
BatchSerial No.
INTRINSICALLY SAFE SIGNALS Cl. I.II. Div. 1 , Gr. C - G
[Ex px ib] IIB,
[Ex pD ibD]
Instrumental air
Min.3.0 max.5.0 bar
Min.0.5 max.1.0 bar
5 -20 Nl/min.
Min. 0.8 mbar
Max. 500 mbar
II (2) G
II (2) D
