1. SCL files are exported from PCM600. In this case, a SCD file. It is also possible
to export other SCL file types.
2. Horizontal and vertical communication is configured using the station
configuration tool, for example, IEC 61850 Configuration tool or IET600.
3. SCL files are imported to a PCM600 project. In this case, it is the updated SCD file.
SCD file
 do IED engineering
 export SCD file
PCM600 (1)
 create project
 import SCD file
 configure data sets
 configure Report CBs
 configure GOOSE CBs
 export SCD file
IET 600 (2)
 import SCD file
 link GOOSE input data
 Write to IED
PCM600 (3)
SCD file
IED 1 IED nIED 2 IED n - 1
GUID-5096E041-8757-49F2-BB8D-D02B6222C359 V1 EN

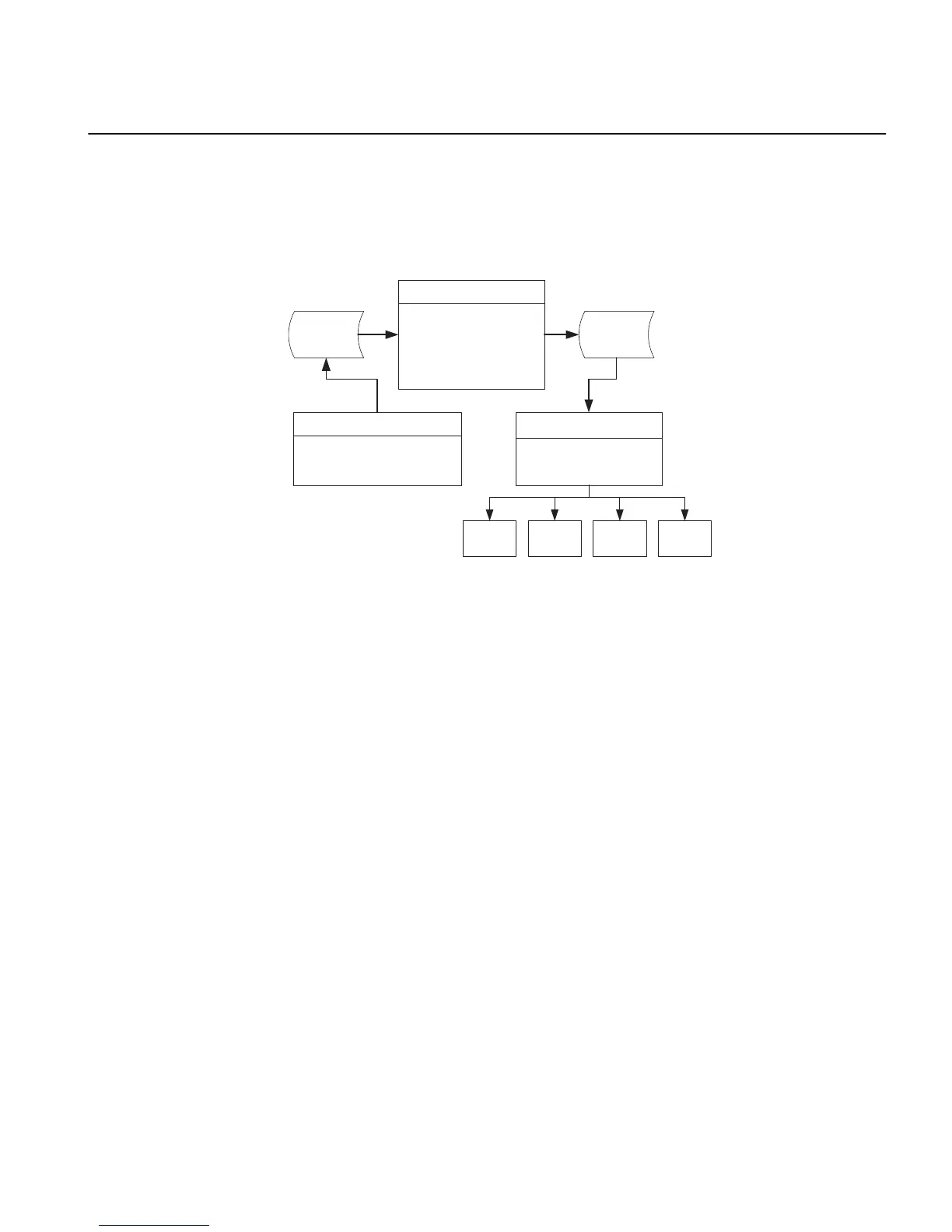

Figure 62: IEC 61850: signal engineering procedure flow when a complete station
is exported as a SCD file
7.3.1 Exporting SCL files from PCM600
A pre-condition for exporting SCL files from PCM600 is that all IEDs in the project
must be engineered in PCM600. The IEDs require unique name and IP addresses and
they must be set according to the project definitions. IED configurations must be
finalized as far as possible before starting the IEC 61850 configuration part.
7.3.1.1 Exporting SCD files
1. Select the station in the Plant Structure view.
1MRS240044-IB A Section 7
IEC 61850 communication engineering
REF615R 103
Engineering Manual
