PCM600 can be used for different purposes throughout the IED life cycle. A set of
special tools is available for different applications.
The applications can be organized into groups.
• IED product engineering
• IED communication engineering per protocol
• IED system monitoring
• IED product diagnostic
Symbol standard and naming style can be set in PCM600 by selecting Tools/Options/
System Settings. For further information regarding the system settings, see PCM600
online help.
GUID-0E3369C0-6CA5-4F93-805D-B17E21E9E709 V1 EN

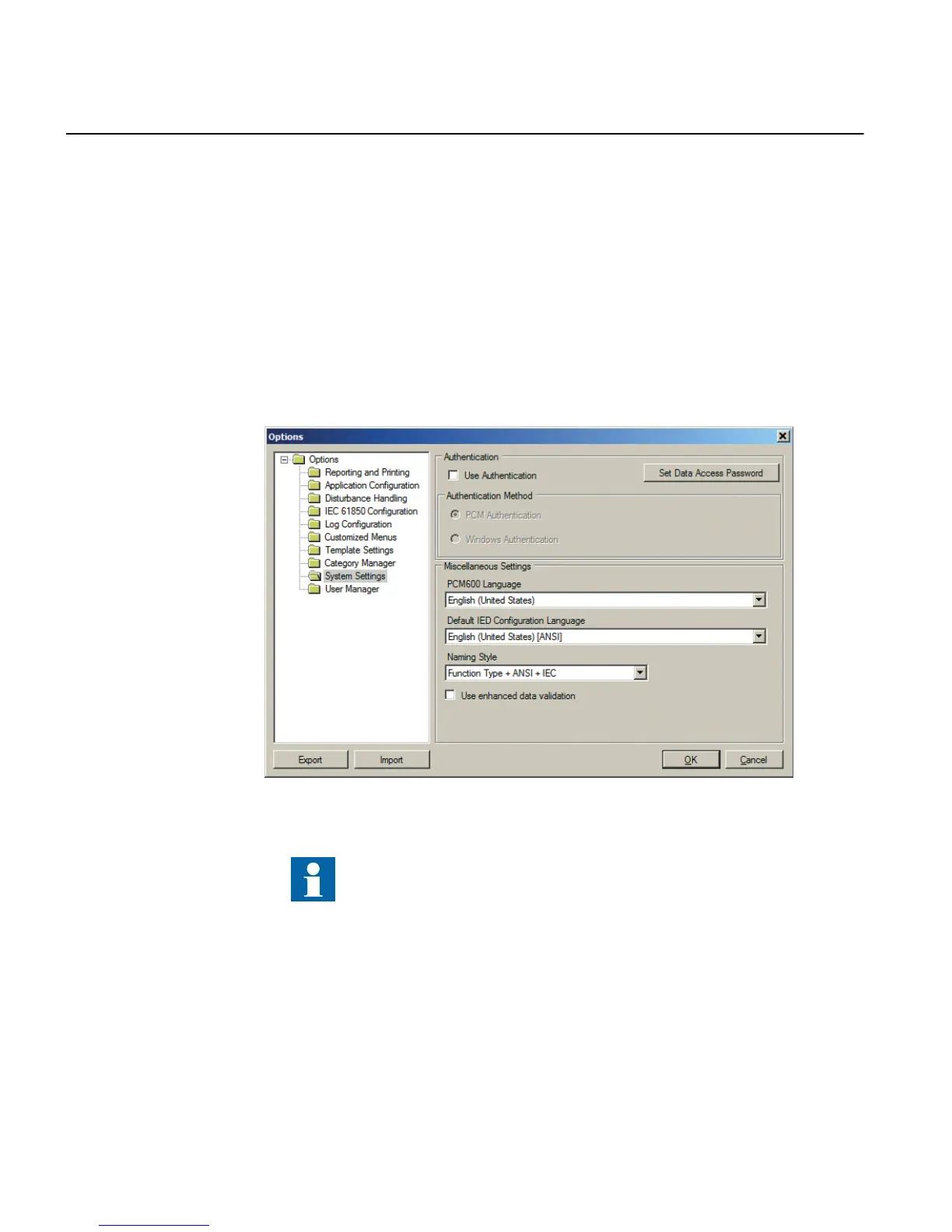

Figure 4: Symbol standard and naming options
The system settings must be set before a new PCM600 project is
started. For more information, see PCM600 documentation.
3.1 Connectivity packages
A connectivity package is a software component that consists of executable code and
data which enables system tools to communicate with an IED. Connectivity packages
Section 3 1MRS240044-IB A
PCM600 tool
24 REF615R
Engineering Manual
