• Right-click the Plant Structure view, point to New and select Create from
Template.
• Right-click the Plant Structure view, point to New and select General and
select the element either IED Group or Substation.
2. On the View menu, select Object Types.
3. Select the needed elements and drag them into the plant structure.
GUID-8E56AE3F-A590-4266-8F48-A3ACC5BFD8FA V1 EN

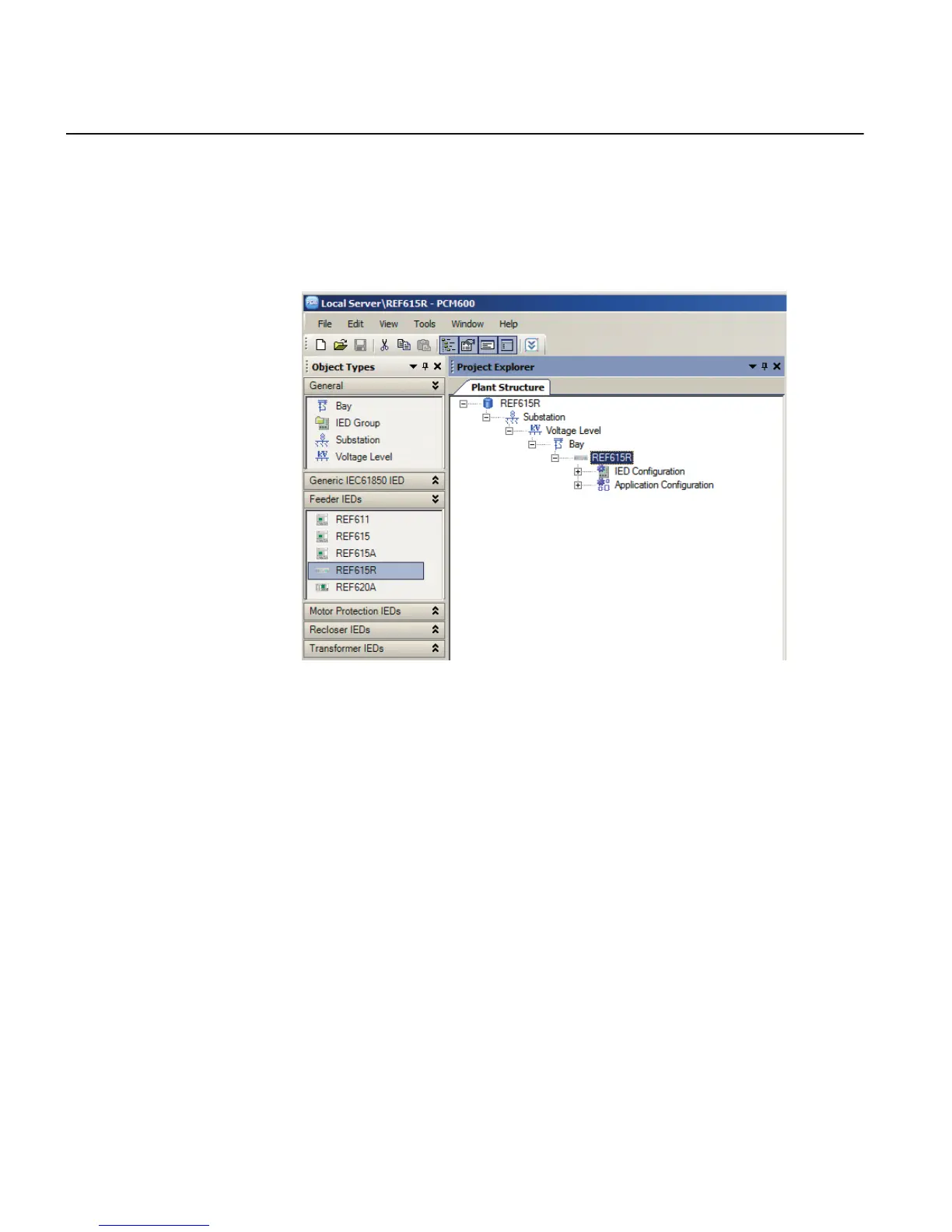

Figure 9: The start of a project with IEDs placed and renamed
4. Rename each level in the structure by the names/identifications used in the grid.
• Right-click the level and select Rename.
• Rename the levels in the Object Properties view.
4.6 Inserting an IED
The context menu or the Object Types view shows the available IEDs that can be
inserted, on the bay level, into the plant structure according to the installed
connectivity package.
It is possible to do various tasks in the plant structure.
• Insert an IED to offline mode or online mode
• Import a template IED that is available in the template library as a .pcmt file
• Import a preconfigured IED available as a .pcmi file
Section 4 1MRS240044-IB A
Setting up a project
32 REF615R
Engineering Manual
