4.6.2 Inserting an IED in offline mode
When the IED is not available or is not connected to PCM600, engineering can be done
offline. The offline configuration in PCM600 can be written to the IED later when it is
connected.
Working in the offline mode has an advantage compared to online mode in that the
preparation for the configuration can be started even though the IED is not available.
1. In the Plant Structure view, right-click the bay and from the list that appears,
select New and the IED application area, for example, Feeder IEDs.
2. Select the IED type to be inserted.
Alternatively, drag an IED from the Object Types view to the
bay level.
The Configuration Mode Selection Page dialog box opens.

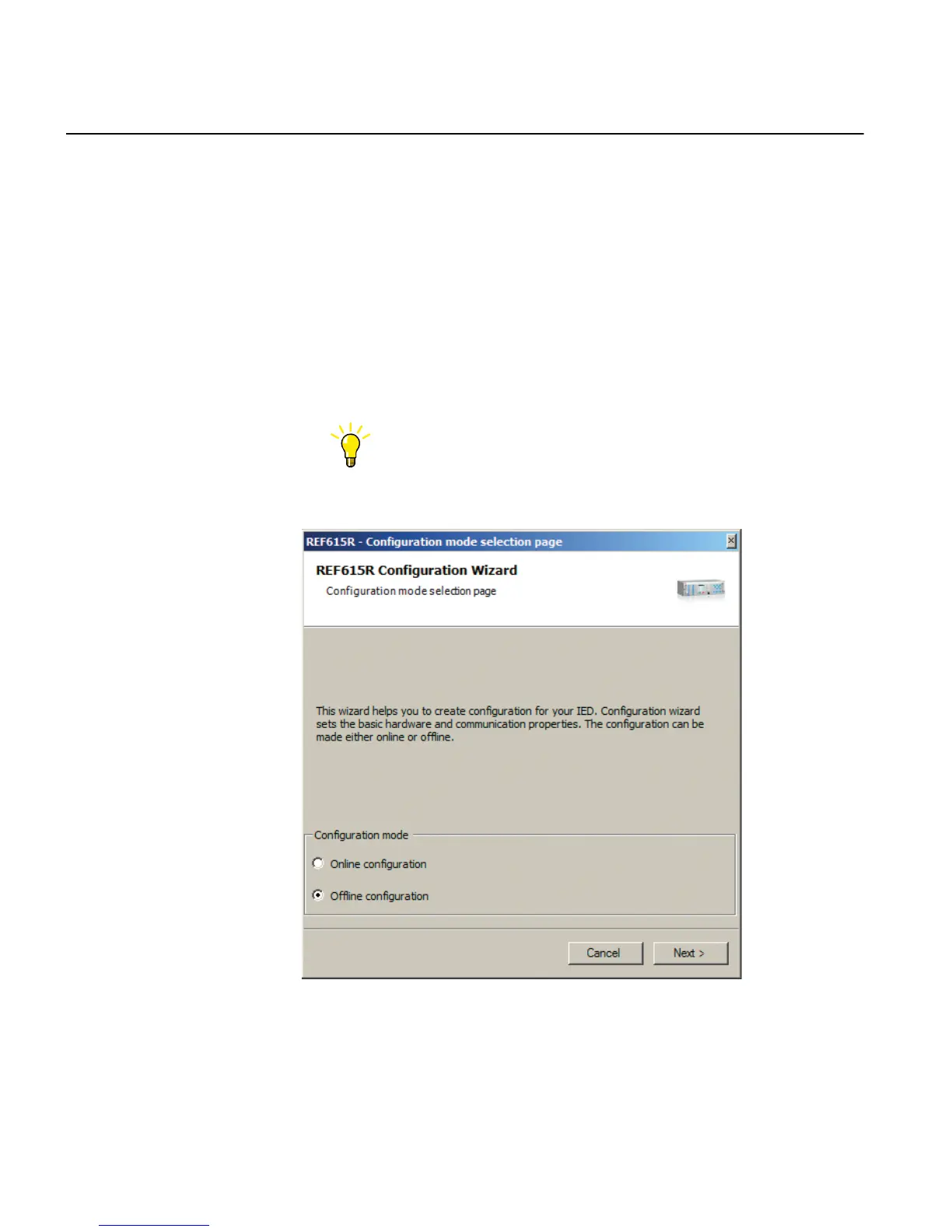

GUID-DFA5DB6C-569A-44BE-A87B-89CCB1BC8434 V1 EN
Figure 17: PCM600: Configuration Mode Selection Wizard
3. Select Offline Configuration and click Next.
Section 4 1MRS240044-IB A
Setting up a project
40 REF615R
Engineering Manual
