GUID-8843160D-28CC-46D5-8045-445FAAB335B9-ANSI V1 EN

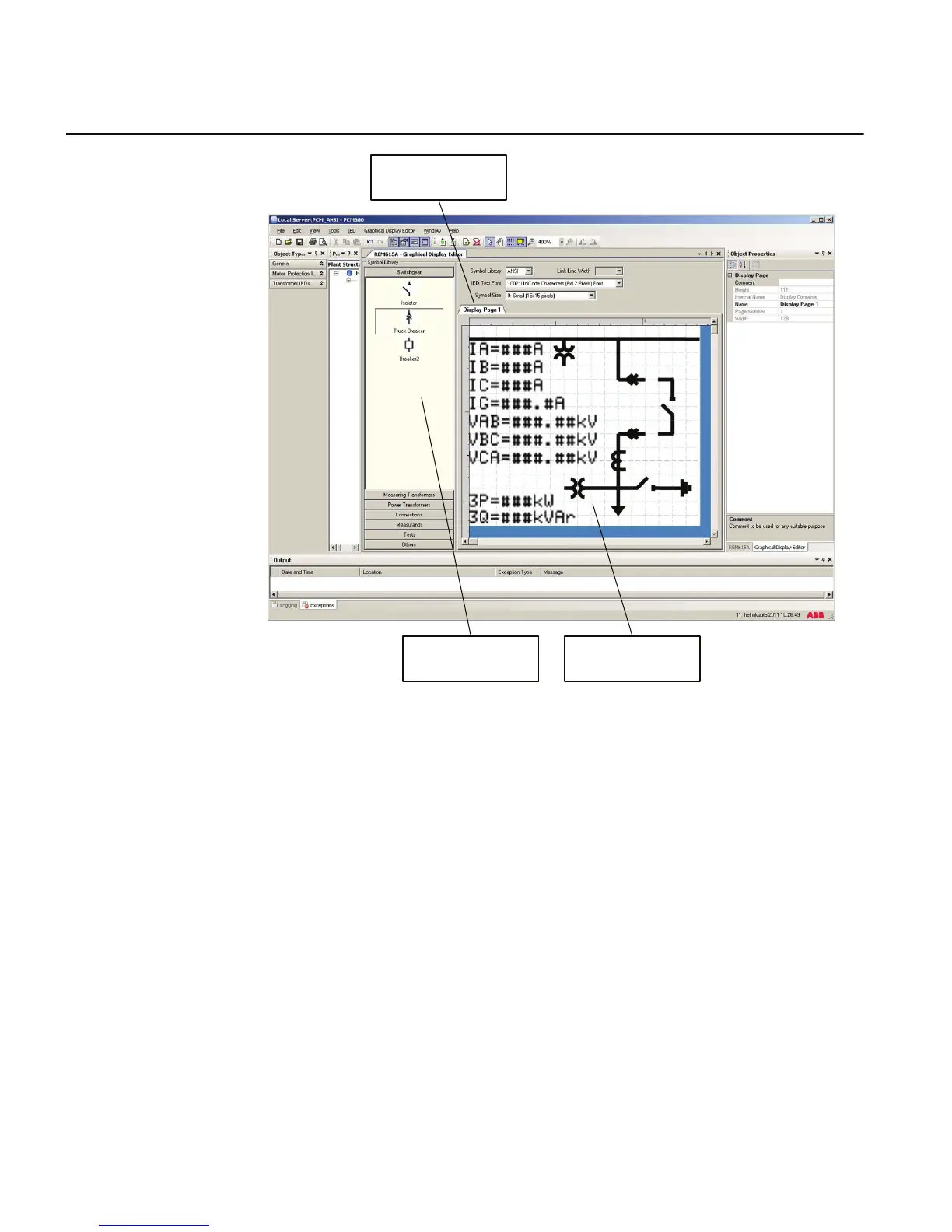

Figure 50: Graphical Display Editor: an active view
The Graphical Display Editor has a fixed symbol library window on the left side of the
view. The presentation is empty when no page exists for the IED. A default single-line
diagram presentation is displayed if standard configurations are used.
6.1.1.1 Display window and sequence order
There are rules for handling the HMI pages.
• IED supports one bay with single-line diagram.
• Measurements and the single-line diagram can be displayed on the page in any
possible order and placement.
• All symbol objects, for example apparatus and measurement, on the HMI page
must be linked to the correct function block in the application configuration to
present the correct process values.
Section 6 1MRS240044-IB A
LHMI engineering
84 REF615R
Engineering Manual
