Action Description
Open Select any record and click Open to view the record in Wavewin, provided that this
external software is installed. Additionally, any record row can be double-clicked to
view that record.
Sort To sort the record rows by any column click a column header.
Close Clicking the Close button closes this instance of the tool. Any open instance is finally
closed when the whole PCM600 is closed.
File All the actions are also available on the tool through File drop-down menu.
5.4.3 Information fields
The IP box shows the IP address of the selected IED and the Local Path box shows
the selected location for reading or viewing records.
In the record grid, the name, creation time, modification time and size of each record
are shown. The times and dates shown in the grid are the times when the files have
been read rather than the original date stamps in the IED.

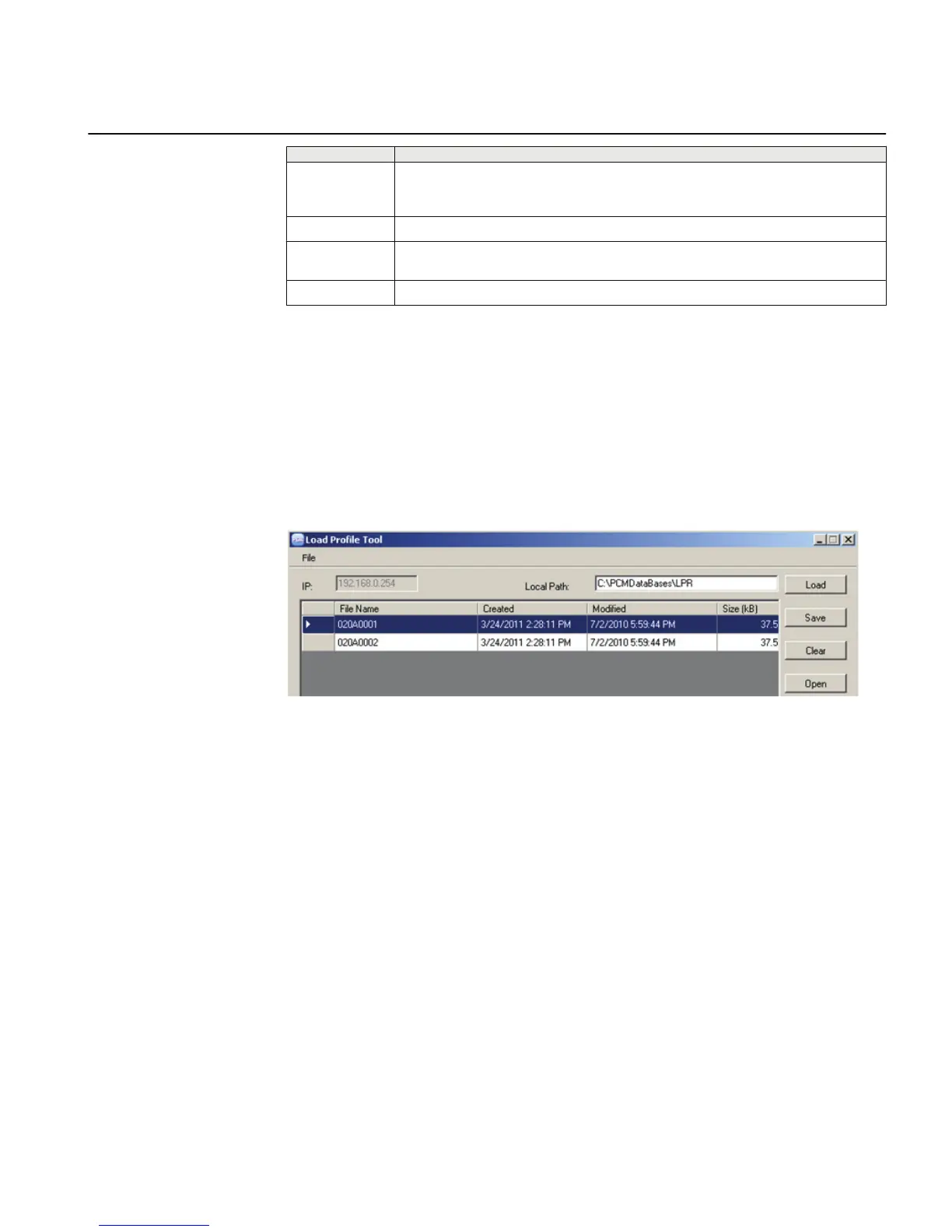

GUID-82E7859C-3C2B-43F1-83C3-7AA8087C569C V1 EN
Figure 48: Information fields
5.5 Fault Record tool
The Fault Record tool is used for reading the fault records from the IED and it is
included in the connectivity packages. The tool makes analyzing the fault records
easier by showing them separately in their own user control components. It also
includes save, copy and clear functions where all the fault records are saved or copied
in text format for later viewing or cleared from the IED or the tool.
5.5.1 Opening and closing Fault Record tool
• To open the Fault Record tool, right-click an IED node in the PCM600 project tree
and select Fault Record Tool.
1MRS240044-IB A Section 5
Protection and control engineering
REF615R 79
Engineering Manual
