The Export dialog box opens.
3. From the Save as type list, select the type of file to export.
• Configured IED description (.cid) for the IEC 61850 structure as needed for
the IED at runtime
• IED capability description (.icd) for the IEC 61850 structure
IEC08000416 V1 EN

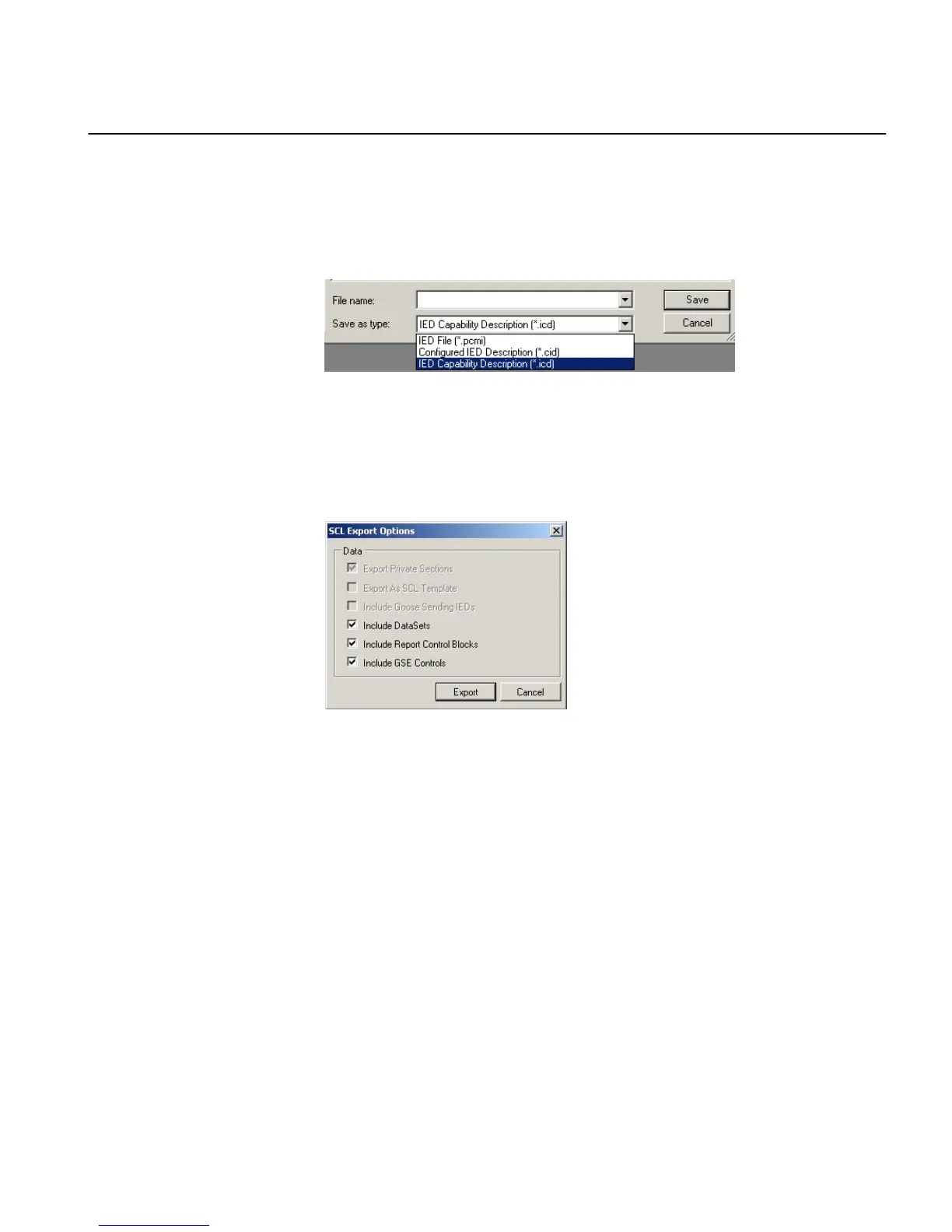

Figure 65: IEC 61850: export IED file type selection
4. Click Save.
The SCL Export Options dialog box opens.
5. Select the export options.
IEC08000418 V1 EN
Figure 66: IEC 61850: export options for ICD files
6. Click Export.
7.3.2 Engineering vertical and horizontal communication
For IEC 61850 engineering a separate system configuration tool is needed to be used
with PCM600. In PCM600 Ver. 2.5 or later the recommended tool for smaller projects
is the IEC 61850 Configuration tool. For larger projects it is recommended to use
IET600, which is available as a standalone tool.
1MRS240044-IB A Section 7
IEC 61850 communication engineering
REF615R 105
Engineering Manual
