GUID-F8162182-FF21-467A-AEB9-23284CB3FABD V1 EN

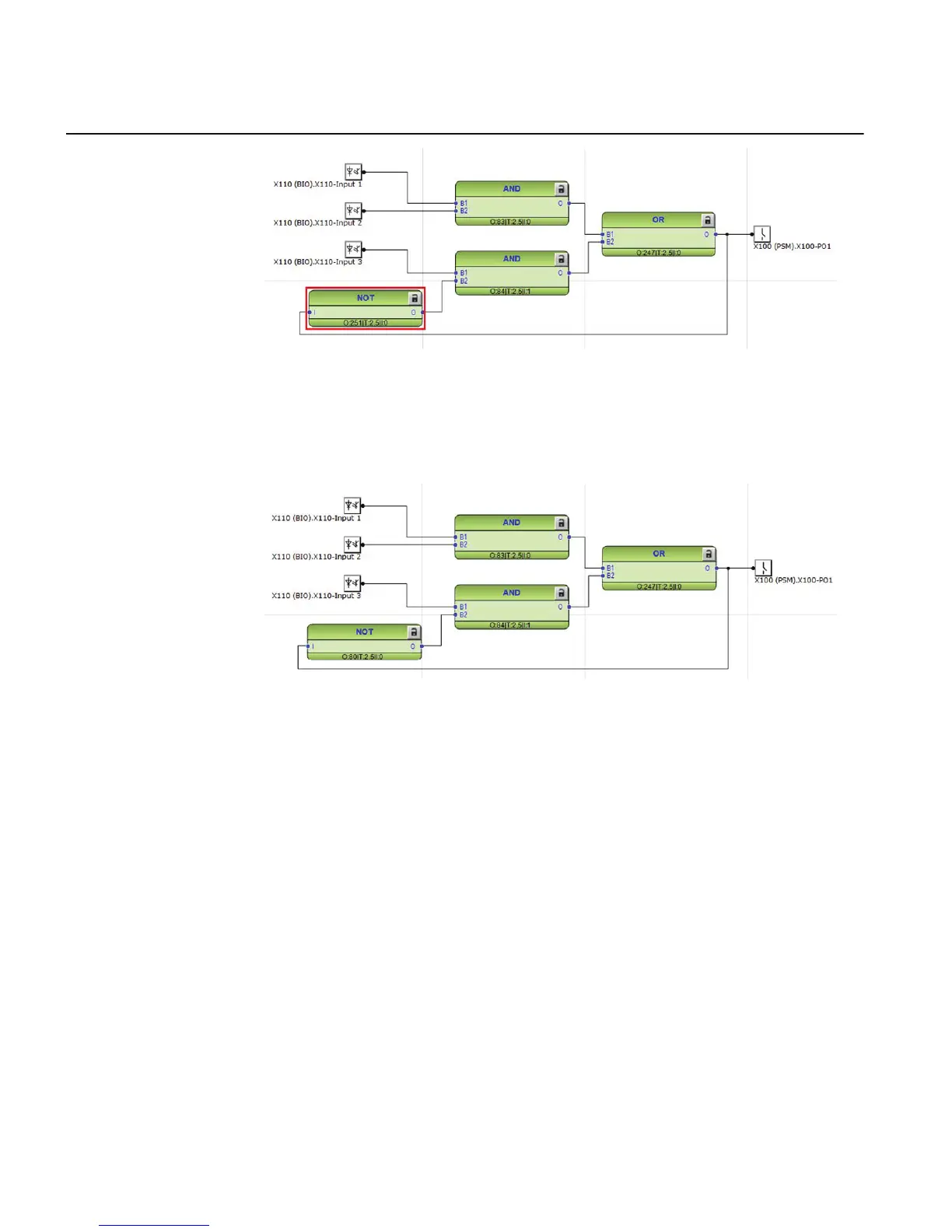

Figure 37: Feedback loop situation with automatically calculated execution orders
By setting a smaller execution number than in the AND port to where the NOT port is
connected, it is possible to fix the execution order of all functions in a loop so that they
are handled in the same task.
GUID-0C12B88A-0ABE-49DE-9A44-05D213D04922 V1 EN
Figure 38: Feedback loop situation with manually fixed execution order for NOT port
5.1.5 Configuration parameters
Configuration parameters can be viewed and set with the Parameter Setting tool.
5.1.6 Connections and variables
A connection is the link or "wire" between function block outputs and inputs.
There are rules and methods for making connections.
• Drag a line between two signals
• Link two signals by using variables
Section 5 1MRS240044-IB A
Protection and control engineering
66 REF615R
Engineering Manual
