GUID-C0599963-43D7-49AA-9912-D55CAEDFD3F7 V1 EN

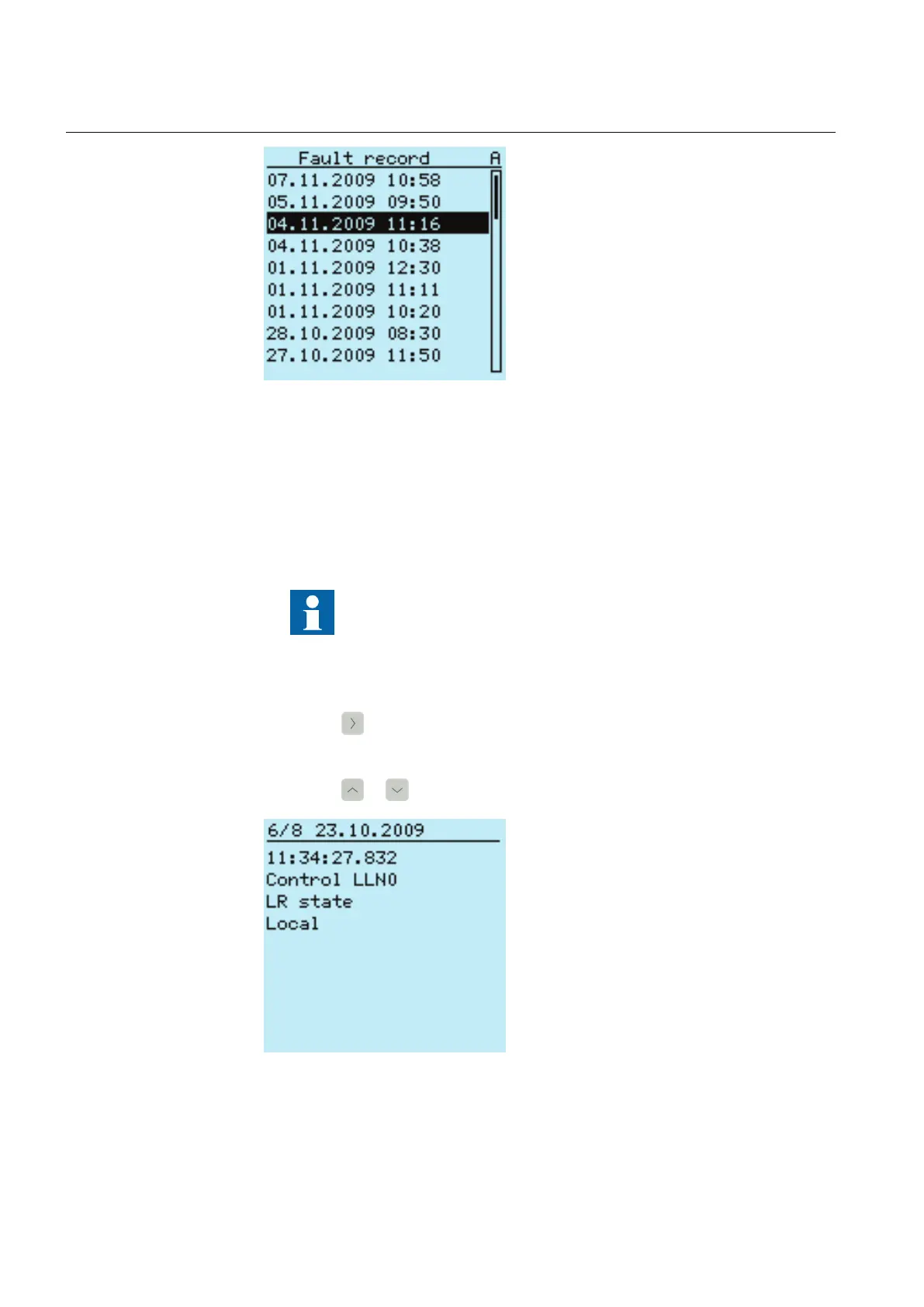

Figure 69: Monitoring fault records
6.1.3.5 Monitoring events
Event view contains a list of events produced by the application configuration. Each
event takes one view area. The header area shows the currently viewed event index
and the total amount of the events. The most recent event is always first.
The HMI Event Filtering tool can be used to configure the event
visibility in the LHMI.
1. Select Main Menu/Events.
2.
Press to view the first event.
Date, time, device description, object description and event text elements of the
event are shown.
3.
Press or to scroll the view.
A071148 V3 EN
Figure 70: Monitoring events
Section 6 1MRS758754 B
Operating procedures
92 REC615 and RER615
Operation Manual
