• When the L LED is lit, local control is enabled and remote control disabled.
• When the R LED is lit, remote control is enabled and local control disabled.
• When neither of the LEDs is lit, both control positions are disabled.
• When the L and R LEDs are lit, both remote and local control are enabled.
By default, the control position cannot be local and remote
simultaneously. See the technical manual for more information
on local and remote control.
To control the protection relay, log in with the appropriate user
rights.
4.1.5 Identifying the device
The Information menu includes detailed information about the device, such as
revision and serial number.
The protection relay information is shown on the display for a few seconds when the
device starts. The same information is also found in the protection relay menu.
1. Select Main menu/Information.
2.
Select a submenu with and .
A071158 V2 EN

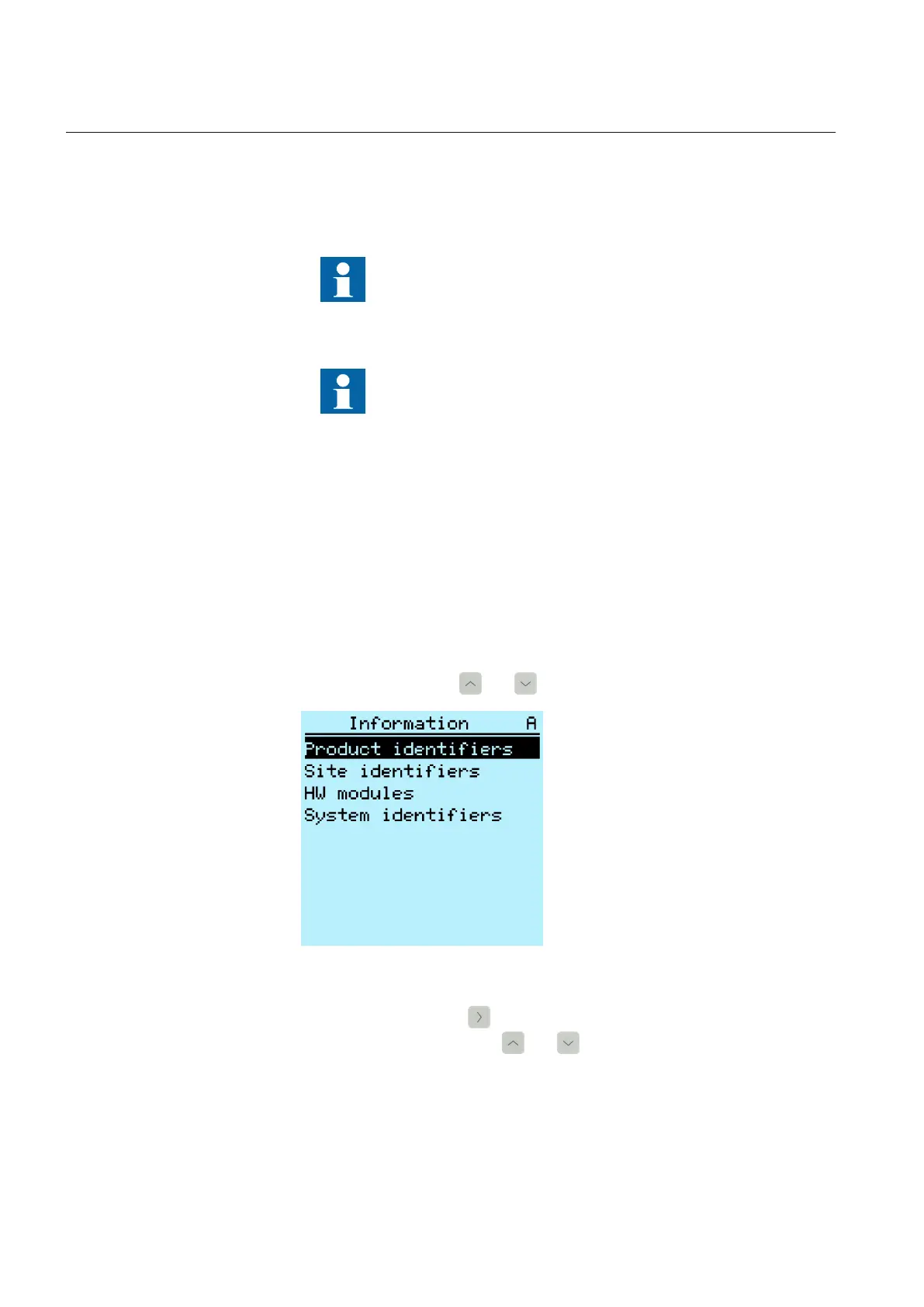

Figure 16: Selecting a submenu
3.
Enter the submenu with .
4.
Browse the information with and .
Section 4 1MRS758754 B
Using the HMI
44 REC615 and RER615
Operation Manual
To Next Page
