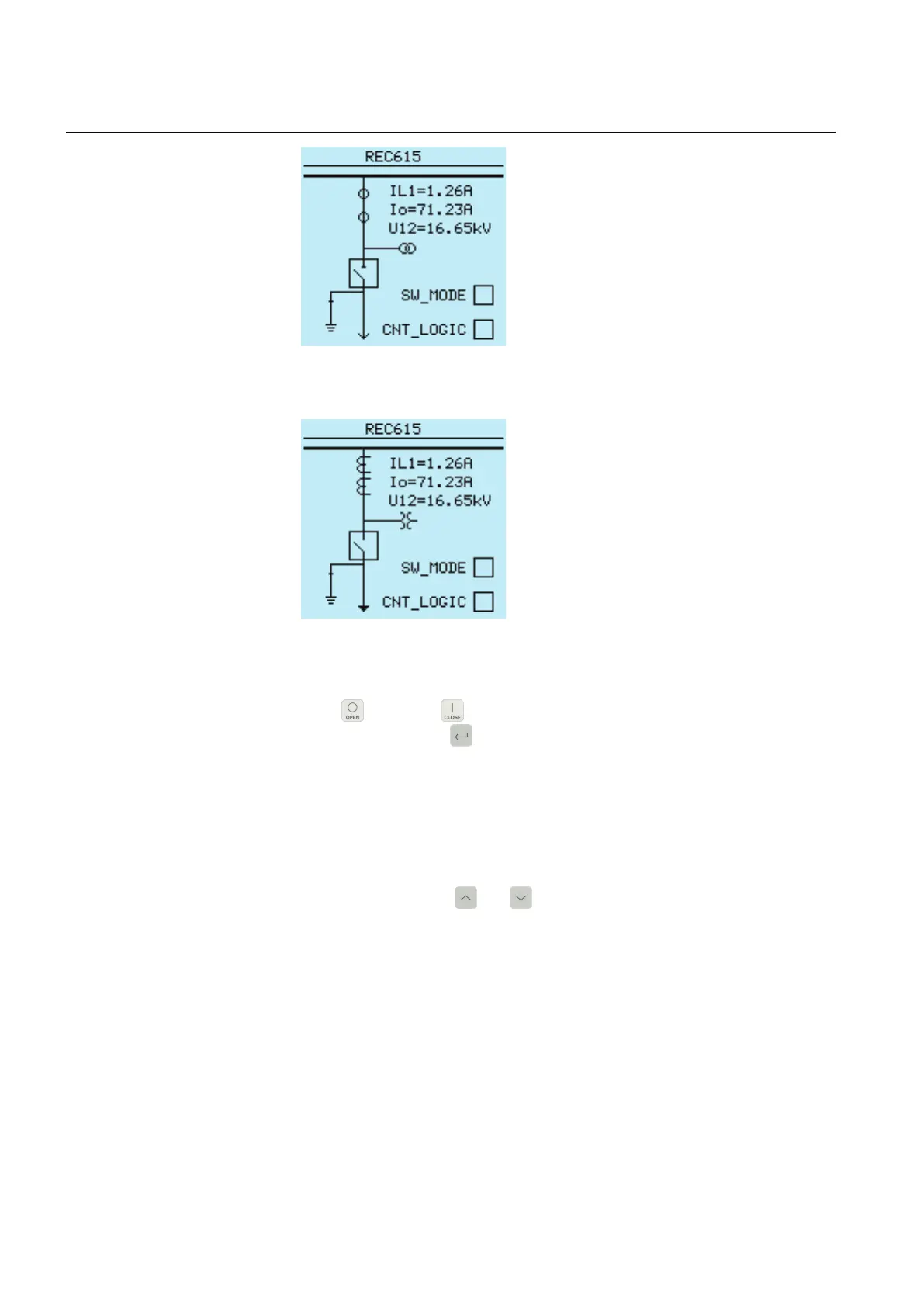

Figure 71: Single-line diagram with one switch and IEC symbols
GUID-0F9AA31A-A95D-4839-A2AB-DE670272EFA5 V1 EN
Figure 72: Single-line diagram with one switch and ANSI symbols
The selected object has a square around it.
2.
Press to open or to close the selected object.
3.
Select Yes and press to confirm.
6.2.1.2 Controlling SLD buttons
Buttons are controlled with the Open and Close buttons like any other controllable
single-line diagram objects.
1.
Select the button with and if it is not already selected.
