The selected contrast value is stored in the non-volatile memory if you are logged in
and authorized to control the protection relay. After an auxiliary power failure, the
contrast is restored.
4.1.7 Changing the local HMI language
1.
Select Main menu/Language and press .
2.
Change the language using
or .
3.
Press to confirm the selection.
4. Commit the changes.
A071010 V2 EN

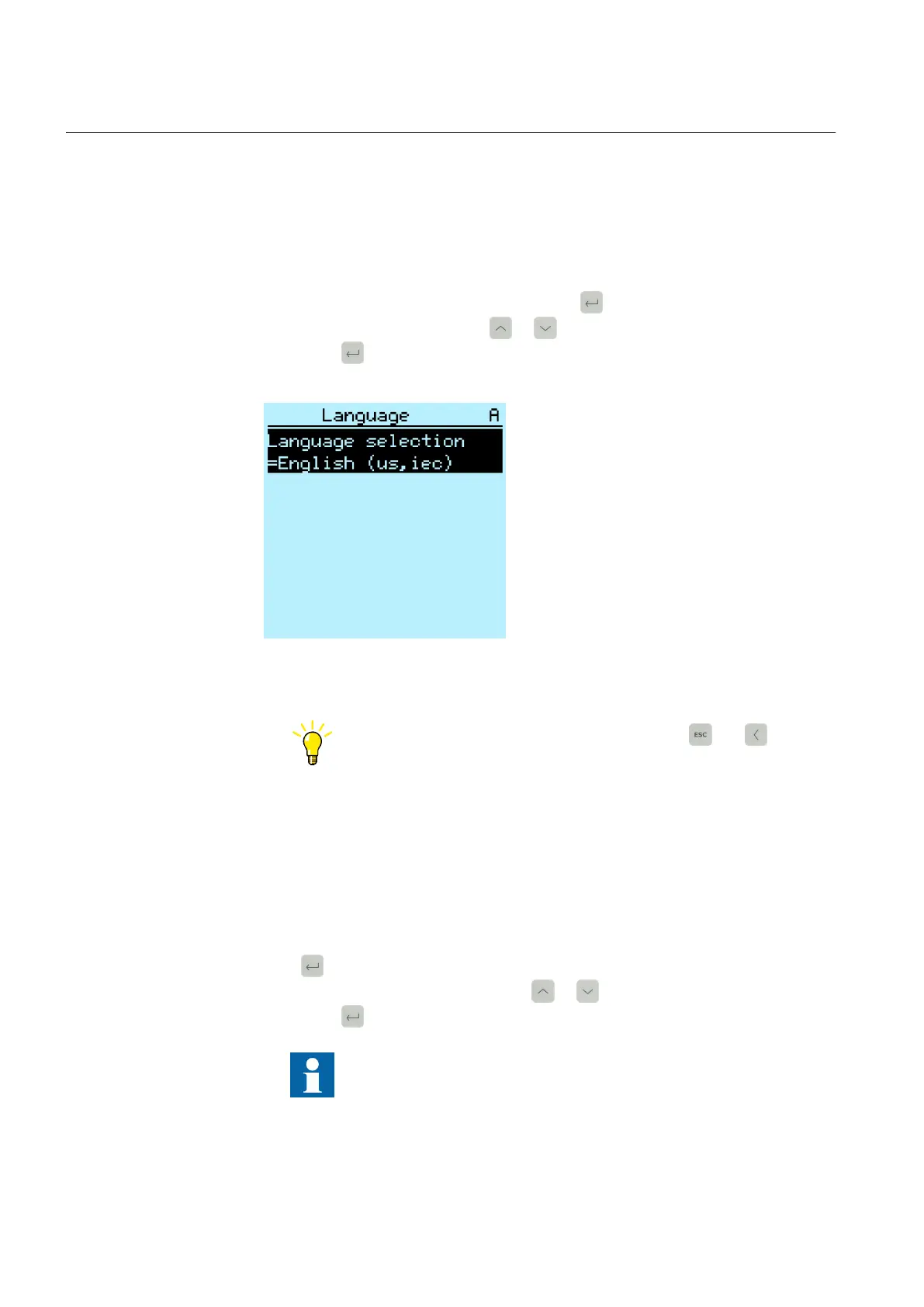

Figure 19: Changing the LHMI language
To change the language using a shortcut, press
and
simultaneously anywhere in the menu.
4.1.8 Changing display symbols
Use the keypad to switch between the display symbols IEC 61850, IEC 60617 and
IEC-ANSI.
1. Select Main Menu/Configuration/HMI/FB naming convention and press
.
2.
Change the display symbols with or .
3.
Press to confirm the selection.
The protection relay has to be rebooted if the
WHMI display symbols
are changed. With the LHMI, the change takes effect immediately.
Section 4 1MRS758754 B
Using the HMI
46 REC615 and RER615
Operation Manual
