To scroll the view upwards, press
.
•
To scroll the view downwards, press .
•
To jump from the last row to the first row, press again.
•
Press to jump from the first row to the last row.
•
To scroll parameter names and values that do not fit the screen, press . Press
once to return to the beginning.
4.1.11.3 Changing the default view
The default view of the display is Measurements unless set otherwise.
1.
Select Main menu/Configuration/HMI/Default view and press .
2.
Change the default view with or .
3.
Press to confirm the selection.
4.1.12 Viewing single-line diagram
The single-line diagram is created with PCM600. The single-line diagram is active
only when the large screen is used.
•
Select Main menu/Control/SLD to view the single-line diagram or press
to
navigate between main menu, measurement and single-line diagram.
GUID-1F3D36EE-0930-4E3E-A40B-89389E6EA903 V1 EN

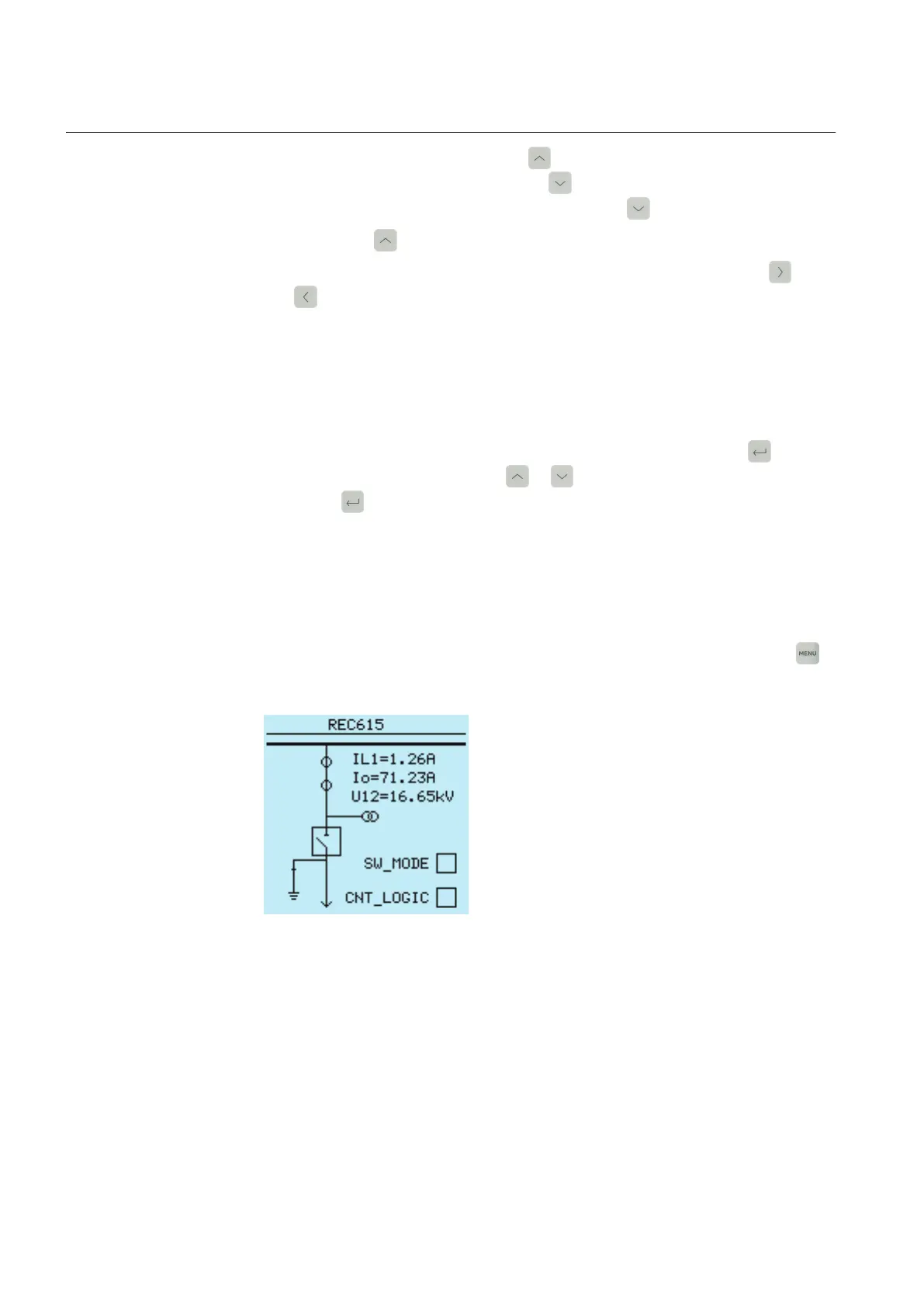

Figure 24: Single-line diagram with one switch and IEC symbols
Section 4 1MRS758754 B
Using the HMI
50 REC615 and RER615
Operation Manual
