• Number of recordings currently in the protection relay's memory.
• Remaining amount of recordings that fit into the available recording
memory.
• Recording memory used in percentage.
• If the periodic triggering function is used, the time to trigger which
indicates the remaining time to the next periodic triggering of the
disturbance recorder.
A070863 V3 EN

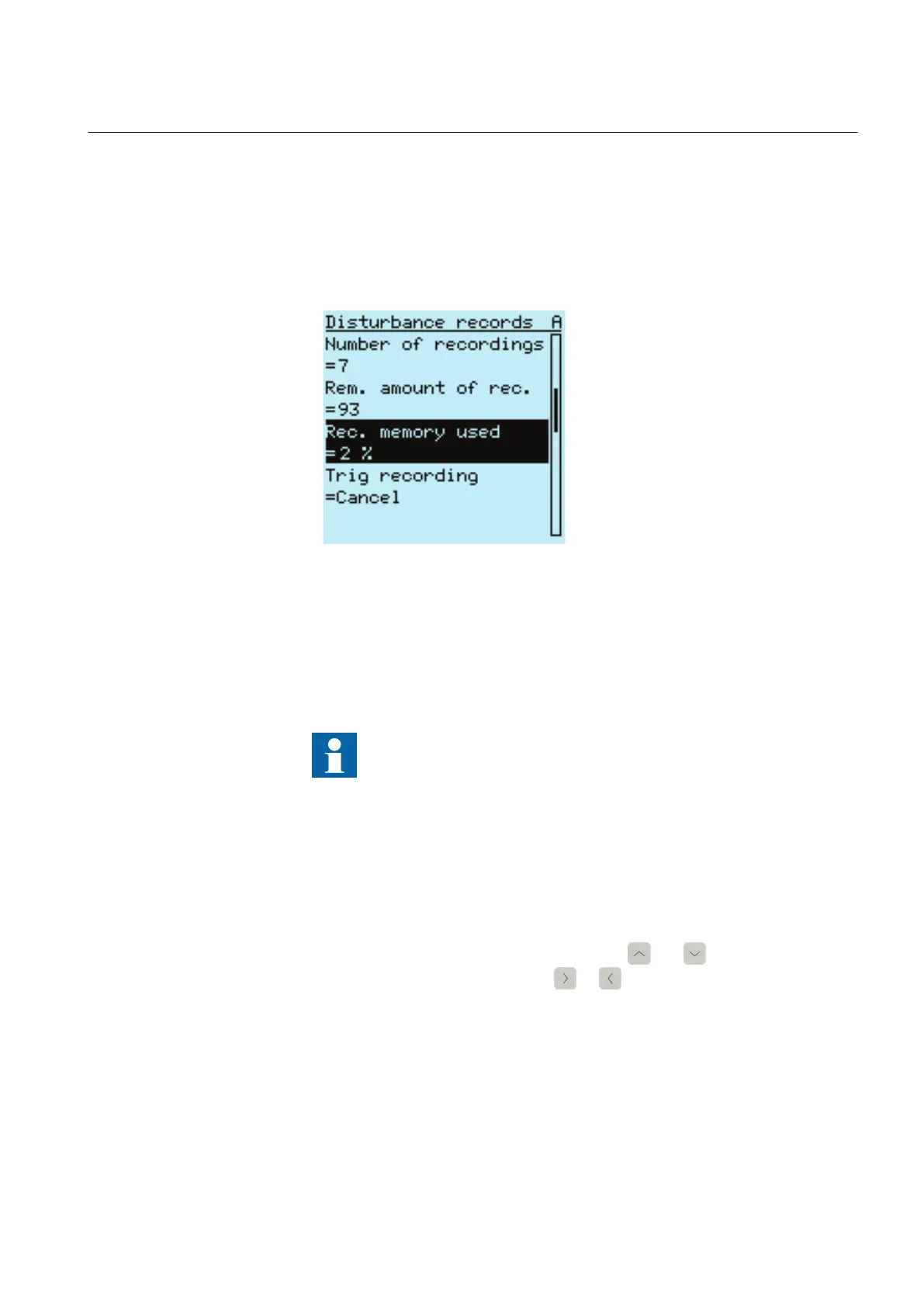

Figure 68: Monitoring disturbance recorder via the LHMI
6.1.3.3 Controlling and reading of disturbance recorder data
Disturbance recorder data can be controlled and read with PCM600. It can also be read
via WHMI.
For more information, see the PCM600 documentation.
6.1.3.4 Monitoring fault records
Timestamps of the fault records are shown as a list. The first fault record is the newest.
1. Select Main Menu/Monitoring/Recorded data/Fault record.
2.
To navigate between the fault records, press and .
3.
To enter or exit a submenu, press or .
1MRS758754 B Section 6
Operating procedures
REC615 and RER615 91
Operation Manual
To Next Page
