GUID-F433CC42-95D1-4F93-A426-E3ED1F65D23C V3 EN

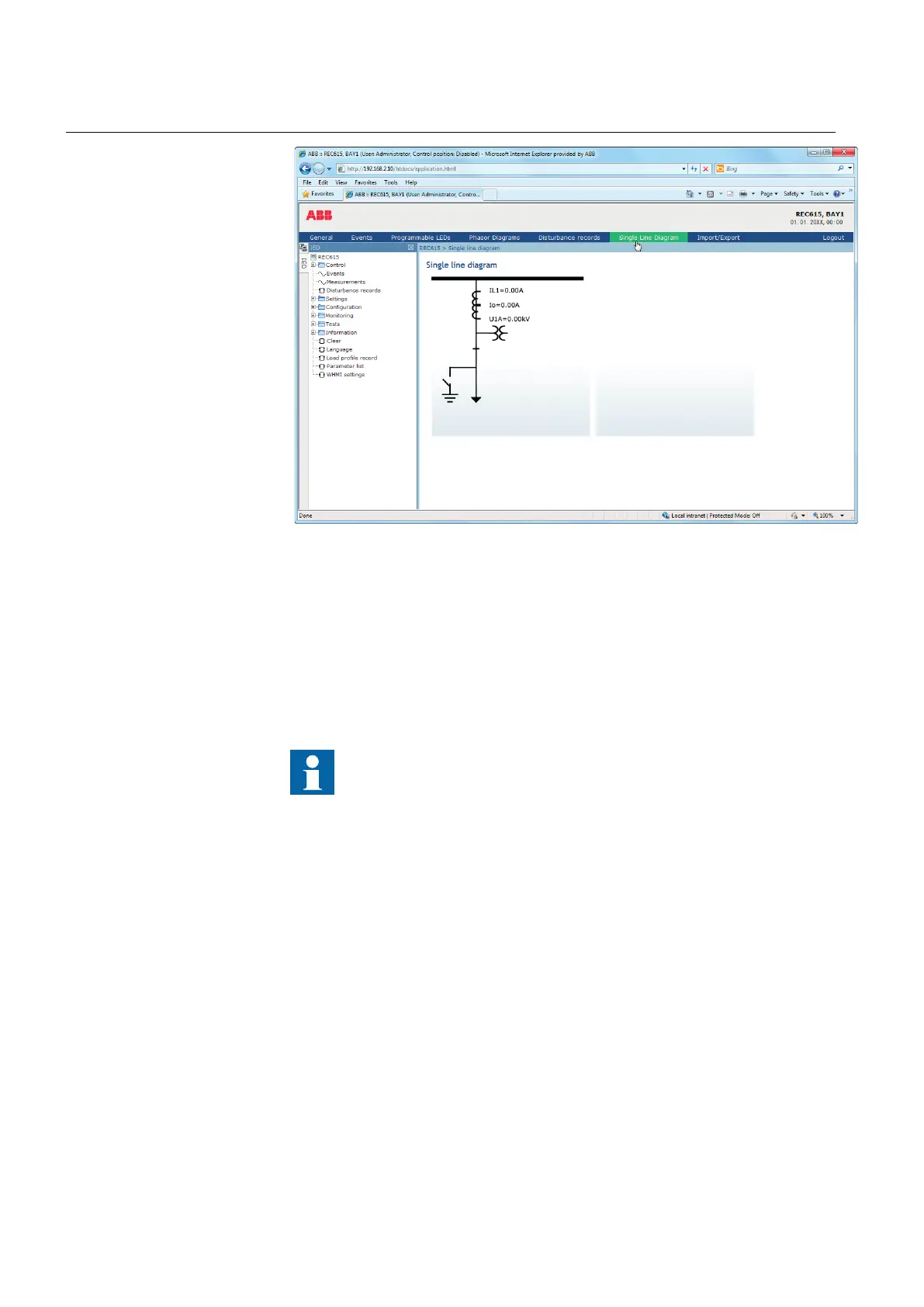

Figure 38: Viewing the single-line diagram with ANSI symbols
4.2.6 Showing parameters
Some function blocks have a function-specific On/Off setting. When the function
setting is “Off”, all settings are hidden and when the function setting is “On”, all
settings are visible based on the other visibility and hiding rules.
Switch a function block on or off via the Operation parameter under
the required function block.
The Parameter list page offers filtering functionality where only chosen parameters
are displayed, saved or printed. There are various options for filtering.
• Enabled settings hides settings of disabled function blocks.
• Writable settings displays only writable settings. This option is checked by
default.
• Basic settings displays only basic settings.
• Setting group displays only settings of the selected setting group. With “All”
selected, all setting groups are displayed.
Options can be combined. For example, with the Enabled settings and Writable
settings selected, only enabled and writable settings are displayed. If none of the
options is selected, all settings are displayed.
Section 4 1MRS758754 B
Using the HMI
62 REC615 and RER615
Operation Manual
