GUID-8D30A0C7-2910-4204-93C4-DE6721AB9105 V2 EN

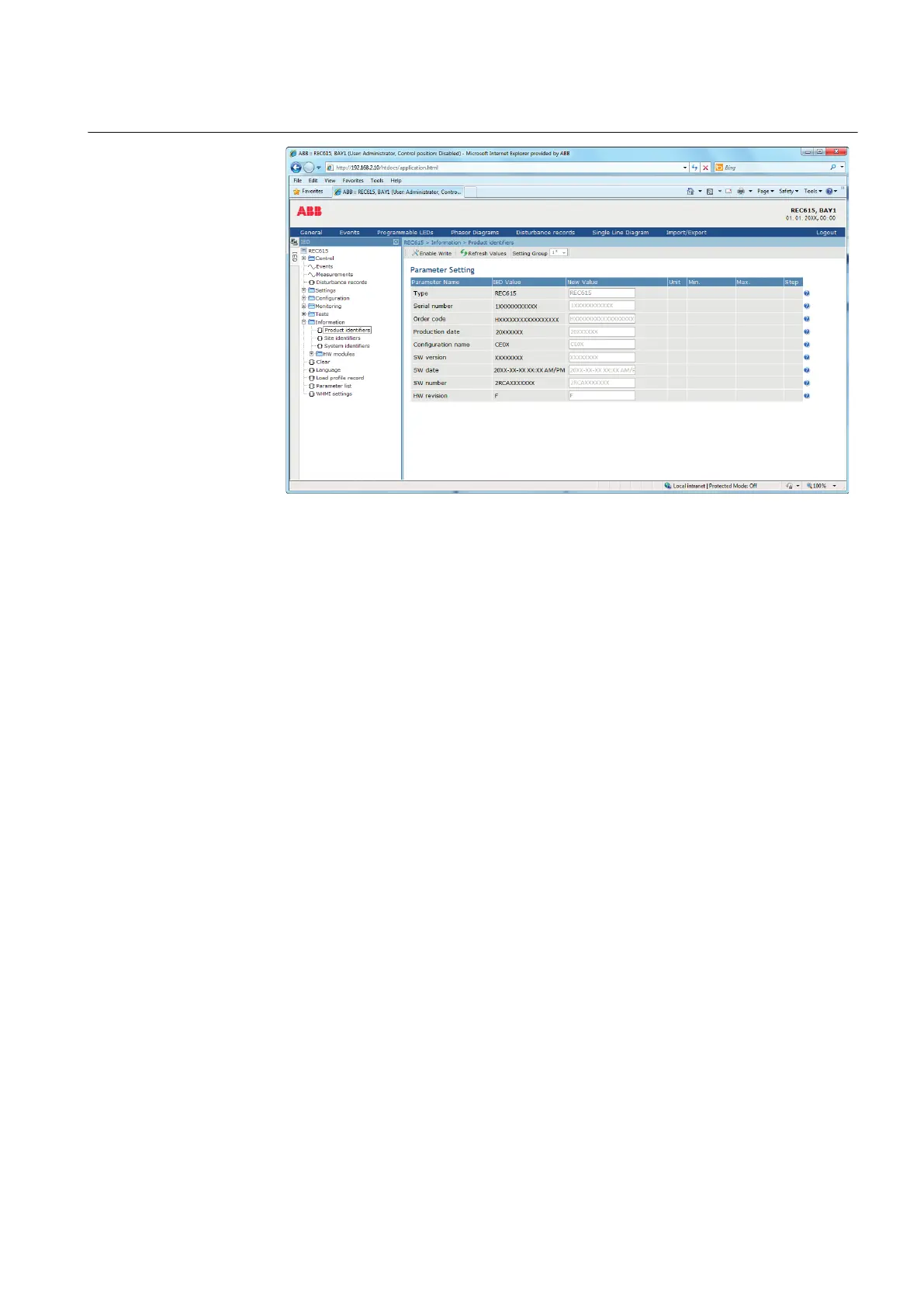

Figure 35: Device information
4.2.4 Navigating in menus
The menu tree structure on the WHMI is almost identical to the one on the LHMI.
• Use the menu bar to access different views.
• The General view shows the protection relay version and status.
• The Events view contains a list of events produced by the application
configuration.
• The Programmable LEDs view shows the status of programmable LEDs.
• The Phasor diagrams view shows phasor diagrams.
• The Disturbance records view shows the list of disturbance records.
• The Fault records view shows the list of fault records.
• The Single Line Diagram view shows the single-line diagram.
• The Report summary page allows to save events, fault records,
disturbance records, the load profile record and the parameter list.
• The Import/Export page allows to import and export parameters settings.
• Logout ends the session.
1MRS758754 B Section 4
Using the HMI
REC615 and RER615 59
Operation Manual
