4.2.17 Exporting report summary
The Report summary page allows exporting events, fault records, disturbance records,
the load profile record and the parameter list. Events, fault records and the parameter
list are saved in TXT format. Saved files contain all events, fault records and
settings.Disturbance records and load profile record files are saved in CFG and DAT
formats.
1. Click Report summary on the menu bar.
2. Select the items to be exported.
Click Select all to select all items and click Clear all to clear all selections.
3. From the Disturbance records drop-down list, select the amount of records to
be saved.
• All
• Last 1
• Last 10
4. Click Save to export the ZIP file with the selected files.
4.2.18 Using Web HMI help
The context-sensitive WHMI help provides information on a single parameter, for
example.
•
Move the mouse over the to display the help dialog box.

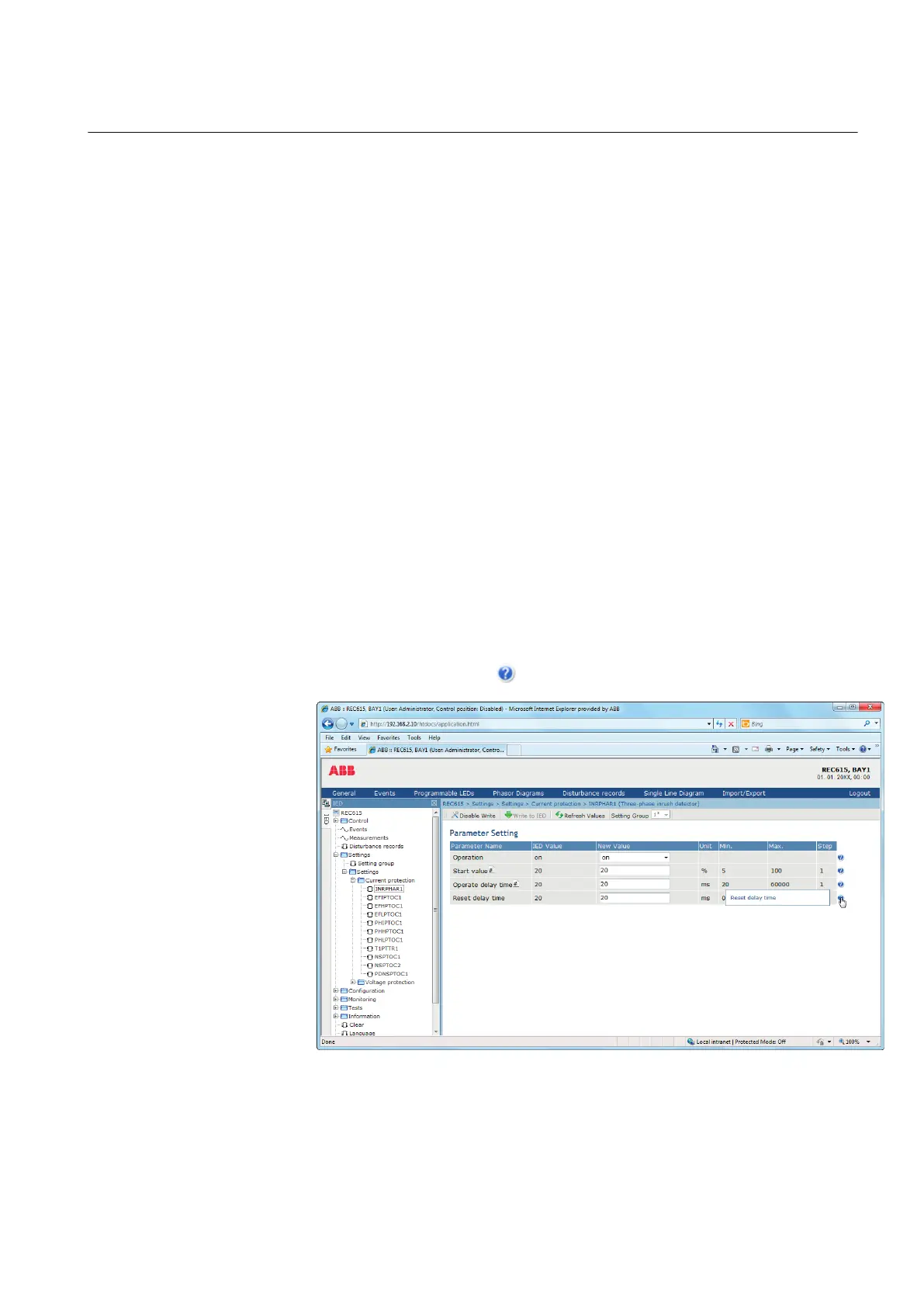

GUID-681DB4E6-C82E-42BA-8FC1-561F3157B63A V2 EN
Figure 64: Opening the WHMI help
1MRS758754 B Section 4
Using the HMI
REC615 and RER615 81
Operation Manual
