Changing the function block on or off affects to the visibility of its
parameters in the menu. Setting function block off hides the function
parameters. When changing function block on or off the parameters'
visibility changes immediately. Commit the settings for the activation
of the function.
Changing the value of certain relay parameters affects the visibility or
range of other parameters in the menu. This indicates which
parameters or parameter values become obsolete due to the change.
The relay changes the visibility or range of these parameters
immediately. Commit the settings for the activation of the function.
4.1.14.1 Editing numerical values
1. Select Main menu/Settings and then a setting.
The last digit of the value is active.
• When the symbol in front of the value is ↑, the active value can only be
increased.
• When the symbol is ↓, the active value can only be decreased.
• When the symbol in front of the value is ↕, the active value can either be
increased or decreased.
A070755 V3 EN

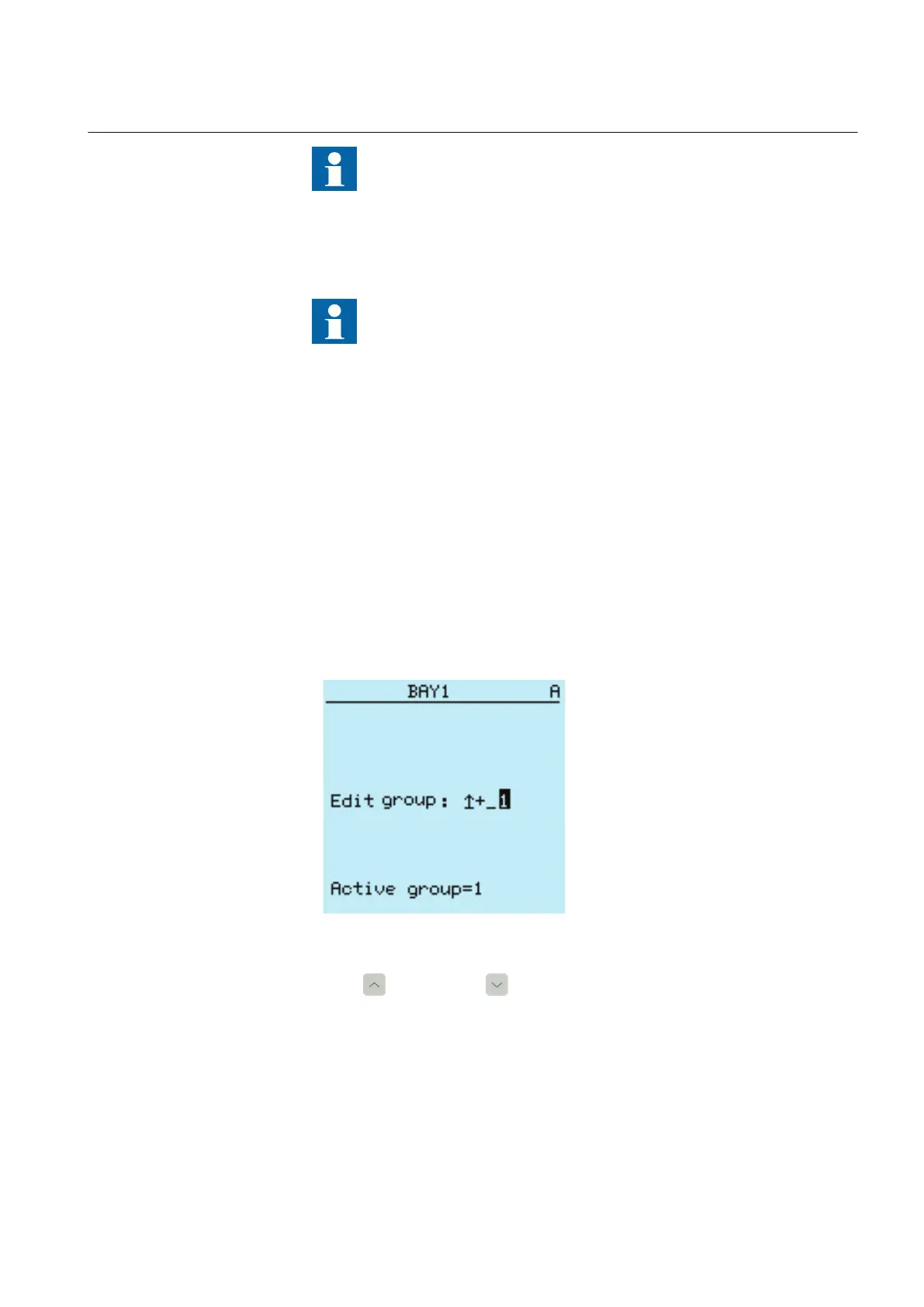

Figure 29: Last digit is active and it can only be increased
2.
Press to increase or to decrease the value of an active digit.
One press increases or decreases the value by a certain step. For integer values,
the change is 1, 10, 100 or 1000 (...) depending on the active digit. For decimal
values, the change can be fractions 0.1, 0.01, 0.001 (...) depending on the active
digit.
1MRS758754 B Section 4
Using the HMI
REC615 and RER615 53
Operation Manual
