4.2.5 Selecting single-line diagram
The single-line diagram is active only when the protection relay is equipped with the
large display variant.
• Select Control/SLD in the left navigation bar or click Single Line Diagram in
the menu bar to view the single-line diagram.
GUID-B6792AC5-F758-4E28-A786-1BB761315407 V3 EN

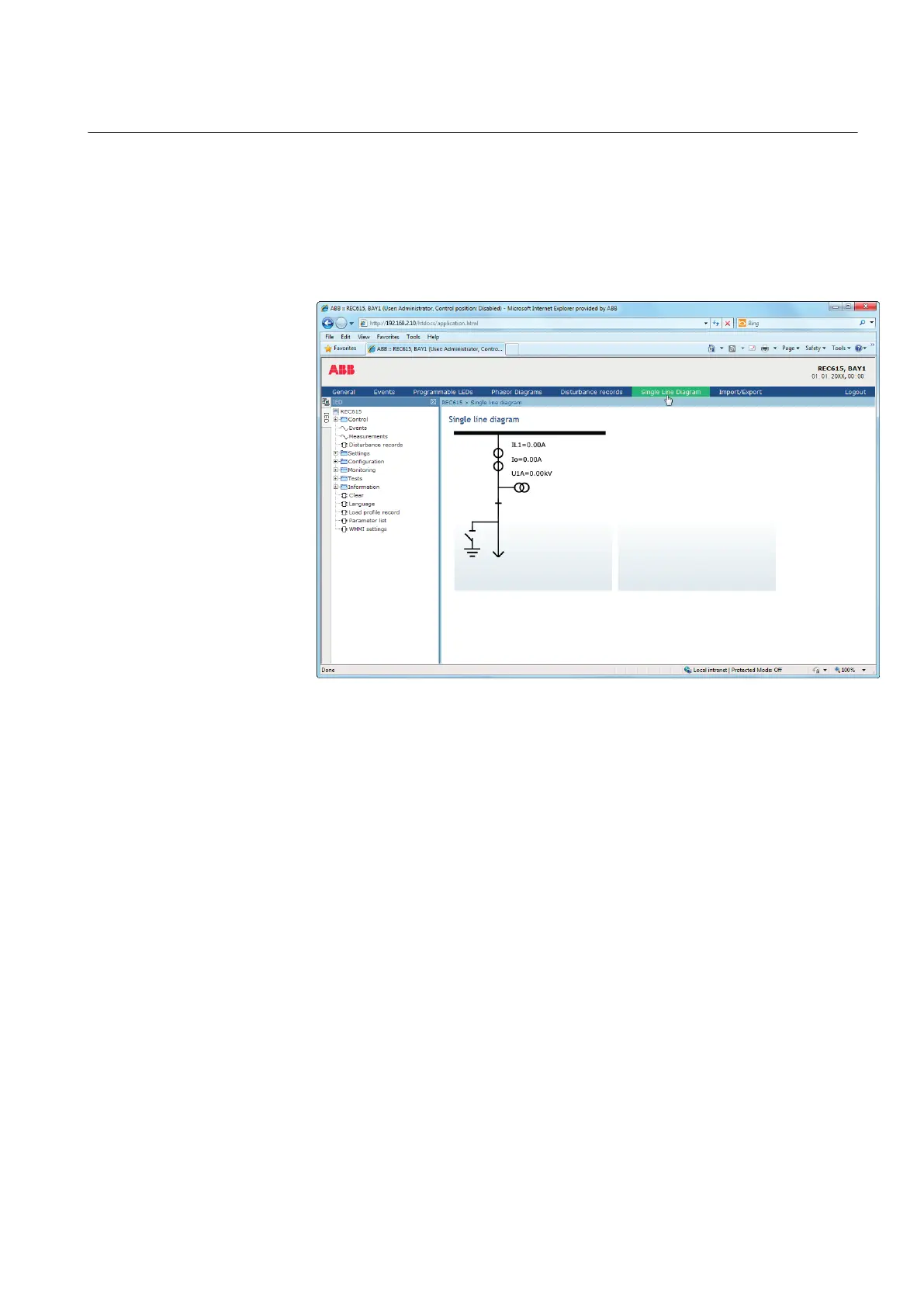

Figure 37: Viewing the single-line diagram with IEC symbols
1MRS758754 B Section 4
Using the HMI
REC615 and RER615 61
Operation Manual
