A071150 V3 EN

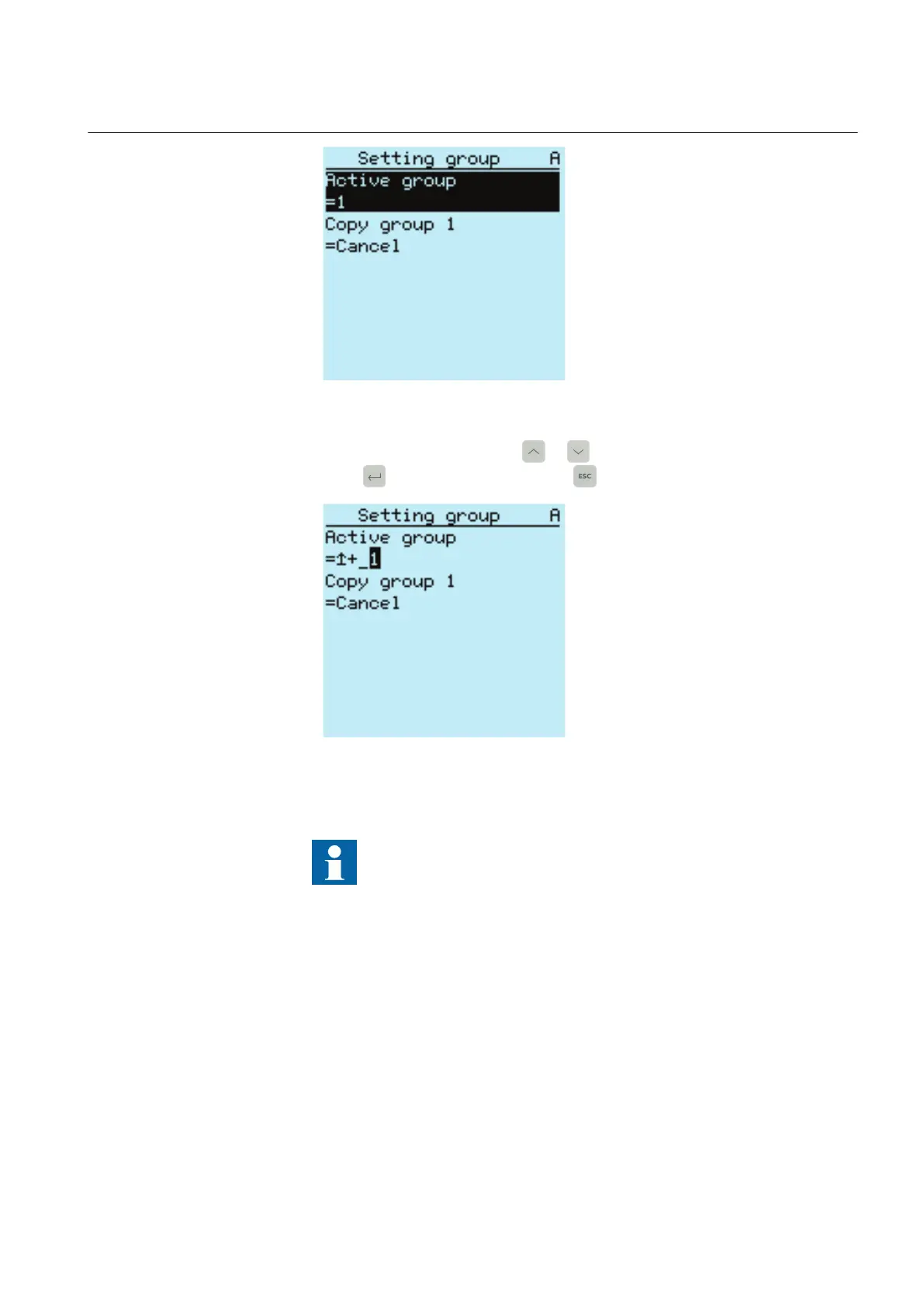

Figure 96: Active setting group
2.
Select the setting group with or .
3.
Press to confirm the selection or to cancel.
A071152 V3 EN
Figure 97: Selecting the active setting group
4. Commit the settings.
Remember to document the changes you make.
8.4.4.2 Relay parametrization
Protection relay parameters are set via the LHMI, WHMI or PCM600.
Setting parameters need to be calculated according to the electrical network
conditions and the electrical characteristics of the protected equipment. The
protection relay's settings need to be verified before the protection relay is connected
to a system.
