Allen-Bradley PowerFlex 20-750-S1 User Manual

Rockwell Automation Publication 750-IN001O-EN-P - October 2014 125
Lift and Mount the Drive Chapter 3

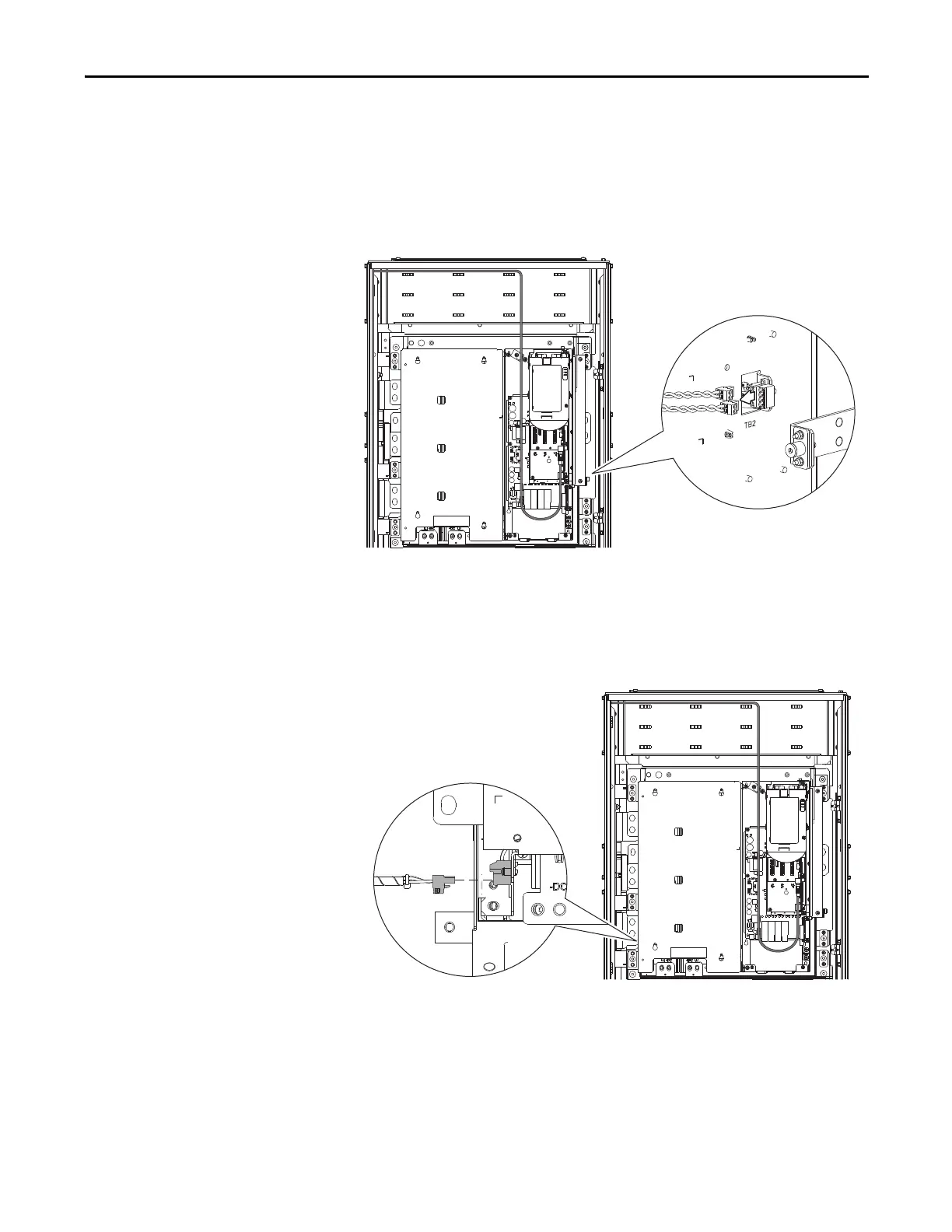

Disconnect Control and
Power Wire Harnesses
AC Input Drives
1. Disconnect the cabinet fan /cabinet blower assembly wiring harness ➊
from TB2-3 and TB2-4.
2. Disconnect the cabinet shunt trip harness ➋ (if used) from TB2-1 and
TB2-2.
Disconnect DC Bus Fuse Wire
Harness
AC Input Drives Floor Mount Frames 9 and Larger
Disconnect the DC Bus wiring harness ➊ from TB6.
➊
➋
➊
