248 Rockwell Automation Publication 750-IN001O-EN-P - October 2014
Chapter 5 I/O Wiring
11-Series I/O Wiring Examples

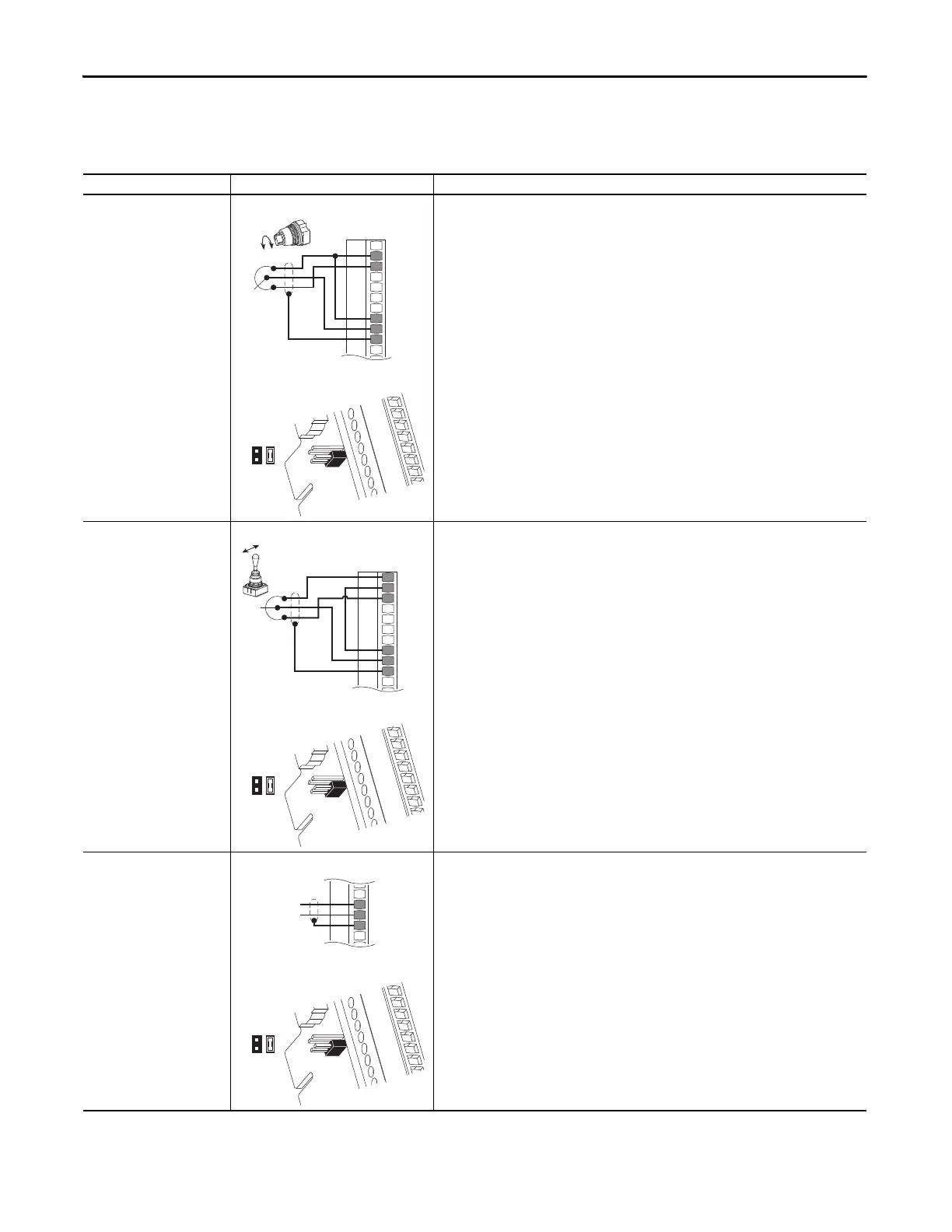

11-Series I/O Module TB1 Wiring Examples
Input/Output Connection Example Required Parameter Changes
Potentiometer Unipolar
Speed Reference
10k Ohm Pot. Recommended
(2k Ohm Minimum)
11-Series I/O Module TB1
• Set Direction Mode
Port 0: P308 [Direction Mode] = 0 “Unipolar”
• Set Selection
Port 0: P545 [Spd Ref A Sel] = Port X (11-Series I/O Module): P50 [Anlg In0 Value]
• Adjust Scaling
Port X (11-Series I/O Module): P51 [Anlg In0 Hi] = 10 Volt
Port X (11-Series I/O Module): P52 [Anlg In0 Lo] = 0 Volt
Port 0: P547 [Spd Ref A AnlgHi] = 60 Hz
Port 0: P548 [Spd Ref A AnlgLo] = 0 Hz
• View Results
Port X (11-Series I/O Module): P50 [Anlg In0 Value]
Port 0: P592 [Selected Spd Ref]
Joystick Bipolar Speed
Reference
±10V Input
11-Series I/O Module TB1
• Set Direction Mode
Port 0: P308 [Direction Mode] = 1 “Bipolar”
• Set Selection
Port 0: P545 [Spd Ref A Sel] = Port X (11-Series I/O Module): P50 [Anlg In0 Value]
• Adjust Scaling
Port X (11-Series I/O Module): P51 [Anlg In0 Hi] = +10 Volt
Port X (11-Series I/O Module): P52 [Anlg In0 Lo] = -10 Volt
Port 0: P547 [Spd Ref A AnlgHi] = +60 Hz
Port 0: P548 [Spd Ref A AnlgLo] = -60 Hz
• View Results
Port X (11-Series I/O Module): P50 [Anlg In0 Value]
Port 0: P592 [Selected Spd Ref]
Analog Input Bipolar Speed
Reference
±10V Input
11-Series I/O Module TB1
• Set Direction Mode
Port 0: P308 [Direction Mode] = 1 “Bipolar”
• Set Selection
Port 0: P545 [Spd Ref A Sel] = Port X (11-Series I/O Module): P50 [Anlg In0 Value]
• Adjust Scaling
Port X (11-Series I/O Module): P51 [Anlg In0 Hi] = +10 Volt
Port X (11-Series I/O Module): P52 [Anlg In0 Lo] = -10 Volt
Port 0: P547 [Spd Ref A AnlgHi] = +60 Hz
Port 0: P548 [Spd Ref A AnlgLo] = -60 Hz
• View Results
Port X (11-Series I/O Module): P50 [Anlg In0 Value]
Port 0: P592 [Selected Spd Ref]
10VC
+10V
Ai0–
Ai0+
Sh
P5
1
2
P4
1
2
–10V
10VC
+10V
Ai0–
Ai0+
Sh
P5
1
2
P4
1
2
P5
1
2
P4
1
2
To Next Page
