I/O Wiring Chapter 5
Common DC Input Drive
Control and Power Terminal
Blocks

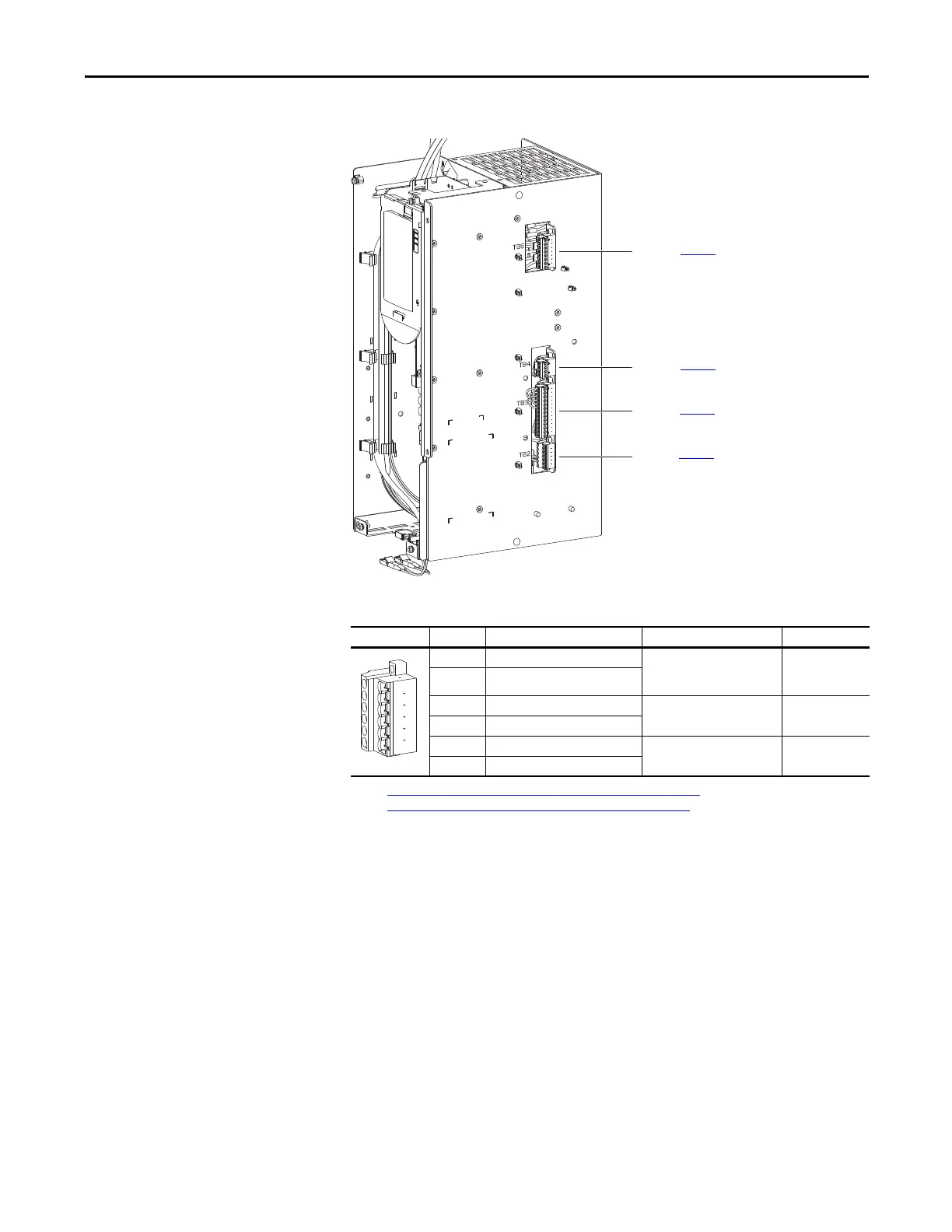

Figure 128 - Floor Mount Frames 8…10
Table 49 - TB2 Terminal Designations
Fixed I/O Terminal Name Description Rating
1 UPS 120VAC IN NEUTRAL Connections for
Uninterruptible Power Supply
(UPS).
(1)
(1) See Uninterruptible Power Supply Connections - Common DC Input Drives on page 239.
N/A
2 UPS 120VAC IN HOT
3 CONTROL 120/240VAC IN NEUTRAL Connections for control power
supply.
(2)
(2) See 120/240V AC Power Supply Connections - Common DC Input Drives on page 240.
N/A
4 CONTROL 120/240VAC IN HOT
5 FAN 240VAC OUT NEUTRAL Connections for cooling fans. 240V AC, 50/60 Hz,
1.4 A, 336 VA
6 FAN 240VAC OUT HOT
Common DC Input Drive Control Panel
TB2 - See Table 49
TB3 - See Table 50
TB4 - See Table 51
TB5 - See Table 52
1
2
3
4
5
6
