Lift and Mount the Drive Chapter 3
Release Floor Mount Drive
Cabinet From Shipping Skid

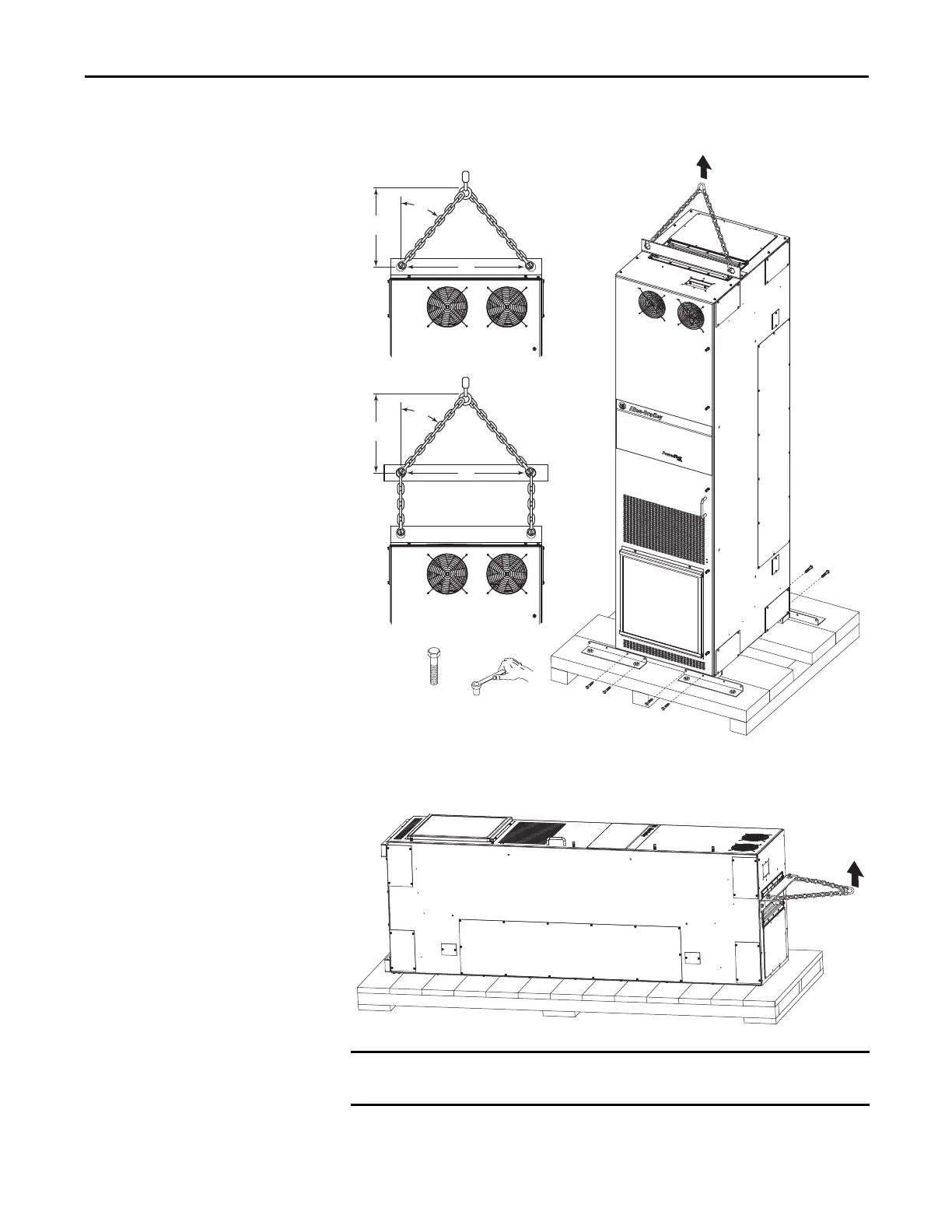

Remove the bolts fastening a vertically oriented drive cabinet to the shipping skid
and lift.
Remove the shipping crate that encloses a horizontally oriented drive cabinet on
the shipping skid and lift.
IMPORTANT
Drives equipped with the MCC bus option, with codes P20, P22, and P24 in the
catalog string, are not to be shipped horizontally.
>
1
/
2 A
A
<45°
>
1
/
2 A
A
<45°
M10 x 25
17 mm
