MVP-9000i 9" Modero® ViewPoint® Touch Panel with Intercom
Panel Statistics - Blinks Tab
The Blinks tab (FIG. 95) collects the number of blink messages received by the device.
Features on this tab include:
Panel Statistics - IP Tab
The IP tab (FIG. 96) displays received and transmitted IP packets. Touch the Refresh button to refresh the page with its
current values.

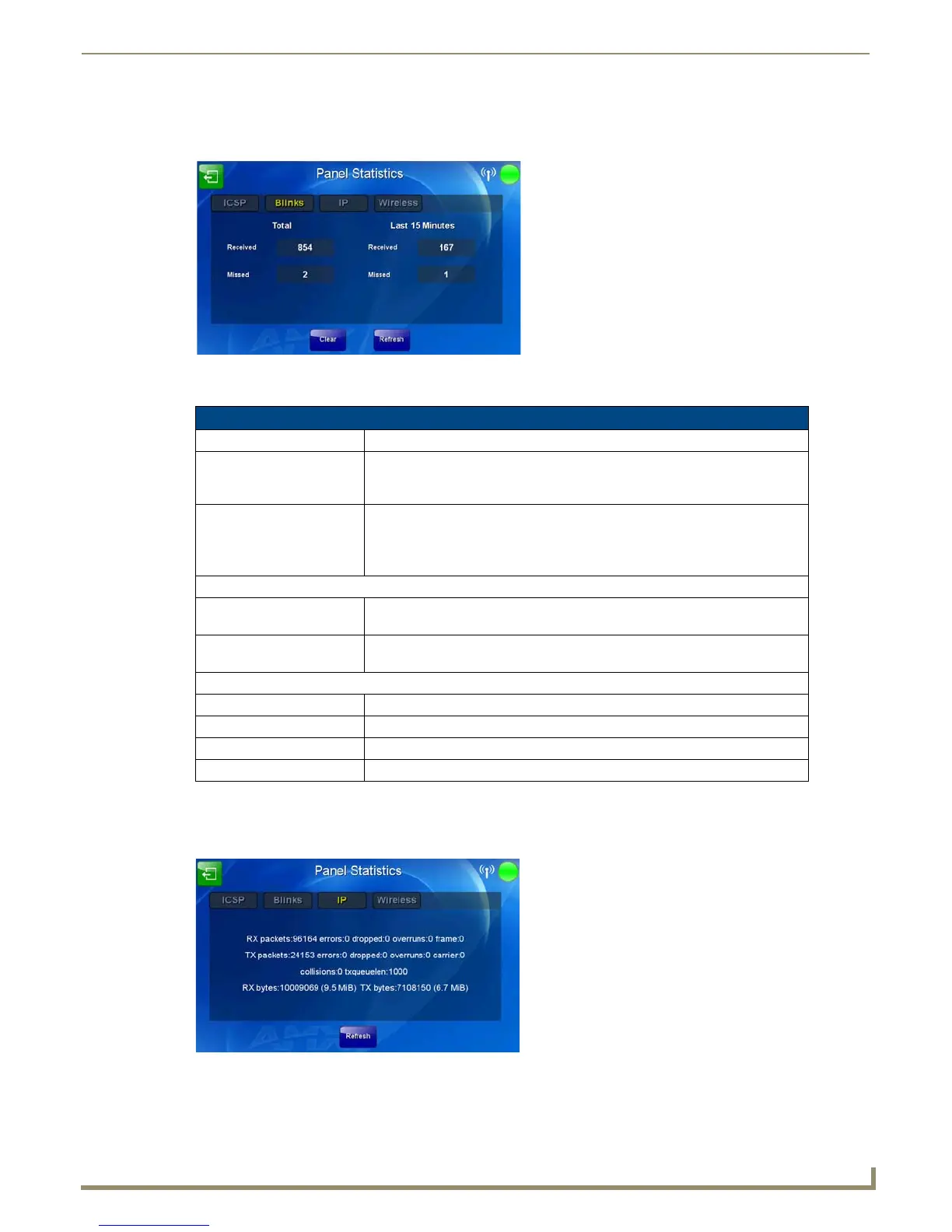

FIG. 95 Panel Statistics - Blinks Tab
Panel Statistics - Blinks Tab
Back: Saves all changes and returns to the previous page.
WiFi/Wired icon: The icon to the left of the Connection Status Icon displays whether the current
connection to the Master is Wireless (image of a radio antenna) or Wired
(image of three networked computers).
Connection Status icon: The icon in the upper-right corner of each Protected Setup page provides a
constant visual indication of current connection status.
Note: a Lock appears on the icon if the panel is connected to a secured NetLinx
Master.
Total:
Received: Lists the number of blink messages received since the last time the page was
cleared.
Missed: Lists the number of blink messages missed since the last time the page was
cleared.
Last 15 Minutes:
Received: Lists the number of blink messages missed within the last 15 minutes.
Missed: Lists the number of blink messages missed within the last 15 minutes.
Clear: Clears all fields on the Blinks tab.
Refresh: Refreshes all data on the Blinks tab.
