MVP-9000i 9" Modero® ViewPoint® Touch Panel with Intercom
Wall Docking Station
While charging the MVP-9000i, the Power-over-Ethernet MVP-WDS-9 Wall/Flush Mount Docking Station provides
fast, reliable wired Ethernet communication to the touch panel. In addition, the MVP-WDS-9 employs a unique, anti-
theft locking mechanism to keep the touch panel safe and secure. With a push of a button, the panel glides forward for
simple removal and transport. The Wall Docking Station is available in either white (FG5967-13) or black (FG5967-
12).
The features of the MVP-WDS-9 include:
Touch panel password feature for security
Integrated docking alignment guides for easy docking.

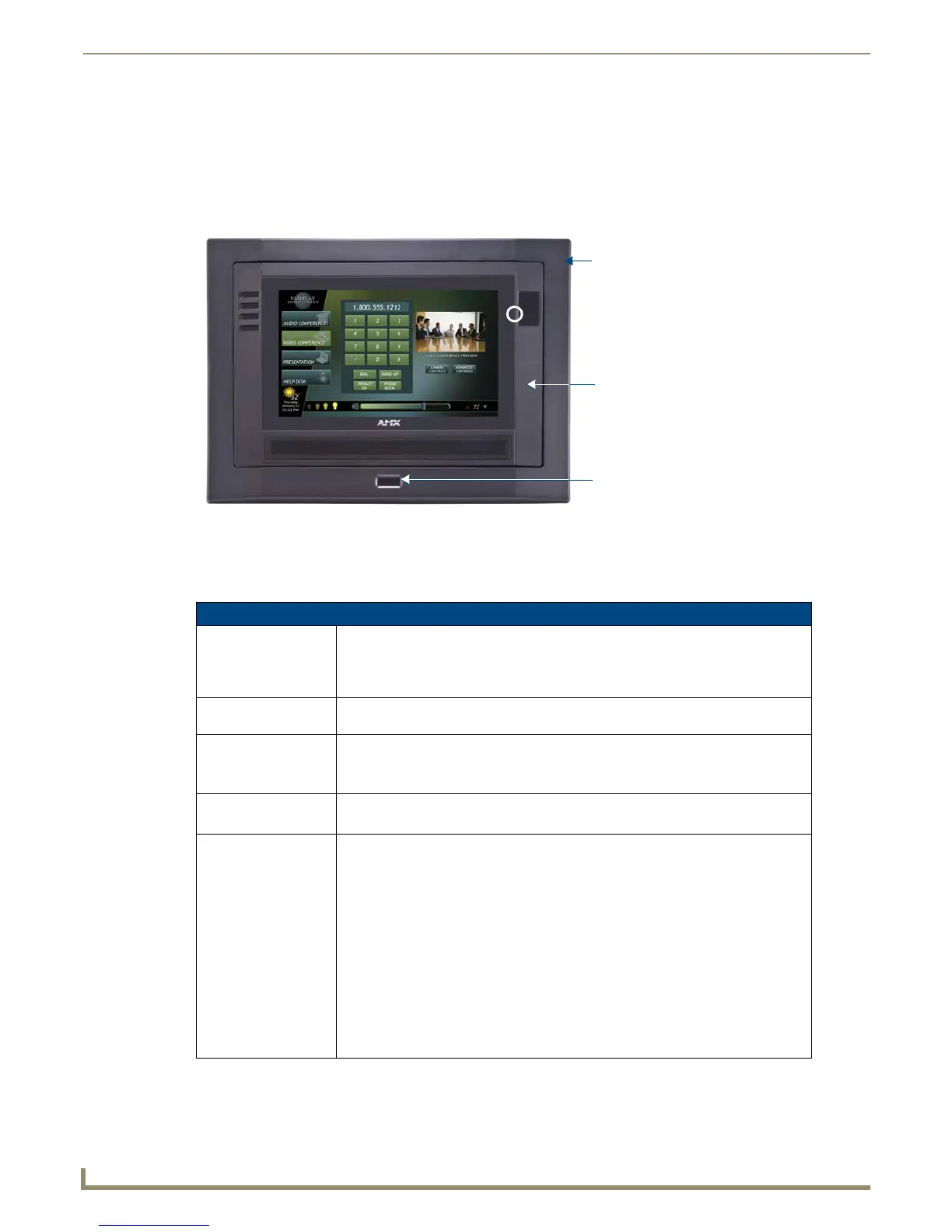

FIG. 10 MVP-WDS-9-GB Wall Docking Station - Front
MVP-WDS-9 Specifications
Dimensions (HWD): • 9.75" x 12.50" x 2.13" (24.77cm x 31.75cm x 5.40cm)
Note: Always use the cutout/installation dimensions for the MVP-WDS-9 when
installing this unit into various surfaces. A cutout template is included with the
device for ease of installation.
Power Requirements: • 30 W (Class II listed power supplemented), supplied via the PS-POE-AT High-
Power PoE Injector.
Startup Power
Requirements
• Cradle and panel (not charging): 16 W
• Cradle and panel (charging): 23 W
• Ejection: 23 W
Weight: • Without back box: 1.50 lbs (0.68 kg)
• With back box: 2.40 lbs (1.09 kg)
Front Panel
Components:
• Securing Magnets: Secures MVP touch panel during ejection.
• Security Latch: Adds the primary layer of security when mounting an MVP touch
panel. When the device is inserted, this latch grabs onto the rear of the touch panel
and secures it to prevent it from inadvertently being removed.
• Interface Connector: A set of contacts that connect to the underside MVP
connector strip. This connection provides both communication and power between
the touch panel and the MVP-WDS-9.
• Support Cradle: This retractable mechanism supports a resting MVP panel and
allows a user to either insert or remove a connected MVP panel.
• Security Release pushbutton: Located on the front of the unit, this pushbutton
toggles an on-screen security keypad if security is enabled.
- Entering the correct release code allows the MVP-WDS-9 to release the touch
panel from the security latch.
Security Release button
MVP-9000i
MVP-WDS-9
