IR Communication
In certain situations, the MVP-9000i may be used as an infrared remote device for other AMX controllers. The device
can transmit IR over 20 feet (6.10 m) from the panel at AMX frequencies of 38KHz and 455KHz, and third-party device
frequencies between 20KHz and 120KHz. IR receivers and transmitters on G4 panels share the device address number of
the panel.
The MVP-9000i includes an IR transmitter for communication between the device and the NetLinx Master and between
separate devices. The transmitter is located behind the IR Emitter Panel on the rear of the device (FIG. 22).
Modero Setup and System Settings
All AMX Modero panels, including the MVP-9000i, feature on-board Setup pages. Use the options in the Setup pages to
access panel information and make various configuration changes.
Accessing the Setup and Protected Setup Pages
1.
At any time, hold the bottom left capacitive touch button and the bottom of the directional pad for 3 seconds.
Alternately, press the Reset button on the left side of the device and hold it for 6 seconds. (For more information,
please refer to the Accessing the Setup pages section on page 43.) This opens the Setup page (FIG. 23).

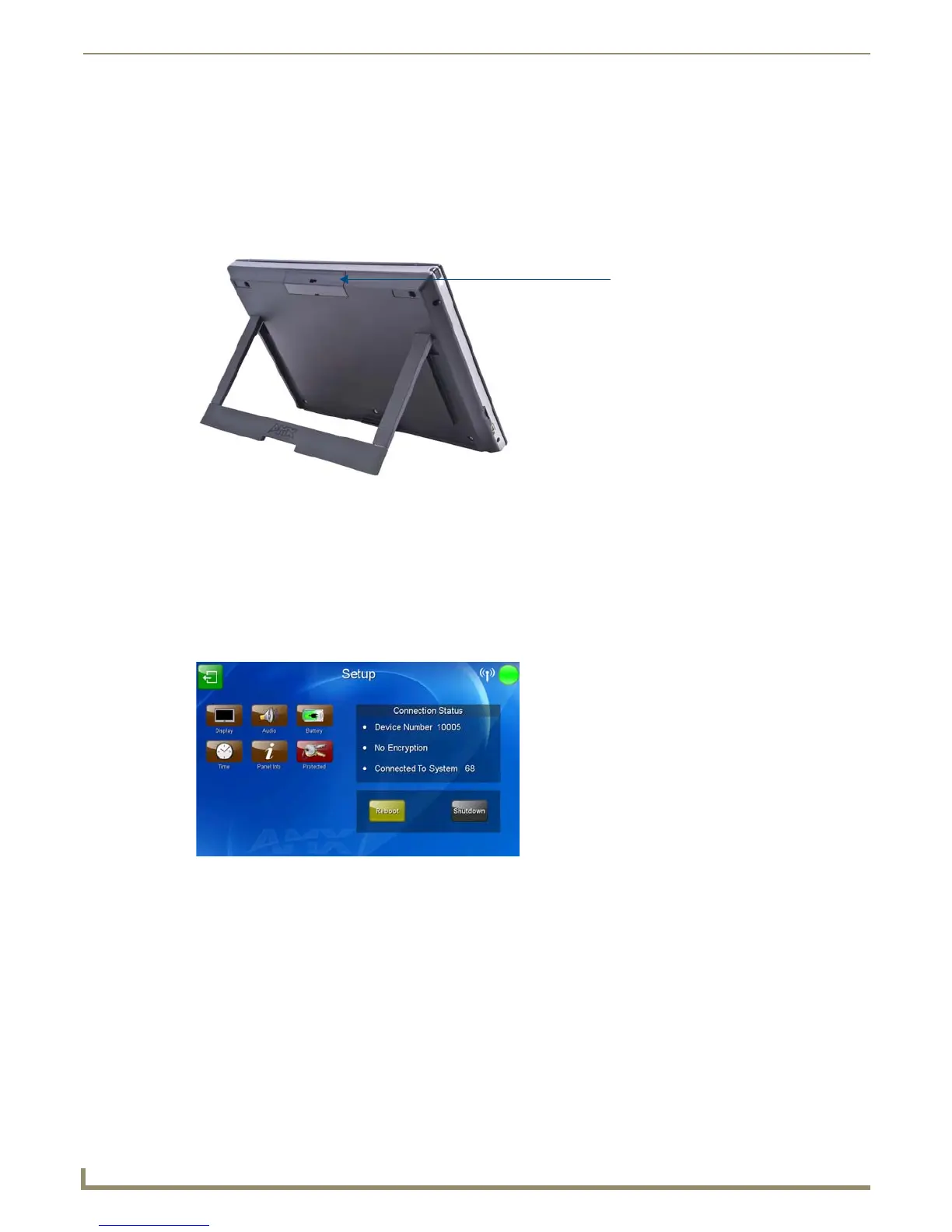

FIG. 22 IR transmitter window on the MVP-9000i-GB
FIG. 23 Setup page
To Next Page
