Setup Pages
43
MVP-9000i 9" Modero® ViewPoint® Touch Panel with Intercom
Setup Pages
Overview
The MVP-9000i features on-board Setup pages. Use the options in the Setup pages to access panel information and make
various configuration changes.
Accessing the Setup pages
To access the Setup pages, hold the bottom left capacitive touch button and the bottom of the directional pad (FIG. 1) for
3 seconds. Release the buttons as soon as the green popup window appears. Alternately, press the Reset button on the left
side of the MVP-9000i with the stylus for 6 seconds (FIG. 48).
The Reset button allows access to three different modes. Pressing and holding for 6 seconds opens the Setup page.
Continuing to hold for a total of 9 seconds opens the Calibrate page (page 82). Holding the Reset button for 12 seconds
will put the device into Shutdown Mode.
Landscape and Portrait Mode Setup Pages
If desired, the MVP-9000i may be switched between landscape and portrait orientation modes via the System & Panel
Options page in the Protected Setup pages (page 60). Separate TPDesign4 files must be downloaded for each mode.
These files are available at www.amx.com.
To switch between Landscape and Portrait Mode, please refer to the System & Panel Options page on page 60.
Setup Page
The Setup page (FIG. 49) allows quick access to several essential panel properties:

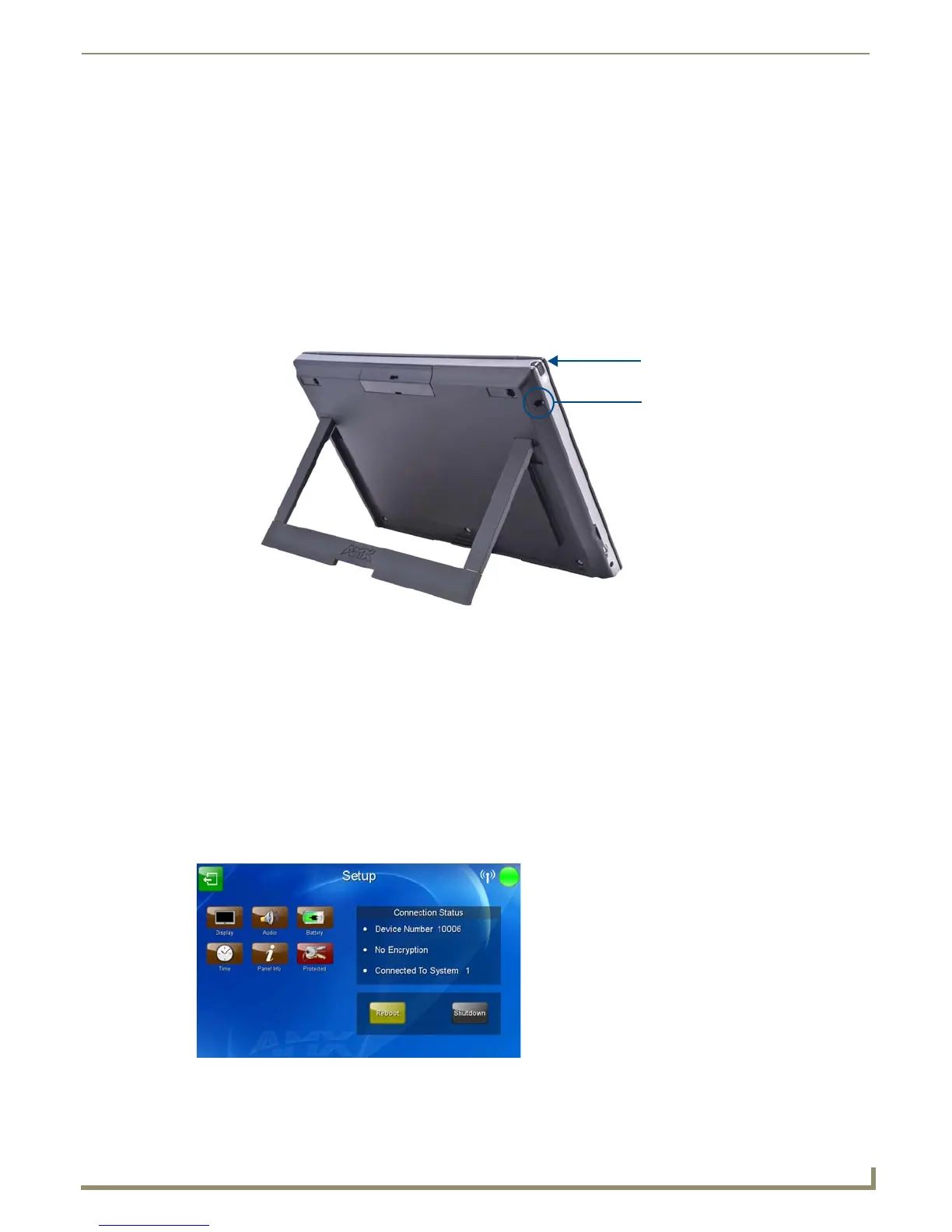

FIG. 48 Setup Page Access on the MVP-9000i
FIG. 49 MVP-9000i Setup page
