MVP-9000i 9" Modero® ViewPoint® Touch Panel with Intercom
A Note About Wall and Rack Installation
Some products are installed in areas of differing temperature and cooling methodologies. These include products
installed in walls, racks, cabinets, etc. Those areas may have different temperatures and/or cooling approaches that must
be taken into consideration to maintain the product within the specified operating temperature.
FIG. 13 shows an AMX device installed in a wall with a filled volume (such as with insulation or concrete), as well as
with a closed volume (such as between studs in an otherwise finished wall). The diagram shows how heat generated by
the device or other devices may have no way to escape, and may build up to levels that may affect device operation.
In FIG. 14, the diagram displays an AMX device in a typical rack mounting, with full air circulation around the front and
back of the device. In this case, the main concern is with heat building up between components, possibly to levels that
may affect device operation.
Installation Recommendations

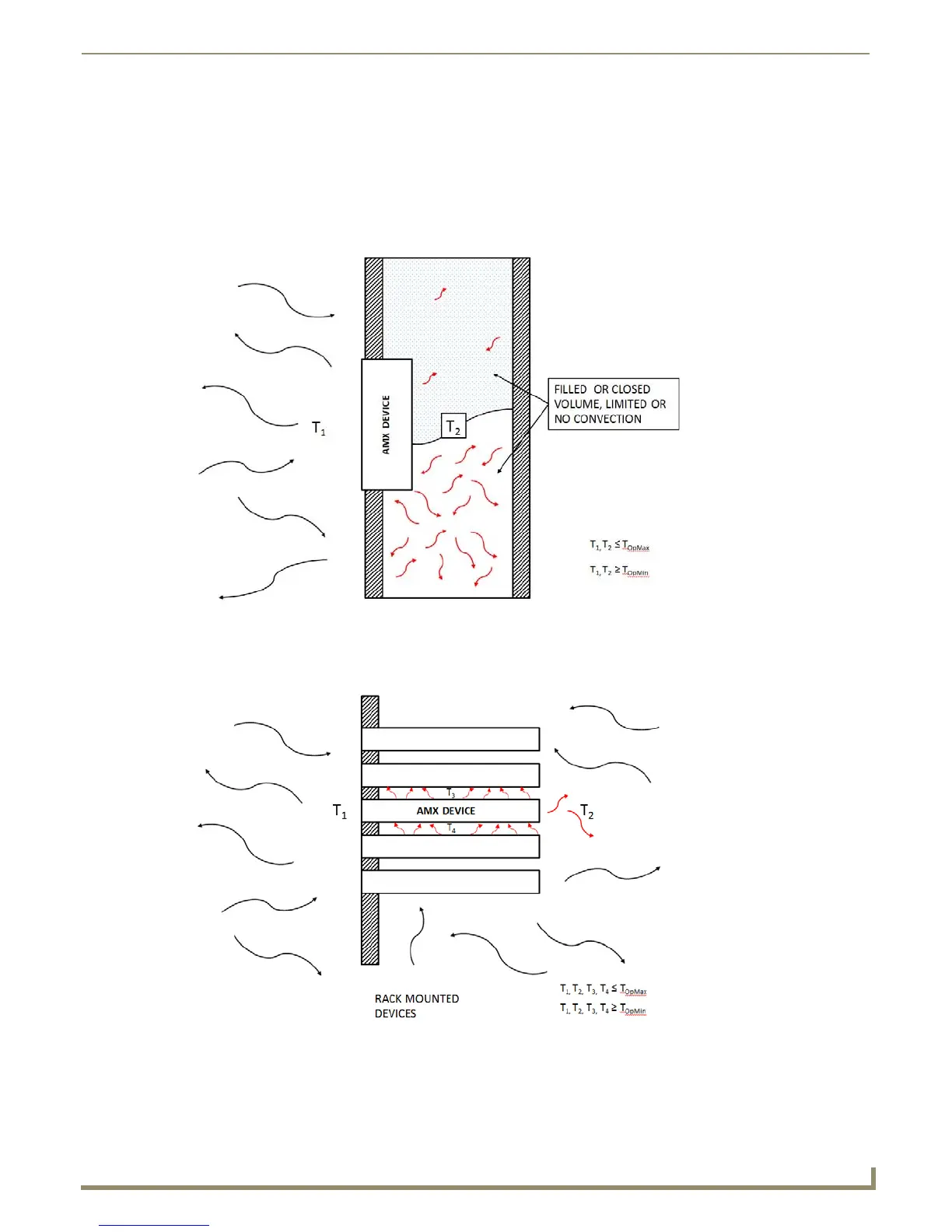

FIG. 13 Heat convection in filled or closed volume, limited or no convection
FIG. 14 Heat convection in rack-mounted devices
