Protected Setup Pages
90
MVP-9000i 9" Modero® ViewPoint® Touch Panel with Intercom

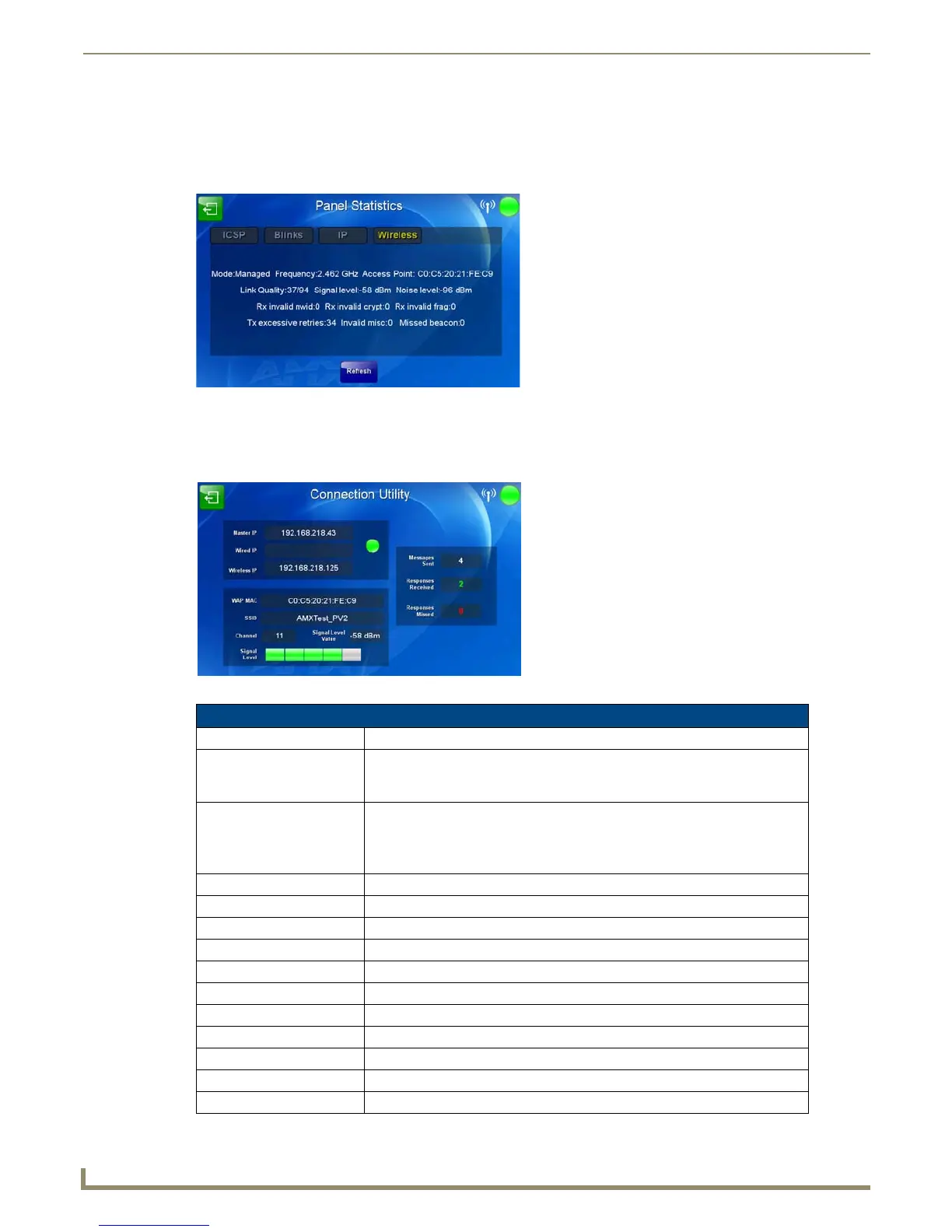

Panel Statistics - Wireless Tab
The Wireless tab (FIG. 96) displays the MVP-9000i’s wireless access statistics, including the wireless mode, the
frequency used, and the latest used access point. Touch the Refresh button to return the counters to their placement
before the latest update.
Connection Utility Page
The Connection Utility page (FIG. 98) displays the current wired and wireless connection information, including the
latest link quality and signal strength information.
FIG. 97 Panel Statistics - Wireless Tab
FIG. 98 Connection Utility Page
Connection Utility Page
Back: Saves all changes and returns to the previous page.
WiFi/Wired icon: The icon to the left of the Connection Status Icon displays whether the current
connection to the Master is Wireless (image of a radio antenna) or Wired
(image of three networked computers).
Connection Status icon: The icon in the upper-right corner of each Protected Setup page provides a
constant visual indication of current connection status.
Note: a Lock appears on the icon if the panel is connected to a secured NetLinx
Master.
Master IP: The IP address for the network’s Master.
Wired IP: The IP address used by the device for wired connections.
Wireless IP: The IP address used by the device for wireless connections.
WAP MAC: The AP’s MAC address.
SSID: Displays the currently used SSID of the target AP.
Channel: The channel being used for the current connection.
Signal Level Value: Displays the current value of the target AP signal.
Signal Level: Displays the current strength of the target AP signal.
Messages Sent: Lists the number of queries sent to the AP.
Responses Received: Lists the number of responses received from the AP.
Responses Missed: Lists the number of responses missed by the AP.
