BMW R 1200R 2015 User Manual

Warning lights
Display

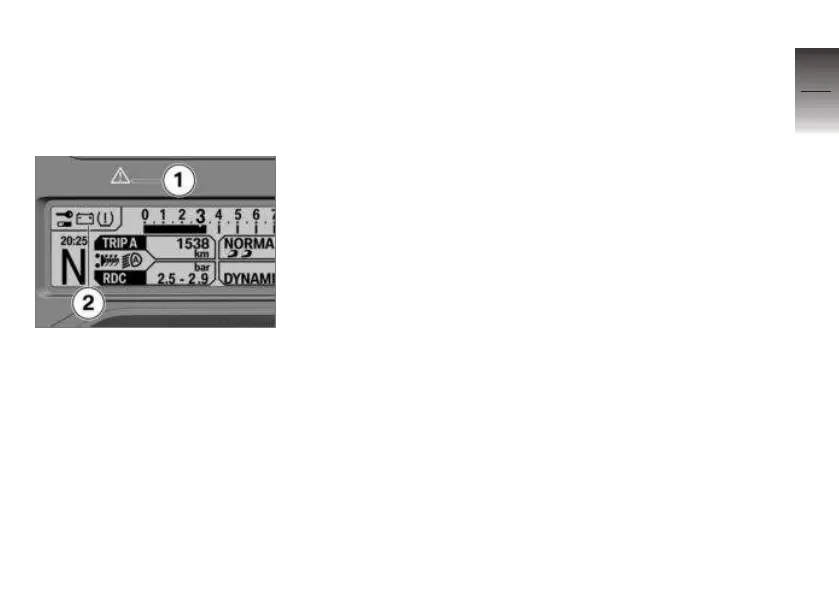

Warnings are displayed with ap-
propriate warning lights.
Warnings for which no sepa-
rate warning light is available are
shown with the general warning
light 1 with up to three warn-
ing symbols at position 2, which
appear from right to left. These
are displayed sorted by prior-
ity. The highest priority is on the
right. The universal warning light
lights up in either yellow or red
depending on the urgency of the
warning.
If several warnings are active, the
three warnings with the highest
priority are displayed. You will
find an overview of the potential
warnings on the following pages.
3
25
z Displays

BMW R 1200R 2015 Specifications

General

Displacement	1170 cc
Bore x Stroke	101 mm x 73 mm
Max Power	92 kW (125 hp) at 7, 750 rpm
Max Torque	125 Nm at 6, 500 rpm
Compression Ratio	12.5:1
Fuel System	Electronic intake pipe injection
Transmission	6-speed
Final Drive	Shaft drive
Rear Brakes	Single disc brake, diameter 276 mm, double-piston floating caliper
ABS	BMW Motorrad ABS
Fuel Capacity	18 liters
Length	2, 145 mm
Wheelbase	1, 495 mm
Engine Type	Air/liquid-cooled four stroke flat twin engine, double overhead camshaft, one balance shaft
Frame	Two-section frame
Front Suspension	Telescopic fork
Rear Suspension	Cast aluminium single-sided swing arm with BMW Motorrad Paralever
Front Brakes	Twin disc brake, floating brake discs, diameter 320 mm, four-piston radial calipers
Seat Height	790 mm
Weight	231 kg
Top Speed	200 km/h
