Configuring Device Security
Defining Access Control
ESW 500 Series Switches Administration Guide 150
5

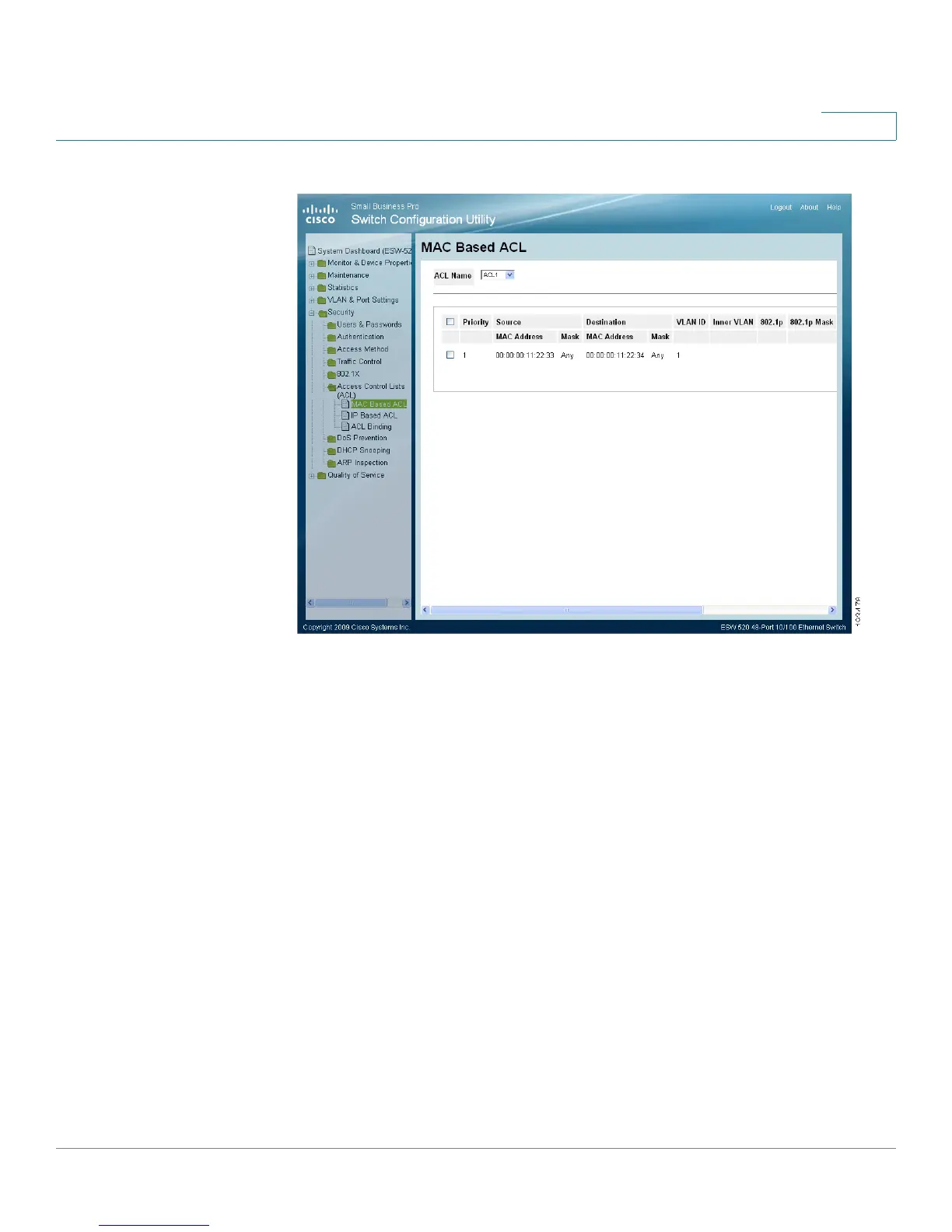

MAC Based ACL Page
The
MAC Based ACL Page
contains the following fields:
• ACL Name — Displays the user-defined MAC based ACLs.
• Priority — Indicates the ACE priority, which determines which ACE is matched
to a packet on a first-match basis. The possible field values are 1-2147483647.
• Source MAC Address — Defines the source MAC address to match the ACE.
• Source MAC Mask — Defines the source MAC mask to match the ACE.
• Destination MAC Address — Defines the destination MAC address to match
the ACE.
• Destination MAC Mask — Defines the destination MAC mask to the which
packets are matched.
• VLAN ID — Matches the packet’s VLAN ID to the ACE. The possible field values
are 1 to 4093.
• Inner VLAN — Matches the ACE to the inner VLAN ID of a double tagged
packet.
• 802.1p — Displays the packet tag value.
