Viewing Statistics

Managing RMON Statistics

ESW 500 Series Switches Administration Guide 395

Viewing RMON Statistics

The

RMON Statistics Page

contains fields for viewing information about device

utilization and errors that occurred on the device.

To view the RMON statistics:

STEP 1 Click Statistics > RMON (Remote Management) > Statistics. The

RMON Statistics

Page

opens:

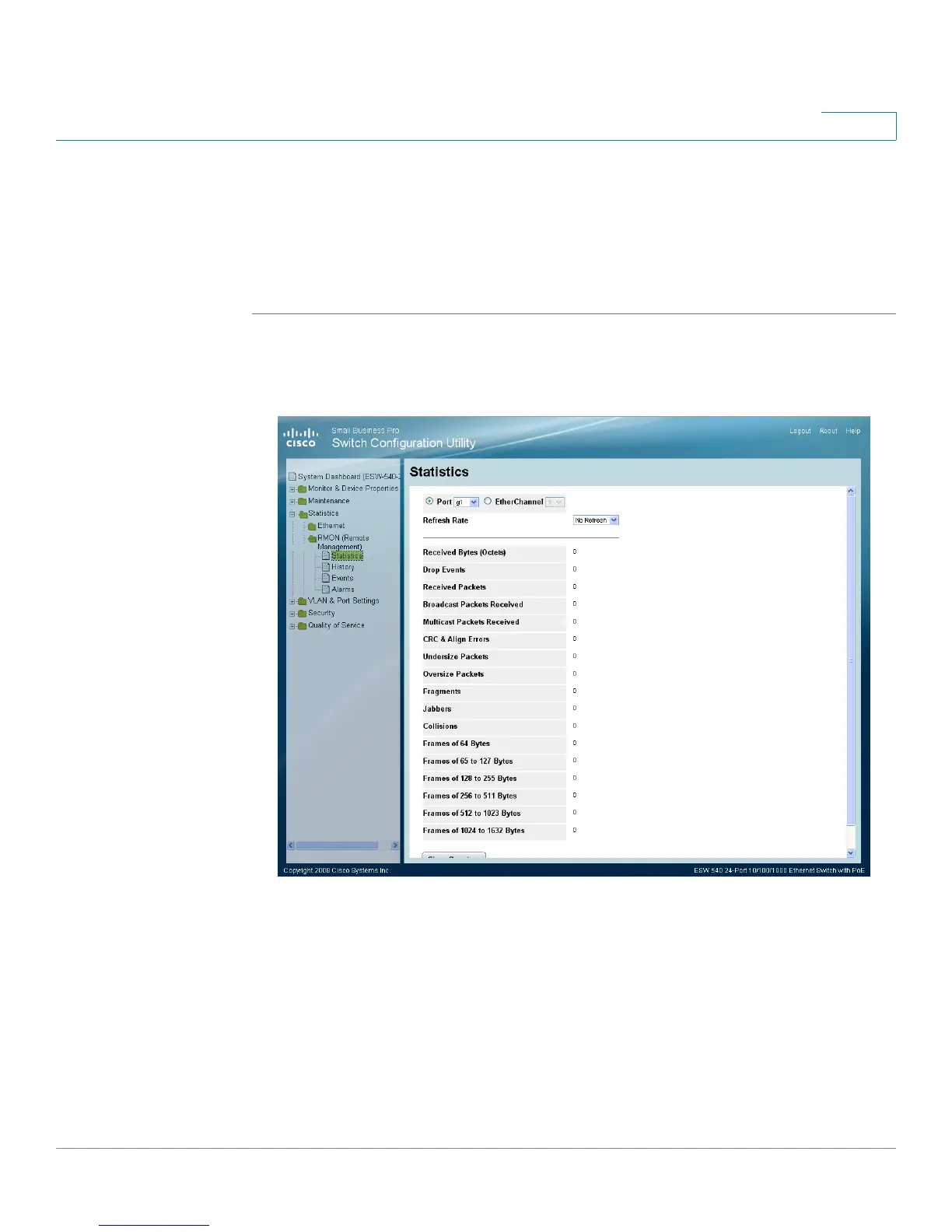

RMON Statistics Page

The

RMON Statistics Page

contains the following fields:

• Port

— Defines the specific port for which RMON statistics are displayed.

• EtherChannel

— Defines the specific EtherChannel for which RMON statistics

are displayed.

• Refresh Rate — Defines the amount of time that passes before the interface

statistics are refreshed. The possible field values are:
