Configuring Device Security

Defining Dynamic ARP Inspection

ESW 500 Series Switches Administration Guide 193

STEP 1 Click Security > ARP Inspection > Properties. The

ARP Inspection Properties Page

opens:

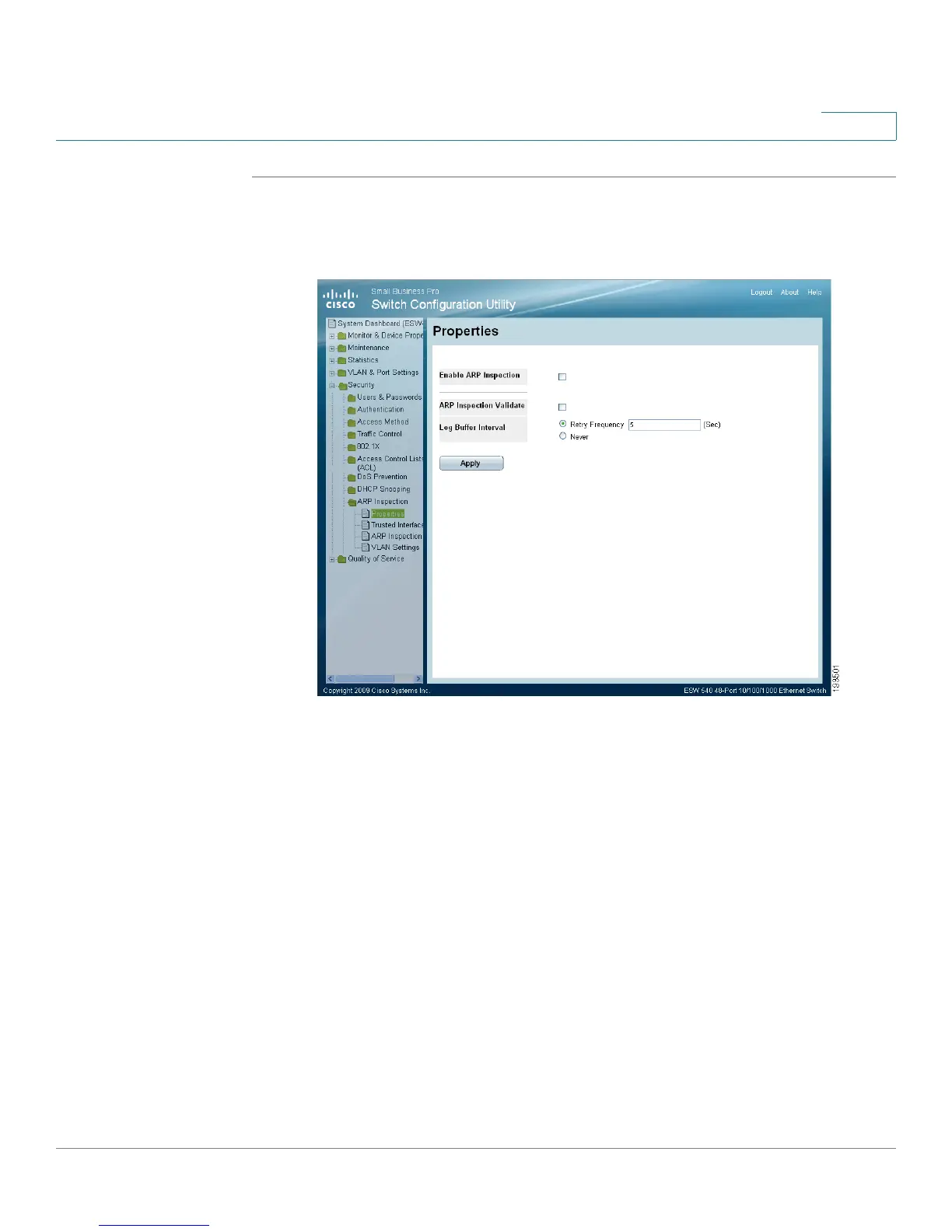

ARP Inspection Properties Page

The

ARP Inspection Properties Page

contains the following fields:

• Enable ARP Inspection — Enables ARP Inspection on the device. The possible

field values are:

Checked

— Enables ARP Inspection on the device.

Unchecked

— Disables ARP Inspection on the device. This is the default

value.

• ARP Inspection Validate — Enables ARP Inspection Validation on the device.

The possible field values are:

Checked

— Enables ARP Inspection Validation on the device. Source

MAC, Destination MAC, and IP addresses are checked in ARP requests

and responses.

Unchecked

— Disable ARP Inspection Validation on the device. This is

the default value.

Default Chapter3
