Configuring VLANs
Defining a Protocol Port
ESW 500 Series Switches Administration Guide 228
7
STEP 1 Click VLAN & Port Settings > VLAN Management > Protocol Port. The Protocol
Port
Page opens:

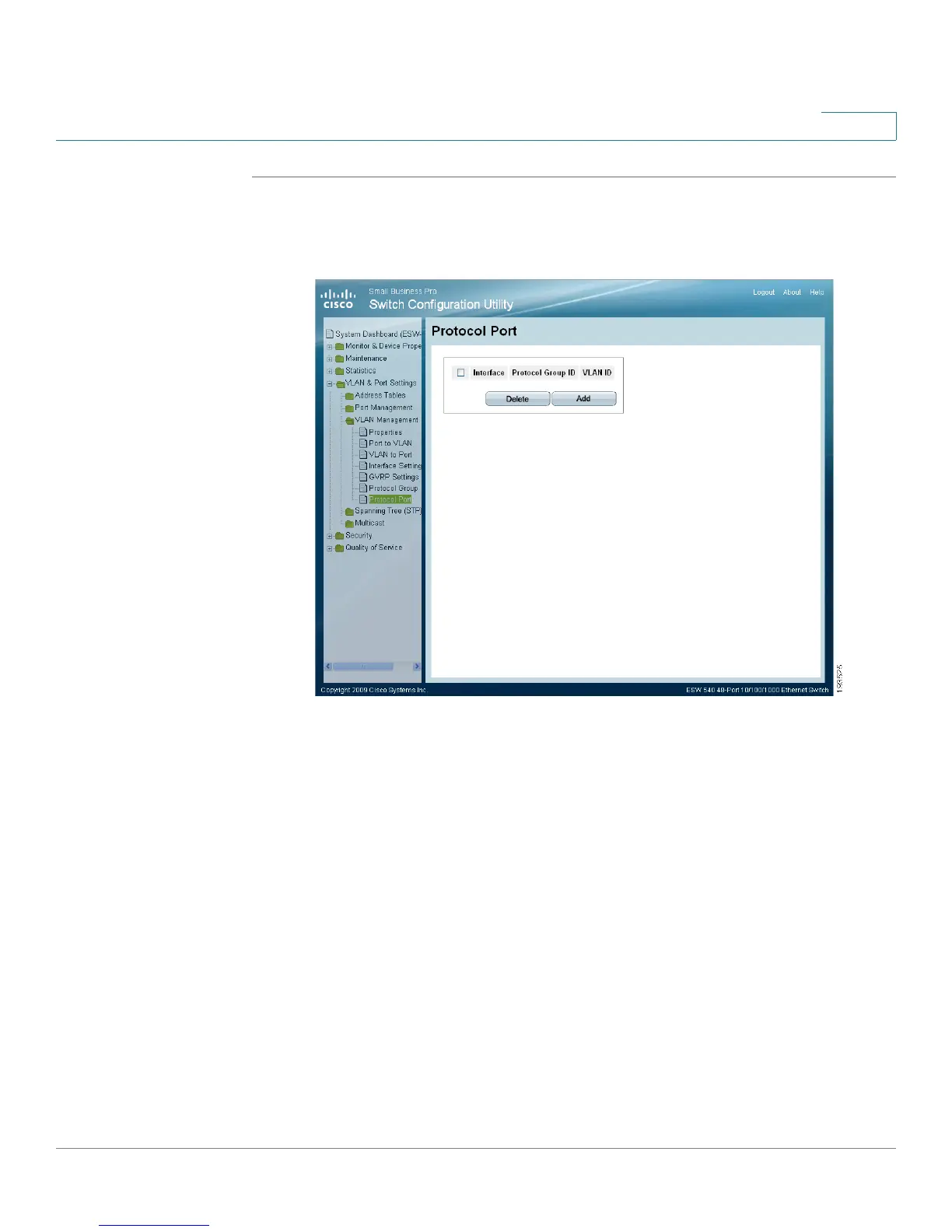

Protocol Port Page
The
Protocol Port Page contains the following fields.
• Interface — Port or EtherChannel number added to a protocol group.
• Protocol Group ID — Protocol group ID to which the interface is added.
Protocol group IDs are defined in the Protocol Group Table.
• VLAN ID — Attaches the interface to a user-defined VLAN ID. Protocol ports
can either be attached to a VLAN ID or a VLAN name.
STEP 2 Click the Add Button. The Add Protocol Port to VLAN Page opens:
The
Add Protocol Port to VLAN Page provides parameters for adding protocol
port configurations.
