Configuring Spanning Tree
Defining Spanning Tree Interface Settings
ESW 500 Series Switches Administration Guide 268
11
STEP 1 Click VLAN & Port Settings > Spanning Tree (STP) > Interface Settings. The STP
Interface Settings Page opens:

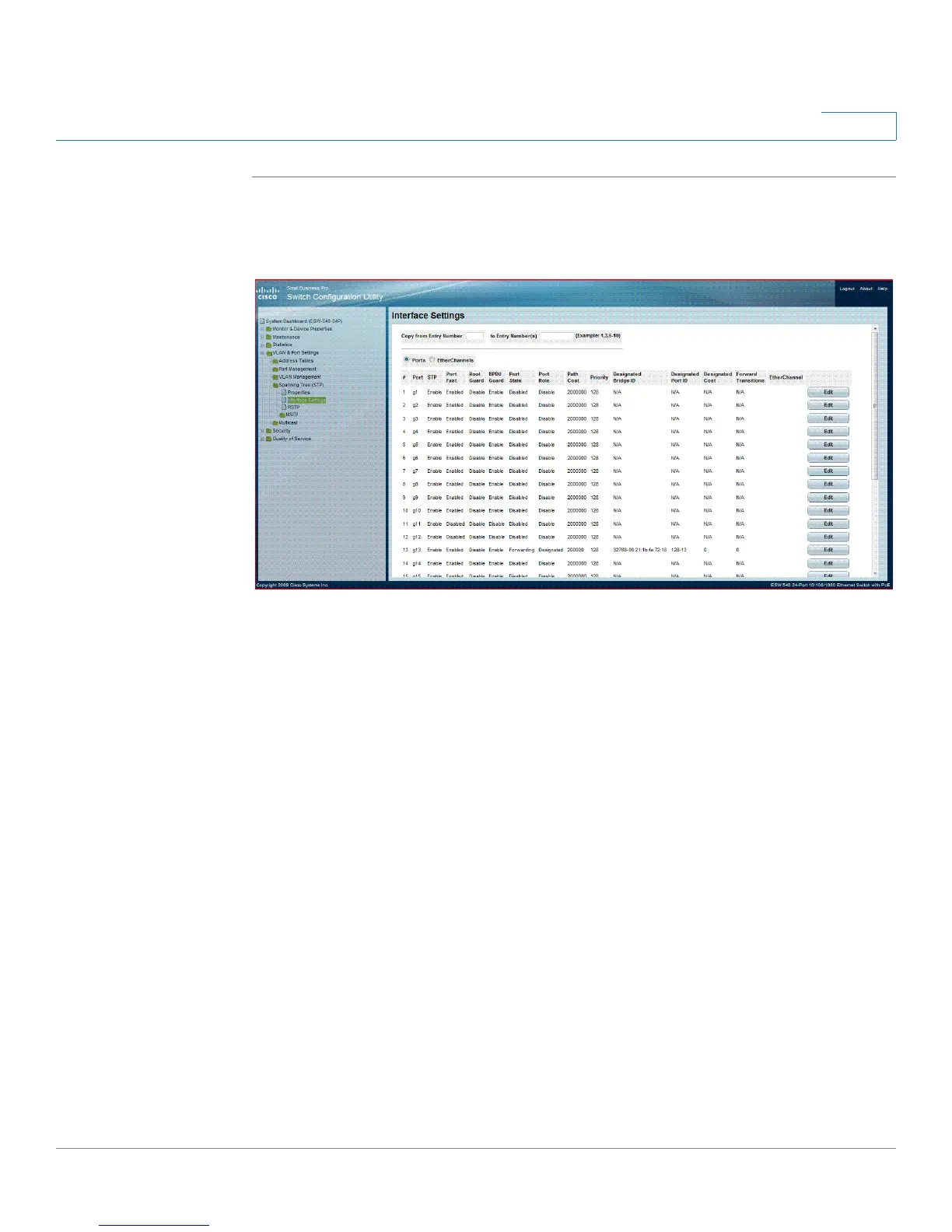

Interface Settings Page
The STP
Interface Settings Page contains the following fields:
• Copy From Entry Number — Indicate the port from which the STP interface
setting are copied.
• To Entry Number(s) — Indicate the port to which the STP interface setting are
copied.
• Interface — Displays the STP Interface settings of device ports.
• Ports — Display the STP Interface settings of device ports.
• EtherChannels — Display the STP Interface settings of device EtherChannels.
• Port — Indicates the port or EtherChannel on which STP is enabled.
• STP — Indicates if STP is enabled on the port. The possible field values are:
- Enable — Indicates that STP is enabled on the port.
- Disables — Indicates that STP is disabled on the port.
• Port Fast — Indicates if Fast Link is enabled on the port. If Fast Link mode is
enabled for a port, the Port State is automatically placed in the Forwarding
state when the port link is up. Fast Link optimizes the STP protocol
