Configuring Quality of Service
Managing QoS Statistics
ESW 500 Series Switches Administration Guide 297
12
STEP 1 Click Quality of Service > QoS Statistics > Queues Statistics. The
Queues
Statistics Page
opens:

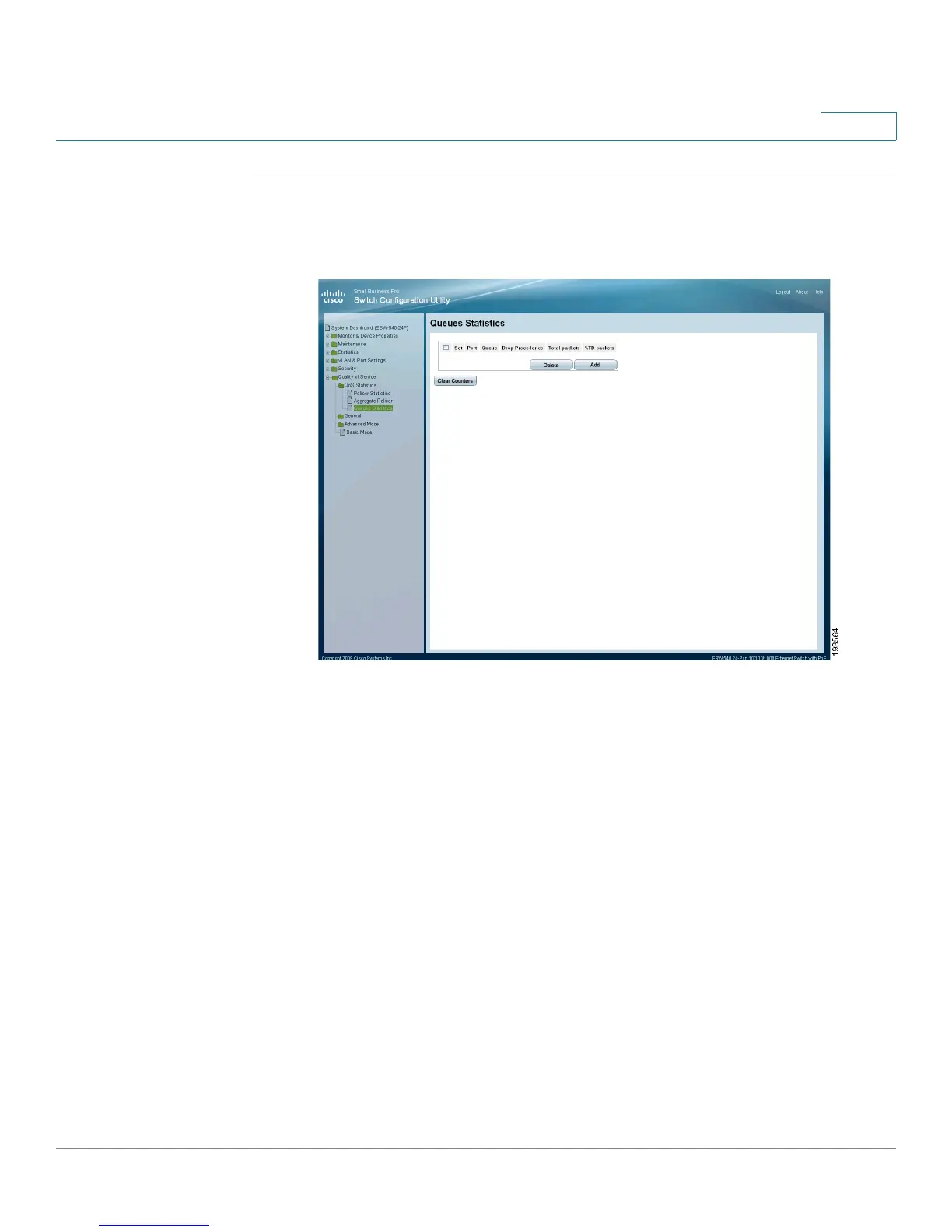

Queues Statistics Page
The Queues Statistics Page contains the following fields:
• Set — Displays the counter set. The possible field values are:
- 1 — Displays the statistics for Set 1. Set 1 contains all interfaces and all
queues with a high DP.
- 2 — Displays the statistics for Set 2. Set 2 contains all interfaces and all
queues with a low DP.
• Port — Displays the port for which the queue statistics are displayed.
• Queue — Displays the queue from which packets were forwarded or tail
dropped.
• Drop Precedence — Displays the drop precedence assigned to the packets
forwarded or tail dropped for which statistics are displayed.
• To t a l p a c k e t s — Displays the total number of packets forwarded or tail
dropped.
• % TD packets — Displays the percentage of packets that were tail dropped.
