Cisco ESW 500 User Manual

Configuring Quality of Service
Defining General Settings
ESW 500 Series Switches Administration Guide 300
12
STEP 1 Click Quality of Service > General > CoS. The CoS Page opens:

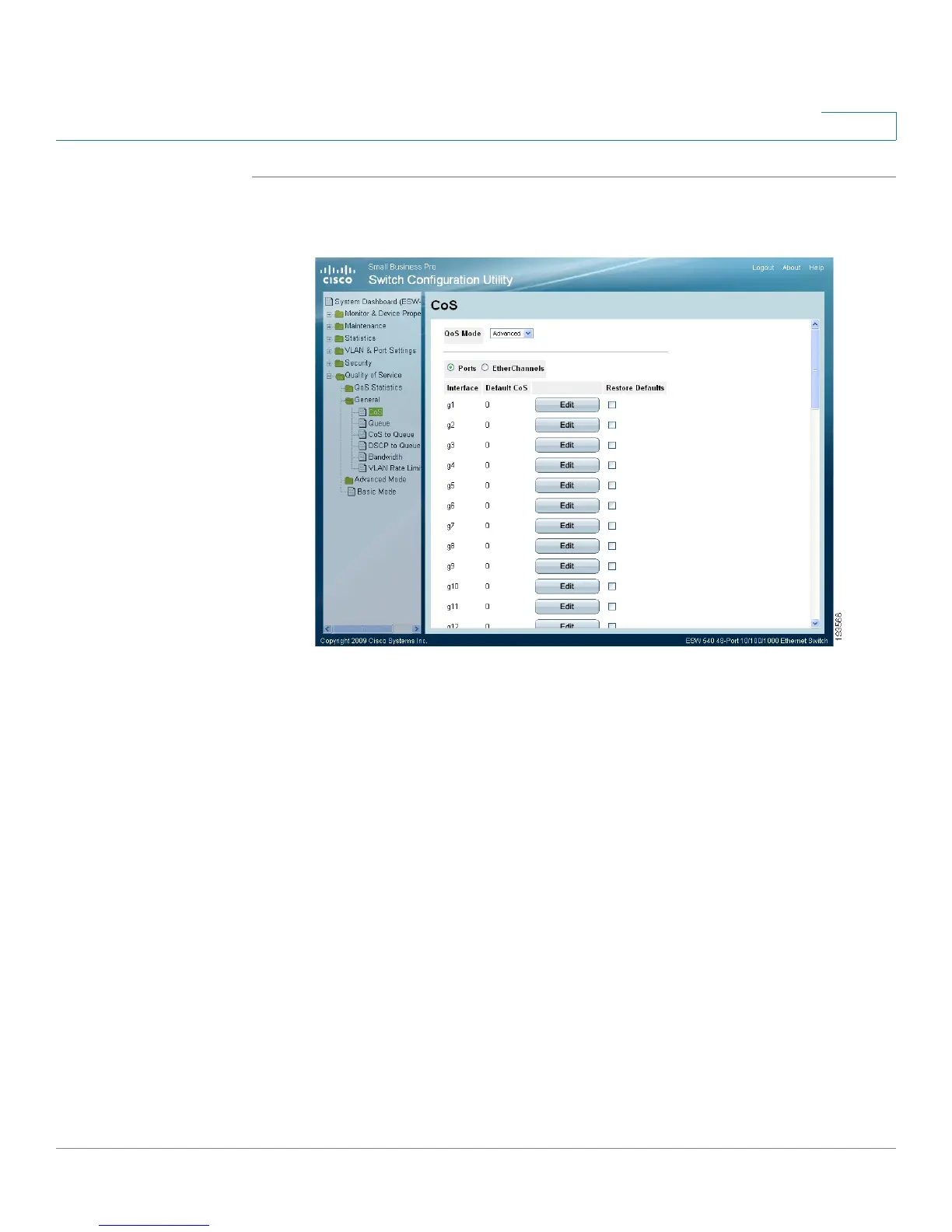

CoS Page
The
CoS Page contains the following fields:
• QoS Mode — Indicates if QoS is enabled on the device. The possible values
are:
- Advanced — Enables Advanced mode QoS on the device.
- Basic — Enables QoS on the device.
- Disable — Disables QoS on the device.
• Ports — Indicates that the CoS configuration of the ports are described in the
page.
• EtherChannels — Indicates that the CoS configuration of the EtherChannels are
described in the page.
• Interface — Indicates the interface for which the CoS information is displayed.
• Default CoS — Displays the default CoS value for incoming packets for which a
VLAN tag is not defined. The possible field values are 0-7. The default CoS is 0.
