Configuring Quality of Service
Defining General Settings
ESW 500 Series Switches Administration Guide 310
12

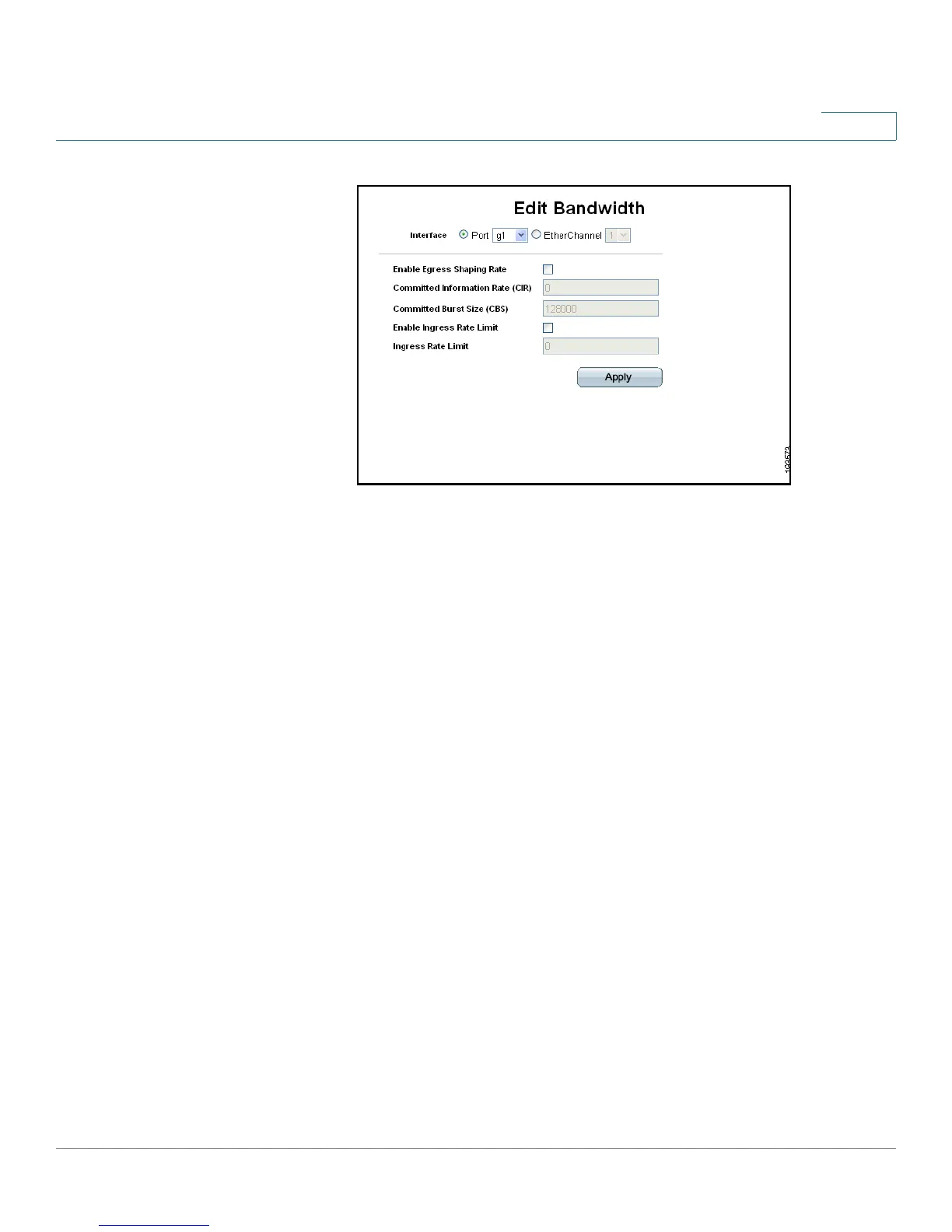

Edit Bandwidth Page
The
Edit Bandwidth Page contains the following fields:
• Interface — Indicates whether the interface, for which bandwidth settings are
edited, is a port or a EtherChannel.
• Enable Egress Shaping Rate — Indicates if shaping is enabled on the interface.
The possible field values are:
- Checked — Enables egress shaping on the interface.
- Unchecked — Disables egress shaping on the interface.
• Committed Information Rate (CIR) — Defines CIR as the queue shaping
type. The possible field values are:
- For FE ports, the rate is 64 - 62,500 Kbps.
- For GE ports, the rate is 64 - 1,000,000 Kbps.
• Committed Burst Size (CbS) — Defines CbS as the queue shaping type. CbS is
supported only on GE interfaces. The possible field value is 4096 - 16,769,020
bytes.
• Enable Ingress Rate Limit — Indicates if rate limiting is defined on the interface.
The possible field values are:
- Checked — Enables ingress rate limiting on the interface.
- Unchecked — Disables ingress rate limiting on the interface.
• Ingress Rate Limit — Defines the amount of bandwidth assigned to the
interface.
