Cisco ESW 500 User Manual

Configuring Quality of Service
Defining Advanced QoS Mode
ESW 500 Series Switches Administration Guide 323
12

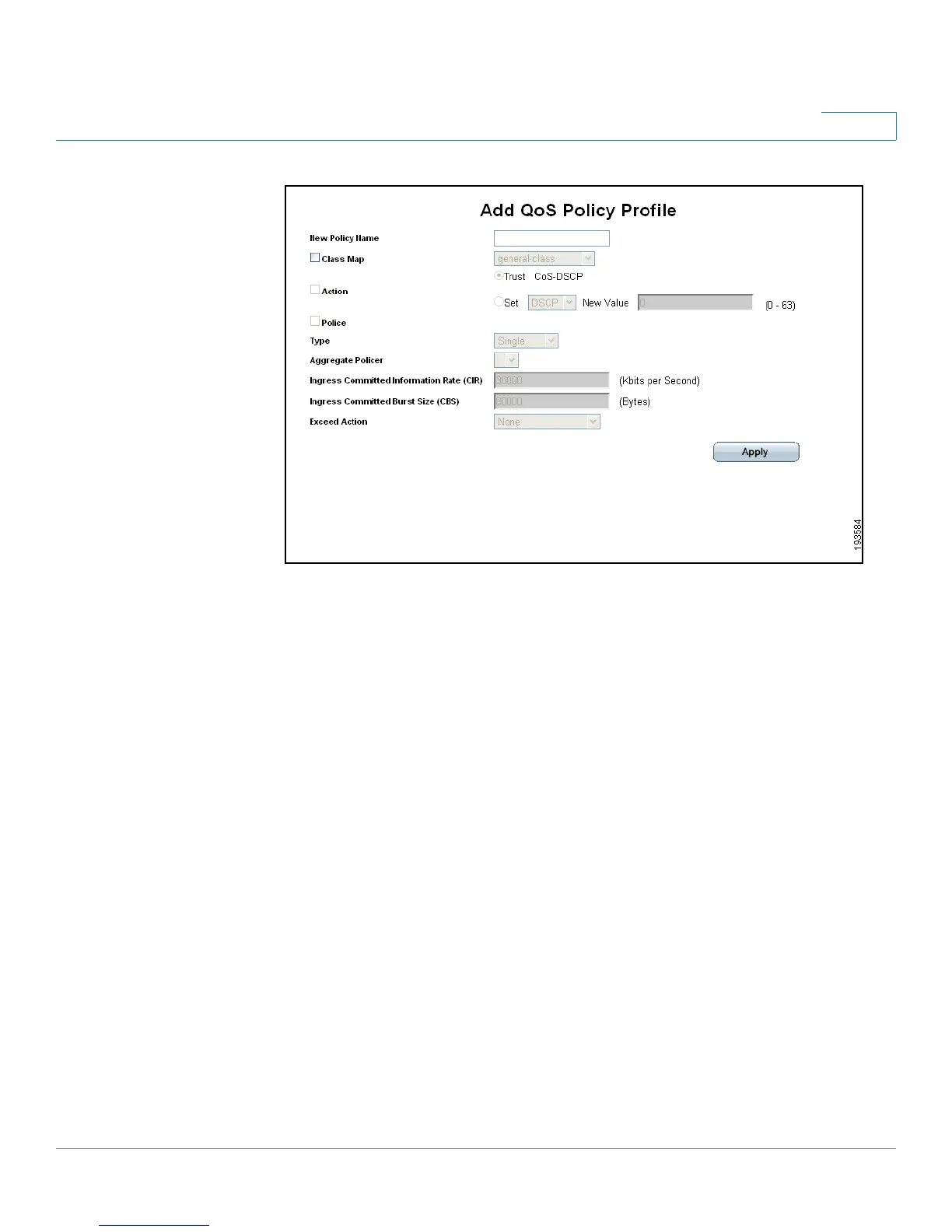

Add QoS Policy Profile Page
The
Add QoS Policy Profile Page contains the following fields.
• New Policy Name — Specifies the user-defined policy name.
• Class Map — Selects the user-defined class maps which can be associated
with the policy.
• Action — Defines the action attached to the rule. The possible field value is:
• Trust CoS-DS CP — Determines the queue to which the packet is assigned
dependent on the CoS tag and DSCP tag.
• Set — Defines the Trust configuration manually. The possible field values
are:
- DSCP — In the New Value box, the possible values are 0-63.
- Queue — In the New Value box, the possible values are 1-4.
- CoS — In the New Value box, the possible values are 0-7.
• Police — Enables Policer functionality.
• Type — Policer type for the policy. Possible values are:
- Aggregate — Configures the class to use a configured aggregate
policer selected from the drop-down list. An aggregate policer is
defined if the policer is shared with multiple classes. Traffic from two
